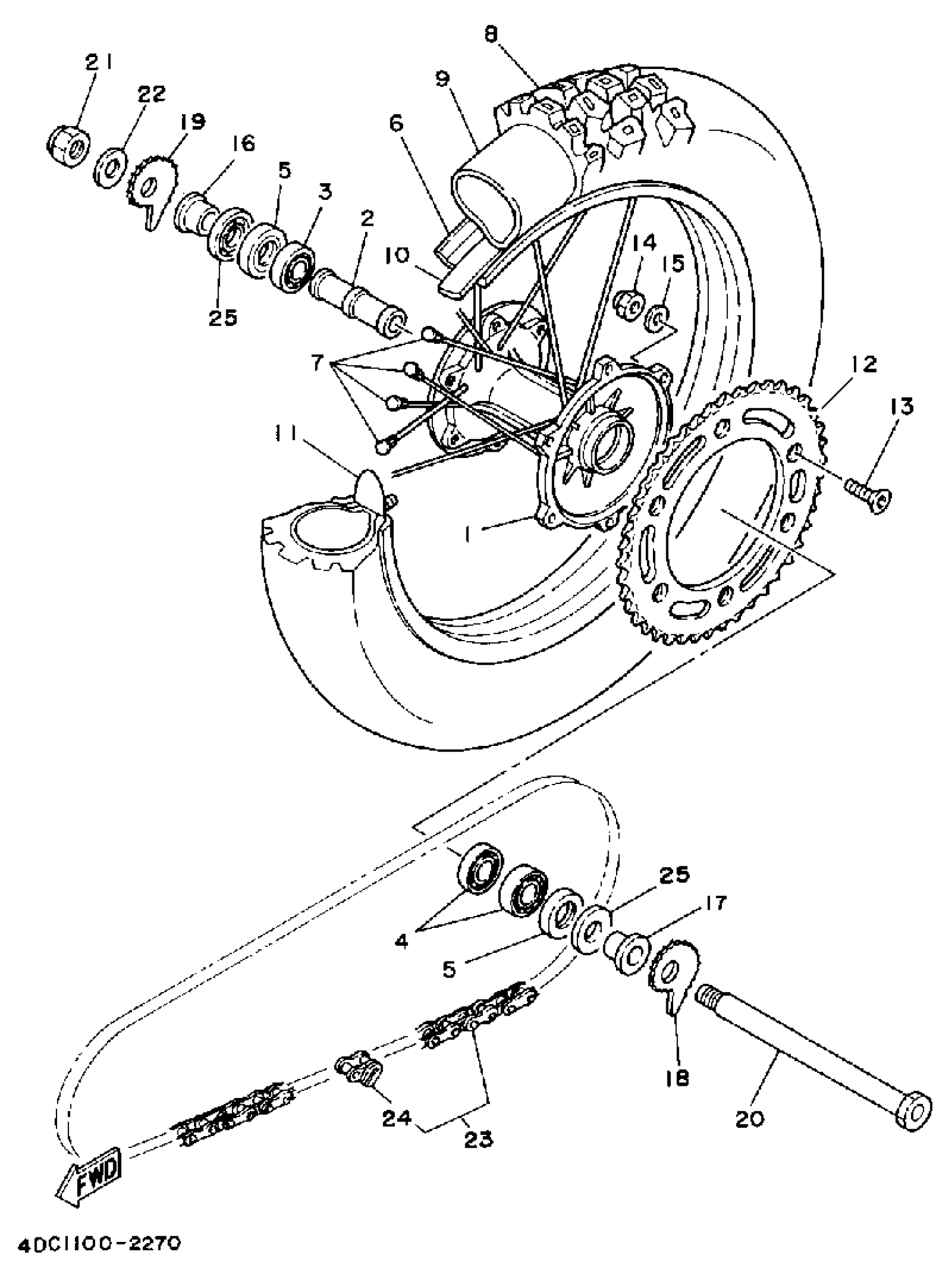

Yamaha WR250ZE (WR250Z) 1993 REAR WHEEL Diagram

#

Description
Price

1

HUB,REAR

4EW-25311-00-00

Unavailable

2

SPACER, BEARING

3JD-25317-01-00

Unavailable

3

BEARING(8AB)

93306-00444-00

$41.99

4

BEARING(3BN)

93306-00438-00

$37.99

5

OIL SEAL(39X)

93106-28023-00

$12.49

6

RIM (2.15-18)

94421-18498-00

Unavailable

7

SPOKE SET, REAR

2VN-25304-00-00

Unavailable

8

TIRE (110/100-18-ED12)

94111-187X9-00

Unavailable

9

TUBE (5A8)

94212-18188-00

$35.99

10

BAND, RIM (2J4)

94340-18086-00

$17.99

11

SPACER, BEAD

39X-25394-00-00

Unavailable

12

SPROCKET, DRIVEN

26A-25444-51-00

Unavailable

12

SPROCKET, DRIVEN

26A-25446-51-00

Unavailable

12

SPROCKET, DRIVEN

26A-25448-51-00

Unavailable

12

SPROCKET, DRIVEN

26A-25450-51-00

Unavailable

12

SPROCKET, DRIVEN (52T)

26A-25452-51-00

Unavailable

13

BOLT(3RB)

90109-081G1-00

Unavailable

14

NUT, U

95617-08100-00

Unavailable

15

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

16

COLLAR

90387-2000B-00

Unavailable

17

COLLAR

90387-2000C-00

Unavailable

18

PULLER, CHAIN 1

3BN-25388-00-00

Unavailable

19

PULLER, CHAIN 2

3BN-25389-00-00

Unavailable

20

AXLE, WHEEL

3XP-25381-00-00

Unavailable

21

NUT, SELF-LOCKING

90185-18009-00

Unavailable

22

WASHER(3JP)

92903-20600-00

Unavailable

23

CHAIN

9Y581-08115-00

Unavailable

24

JOINT, CHAIN

94681-87011-00

Unavailable

25

COVER, HUB DUST

4V4-25367-00-00

Unavailable
