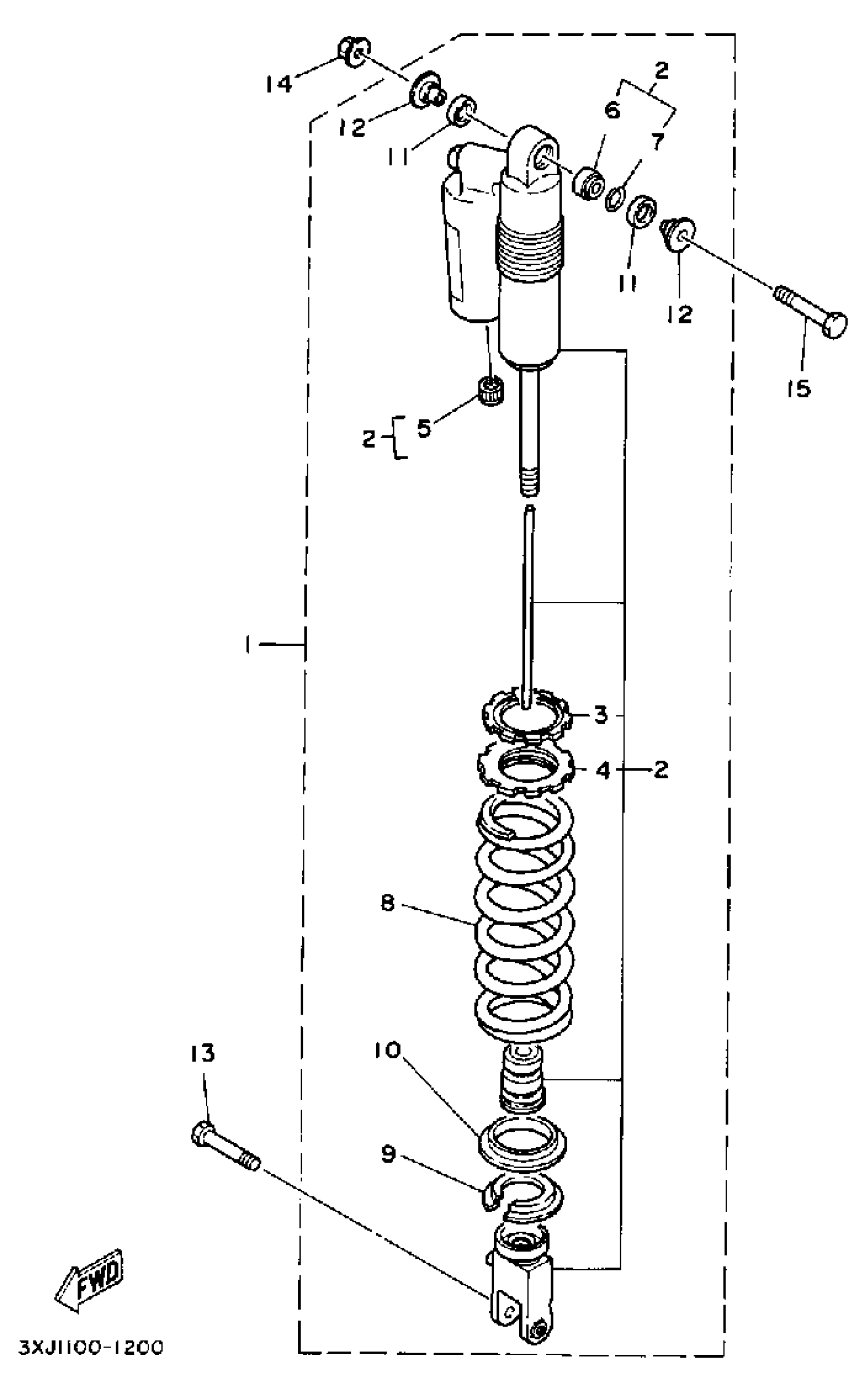

Yamaha WR250ZE (WR250Z) 1993 REAR SHOCKS Diagram

SHK/ABS ASY,REAR

4DC-22210-10-00

Unavailable

. DAMPER SUB ASSEMBLY

4DC-22201-00-00

Unavailable

GUIDE, SPRING 3

3SP-22234-00-00

$43.99

SEAT, SPRING UPPER

3SP-22213-00-00

$46.99

.. CAP, AIR VALVE

24M-23184-00-00

Unavailable

.. BUSH, REAR SHOCK ABSORBER

3JD-22216-00-00

Unavailable

.. RING, STOP

43M-22274-00-00

Unavailable

SPRING (K=4.8)

3XJ-22212-11-00

Unavailable

GUIDE, SPRING 1

3JD-22214-00-00

$28.99

. GUIDE, SPRING 2

3JD-22224-00-00

Unavailable

SEAL, DUST

3JD-22475-00-00

$24.99

. COLLAR, DISTANCE

3XJ-22253-00-00

Unavailable

BOLT, WASHER BASED(3XJ)

90105-10614-00

$12.49

NUT, SELF-LOCKING(JN5)

95607-10200-00

$4.19

BOLT 1

3SP-22241-00-00

Unavailable
