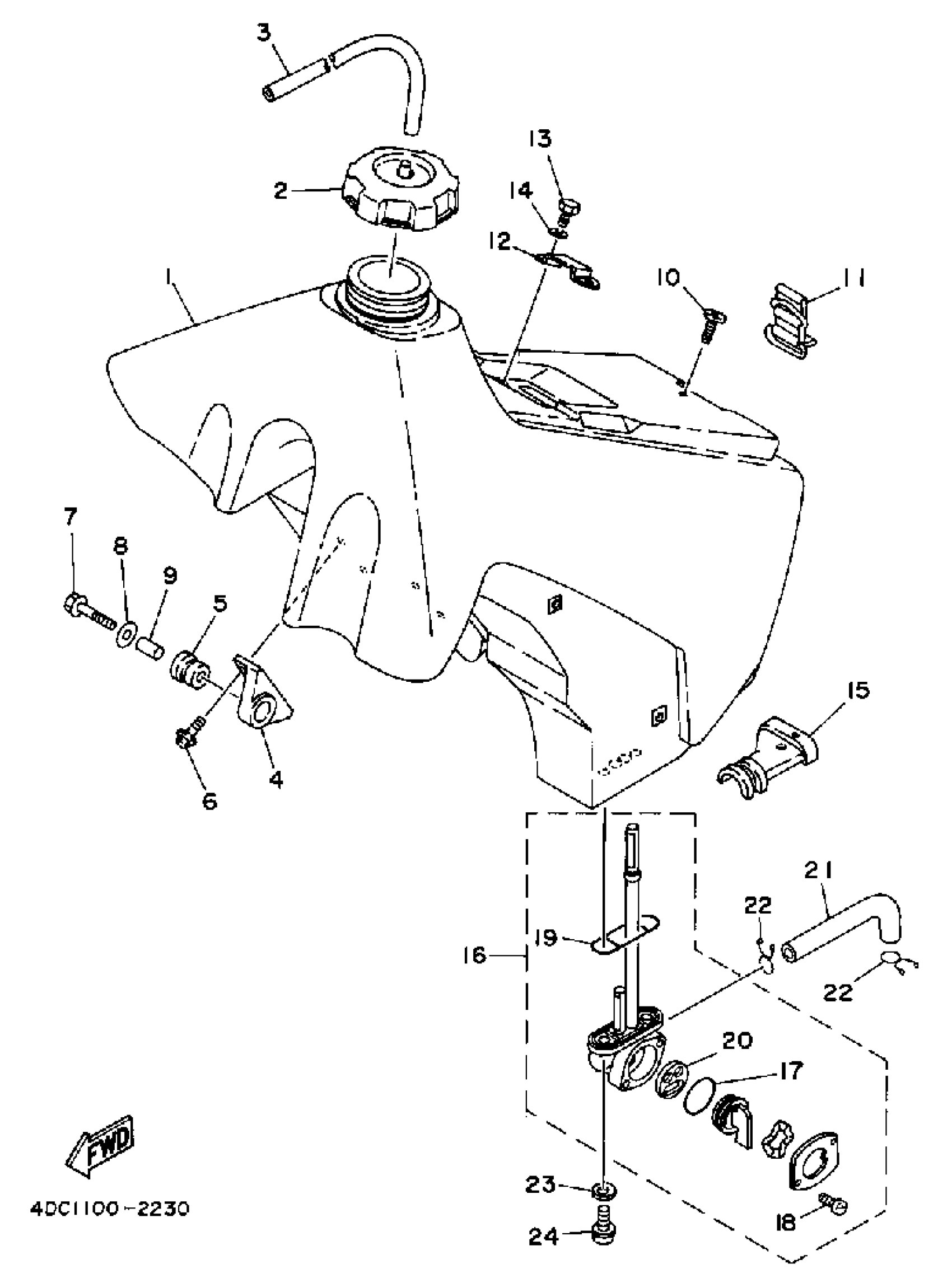

Yamaha WR250ZE (WR250Z) 1993 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

4DC-24110-01-00

Unavailable

2

CAP ASSY

5MV-24610-00-00

$58.99

3

HOSE (L420)

90445-092K1-00

$12.49

4

HOLDER, DAMPER

5XE-24144-00-00

$23.99

5

GROMMET(4AA)

90480-18549-00

$10.49

6

BOLT, FLANGE(2UJ)

95024-06016-00

$8.49

7

BOLT, FLANGE(4BH)

95024-06035-00

$9.49

8

WASHER, PLATE (J10)

90201-06697-00

$8.49

9

COLLAR 849833160000

90387-06027-00

$8.49

10

SCREW, BIND (J17)

98980-06020-00

$8.49

11

BAND, TANK FITTING 1

3SP-24173-00-00

$22.99

12

BRACKET, SEAT

5X6-2412F-00-00

Unavailable

13

BOLT (661)

97013-06012-00

$5.60

14

WASHER, SPRING

92995-06100-00

Unavailable

15

DAMPER, LOCATING 1

1LX-24181-00-00

Unavailable

16

FUEL COCK ASSEMBLY 1

4AA-24500-00-00

Unavailable

17

SEAL, COCK

3AJ-24534-01-00

Unavailable

18

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

19

O-RING

4X8-24512-00-00

Unavailable

20

VALVE PACKING

3AC-24523-00-00

Unavailable

21

PIPE 3

25H-24313-00-00

Unavailable

22

CLIP

90467-100A1-00

Unavailable

23

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

24

SCREW 256241430000

90149-06011-00

Unavailable
