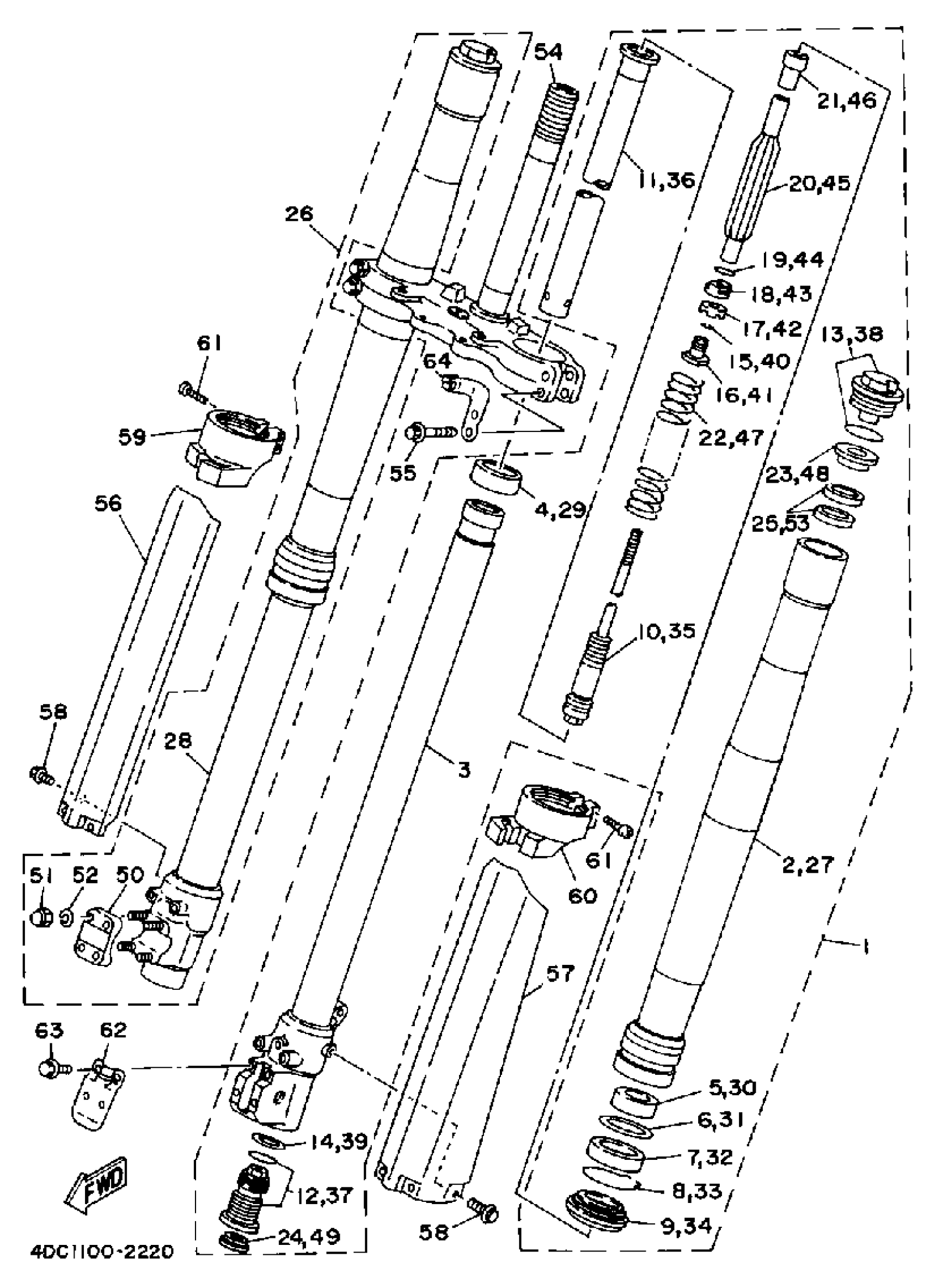

Yamaha WR250ZE (WR250Z) 1993 FRONT FORK Diagram

#

Description
Price

1

FRONT FRK ASSEMBLY (L.H) (L.H)

4DC-23102-M0-00

Unavailable

2

TUBE, OUTER 2

4DA-23136-L0-00

Unavailable

3

. INNER TUBE COMP 2

4DA-23120-L0-00

Unavailable

4

PISTON, FRONT FORK

5EB-23171-00-00

$34.99

5

METAL, SLIDE 1

5EB-23125-00-00

$32.99

6

WASHER

4V4-23146-L0-00

$6.99

7

OIL SEAL

3XJ-23145-L0-00

$32.99

8

RING, SNAP

4V4-23153-L0-00

$9.99

9

SEAL, DUST

4PU-23144-00-00

$24.99

10

. PISTON ROD ASSEMBLY

4DA-2314A-L0-00

Unavailable

11

. CYLDR COMP, FRTFKFRONT FORK

4DA-23170-L0-00

Unavailable

12

. VALVE COMP

4DC-2316A-M0-00

Unavailable

13

. BOLT, CAP

4DA-23111-L0-00

Unavailable

14

GASKET

2HH-23158-L0-00

$10.99

15

. RING, SNAP

3XJ-23153-L0-00

Unavailable

16

. COLLAR

3XJ-23113-L0-00

Unavailable

17

. SPACER, OIL LOCK

3XJ-23166-L0-00

Unavailable

18

. NUT

3XJ-23778-L0-00

Unavailable

19

. O-RING

36Y-23147-10-00

Unavailable

20

. SEAT, SPRING UPPER

3XJ-23142-L0-00

Unavailable

21

. NUT

4DA-23778-L0-00

Unavailable

22

. SPRING, FRT FRK 39FRONT FORK (K=0390)

4DA-23141-L0-00

Unavailable

23

. SEAT, SPRING LOWER

3XJ-23143-L0-00

Unavailable

24

PLUG

3JD-2312G-L0-00

Unavailable

25

COLLAR 2

3XJ-23364-L0-00

Unavailable

26

FRONT FRK ASSEMBLY (R.H)

4DC-23103-M0-00

Unavailable

27

TUBE, OUTER 2

4DA-23136-L0-00

Unavailable

28

. INNER TUBE COMP 1

4DA-23110-L0-00

Unavailable

29

PISTON, FRONT FORK

5EB-23171-00-00

$34.99

30

METAL, SLIDE 1

5EB-23125-00-00

$32.99

31

WASHER

4V4-23146-L0-00

$6.99

32

OIL SEAL

3XJ-23145-L0-00

$32.99

33

RING, SNAP

4V4-23153-L0-00

$9.99

34

SEAL, DUST

4PU-23144-00-00

$24.99

35

. PISTON ROD ASSEMBLY

4DA-2314A-L0-00

Unavailable

36

. CYLDR COMP, FRTFKFRONT FORK

4DA-23170-L0-00

Unavailable

37

. VALVE COMP

4DC-2316A-M0-00

Unavailable

38

. BOLT, CAP

4DA-23111-L0-00

Unavailable

39

GASKET

2HH-23158-L0-00

$10.99

40

. RING, SNAP

3XJ-23153-L0-00

Unavailable

41

. COLLAR

3XJ-23113-L0-00

Unavailable

42

. SPACER, OIL LOCK

3XJ-23166-L0-00

Unavailable

43

. NUT

3XJ-23778-L0-00

Unavailable

44

. O-RING

36Y-23147-10-00

Unavailable

45

. SEAT, SPRING UPPER

3XJ-23142-L0-00

Unavailable

46

. NUT

4DA-23778-L0-00

Unavailable

47

. SPRING, FRT FRK 39FRONT FORK (K=0390)

4DA-23141-L0-00

Unavailable

48

. SEAT, SPRING LOWER

3XJ-23143-L0-00

Unavailable

49

PLUG

3JD-2312G-L0-00

Unavailable

50

. HOLDER, AXLE

4EW-23167-L0-00

Unavailable

51

NUT

5Y3-23393-00-00

Unavailable

52

WASHER, SPRING

92995-06100-00

Unavailable

53

COLLAR 2

3XJ-23364-L0-00

Unavailable

54

UNDER BRACKET COMP

4DA-23340-L0-00

Unavailable

55

BOLT, FLANGE(4KG)

95024-08040-00

Unavailable

56

PROTECTER COMP., 2

4MX-2314J-L0-00

Unavailable

57

PROTECTER COMP., 1

4MX-2314H-L1-00

Unavailable

58

BOLT 2

3SP-23356-L0-00

Unavailable

59

PROTECTER GUIDE COMP., 2

4MX-2314G-L0-00

Unavailable

60

PROTECTER GUIDE COMP., 1

4MX-2314F-L0-00

Unavailable

61

SCREW, PAN HEAD

98517-04025-00

Unavailable

62

COVER, HOSE

3SP-2314E-L0-00

Unavailable

63

BOLT, FLANGE(3BM)

95024-06008-00

Unavailable

64

GUIDE, CABLE

4EW-2331E-L1-00

Unavailable
