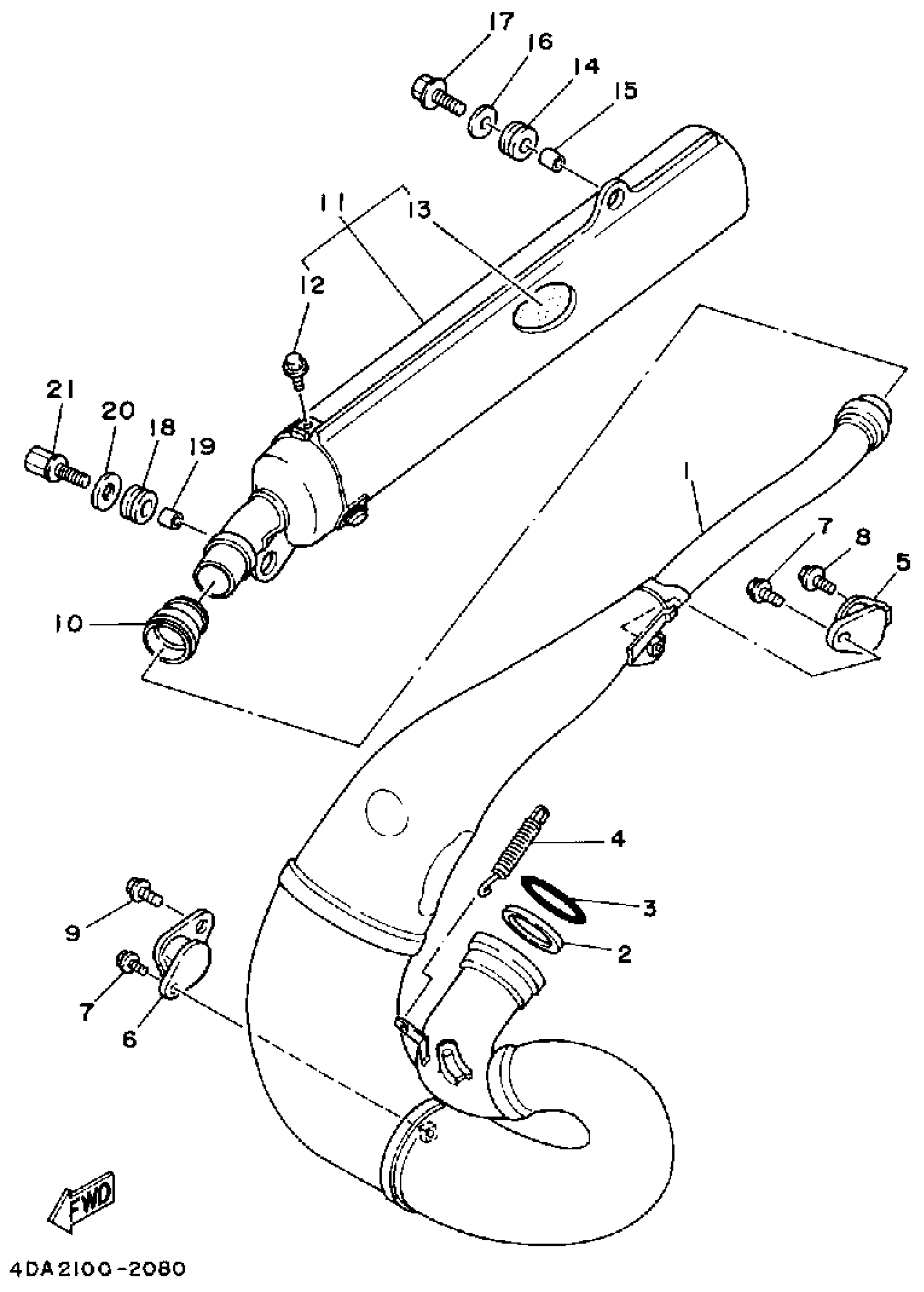

Yamaha WR250ZE (WR250Z) 1993 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

4DA-14610-00-00

Unavailable

2

GASKET, EXHAUST

3R4-14613-00-00

$25.62

3

O-RING(2HH)

93210-56743-00

$12.96

4

SPRING, TENSION (1W4)

90507-20030-00

$11.73

5

STAY, MUFFLER 1

565-14771-01-00

$15.57

6

STAY, MUFFLER 2

483-14781-03-00

Unavailable

7

BOLT, FLANGE(2UJ)

95024-06012-00

$3.43

8

BOLT, FLANGE(2UJ)

95024-06010-00

$3.93

9

BOLT, FLANGE(2UJ)

95024-08012-00

$5.75

10

JOINT, EXHAUST 1

3JE-14615-01-00

$45.52

11

SILENCER,EXHAUST

3XK-14753-00-00

Unavailable

12

BOLT, FLANGE(3BM)

95024-06008-00

$7.45

13

. FIBER

3XK-1469A-10-00

Unavailable

14

DAMPER, MUFFLER

39X-14747-00-00

Unavailable

15

COLLAR

90387-081A3-00

Unavailable

16

WASHER, PLATE (1A0)

90201-08612-00

Unavailable

17

BOLT, FLANGE (3JPE)

95024-08030-00

$9.99

18

GROMMET (2N3)

90480-16233-00

Unavailable

19

COLLAR

90387-06113-00

Unavailable

20

WASHER, PLATE

90201-06747-00

Unavailable

21

BOLT

90109-064F4-00

Unavailable
