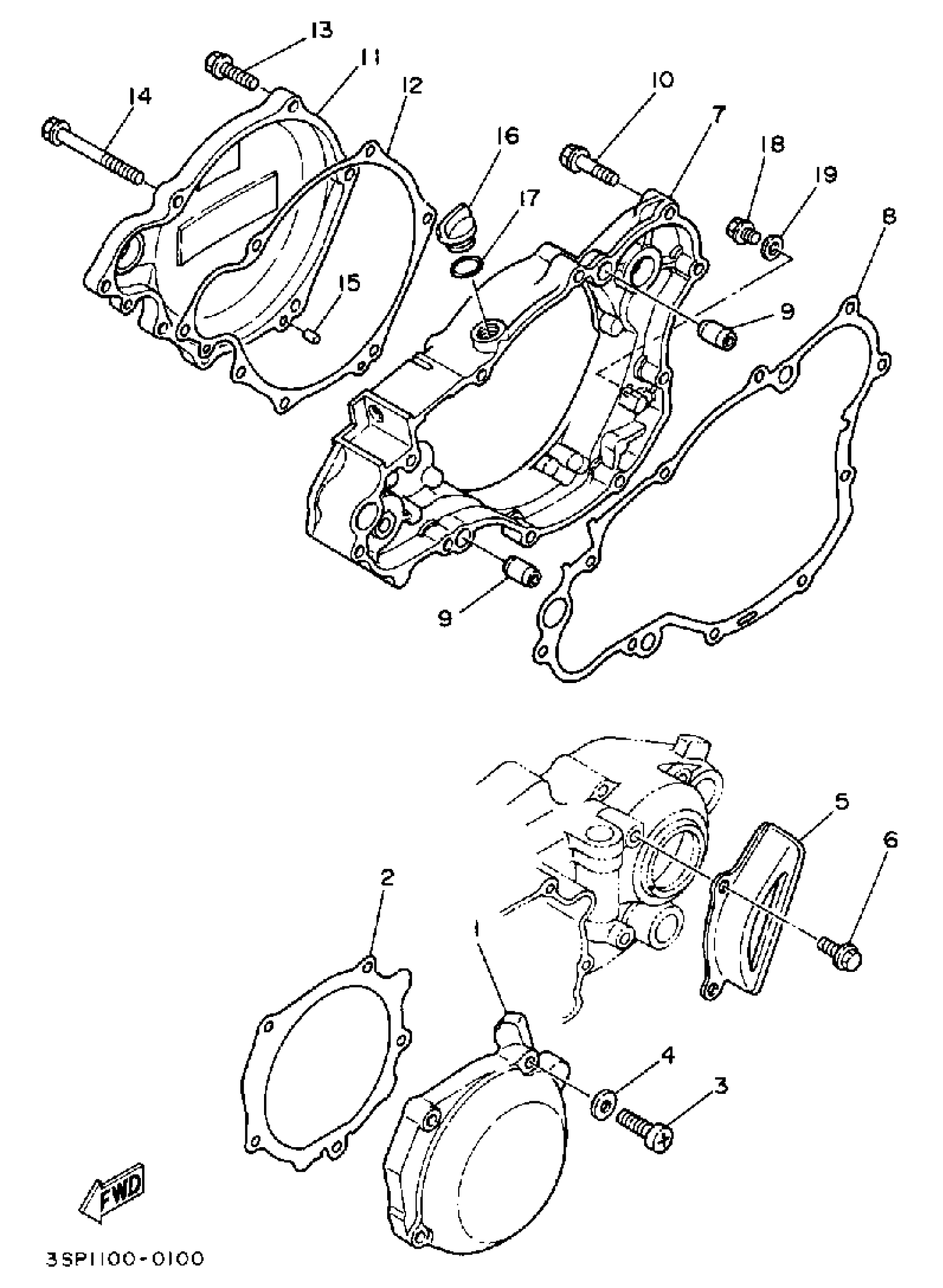

Yamaha WR250ZE (WR250Z) 1993 CRANKCASE COVER 1 Diagram

COVER, CRANKCASE 1

2VM-15411-00-00

Unavailable

GASKET, CRANKCASE COVER 1

2VM-15451-11-00

$19.99

SCREW, PAN HEAD(6E0)

97885-06030-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$2.80

COVER, CRANKCASE 2

2VM-15421-02-00

Unavailable

BOLT, FLANGE(2UJ)

95024-06012-00

$4.41

COVER, CRANKCASE 3

3SP-Y1543-00-00

Unavailable

GASKET, CRANKCASE COVER 3

2VM-15462-11-00

Unavailable

PIN, DOWEL

99530-12016-00

$4.89

BOLT, FLANGE(4AS)

95024-06030-00

$8.49

COVER, GENERATOR

4EW-15415-00-00

Unavailable

GASKET, CARBURETOR COVER 2

3SP-15463-11-00

$34.99

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

BOLT, SMALL FLANGE

95027-06070-00

$2.49

PIN,DOWEL (603)

93604-10011-00

$8.49

PLUG, OIL LEVEL

1G8-15362-00-00

Unavailable

O-RING (26H)

93210-14579-00

Unavailable

BOLT, FLANGE(3BM)

95024-06008-00

Unavailable

GASKET 838153840000

90430-06016-00

Unavailable
