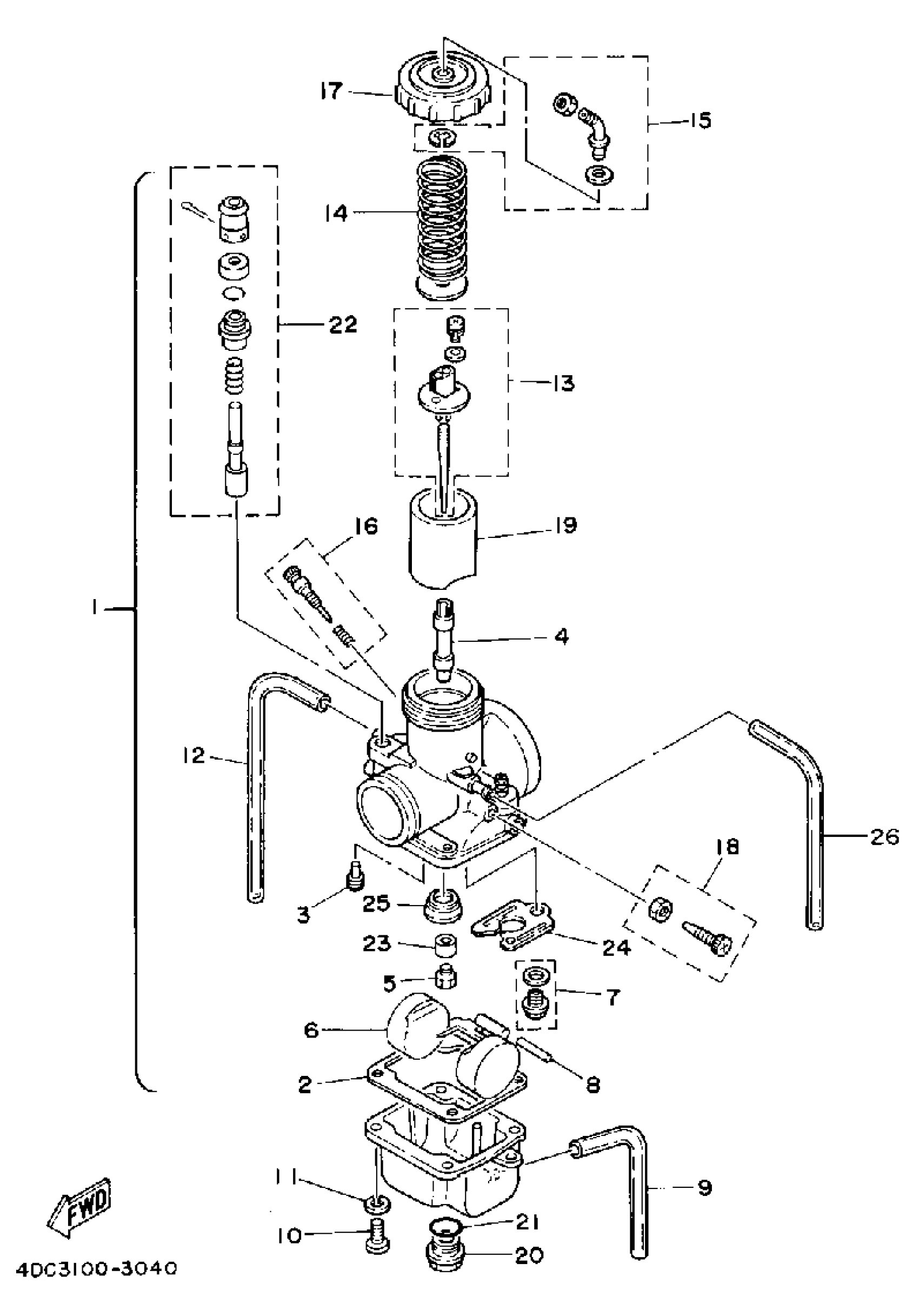

Yamaha WR250ZE (WR250Z) 1993 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

4DC-14101-00-00

Unavailable

2

GASKET, FLOAT CHAMBER BODY

363-14184-00-00

$25.99

3

JET, PIL0T(# 35)

193-14142-35-00

$9.99

3

. JET, PILOT #40

193-14142-40-A1

Unavailable

3

. JET, PILOT (#45)

193-14142-45-A1

Unavailable

4

. NOZZLE, MAIN

510-14141-R0-00

Unavailable

4

. NOZZLE, MAIN

510-14141-R2-00

Unavailable

4

. NOZZLE, MAIN

510-14141-R4-00

Unavailable

5

JET,MAIN #350

137-14143-70-00

$6.99

5

JET,MAIN #360

137-14143-72-00

$6.99

5

JET,MAIN #370

137-14143-74-00

$7.99

6

FLOAT

2N7-14185-00-00

$85.99

7

NEEDLE VALVE SET

23X-14107-35-00

$45.99

8

PIN, FLOAT

537-14186-00-00

$7.99

9

. PIPE (43214-19700-00)

510-14197-00-00

Unavailable

10

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

11

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

12

PIPE, OVER FLOW

2J2-14196-00-00

Unavailable

13

. NEEDLE SET

23X-1490J-00-00

Unavailable

14

. SPRING, THROTTLE VALVE

431-14131-00-00

Unavailable

15

. CABLE ADJUST SCREW SET

23X-14106-00-00

Unavailable

16

AIR SCREW SET

23X-14104-00-00

Unavailable

17

. TOP, MIXING CHAMBER

5Y9-14158-00-00

Unavailable

18

THROTTLE SCREW SET

23X-14103-00-00

Unavailable

19

. VALVE, THROTTLE 1

2X8-14112-35-00

Unavailable

19

. VALVE, THROTTLE 1

2X8-14112-40-00

Unavailable

19

. VALVE, THROTTLE 1

2X8-14112-45-00

Unavailable

20

. PLUG, SCREW

510-14115-00-00

Unavailable

21

O-RING (541)

558-14147-00-00

Unavailable

22

. STARTER SET

24X-1410A-00-00

Unavailable

23

. WASHER, MAIN JET

5X5-14153-00-00

Unavailable

24

. PLATE

3R4-14146-00-00

Unavailable

25

. SETTER, NEEDLE JET

509-14145-00-00

Unavailable

26

HOSE

8AX-14987-00-00

Unavailable
