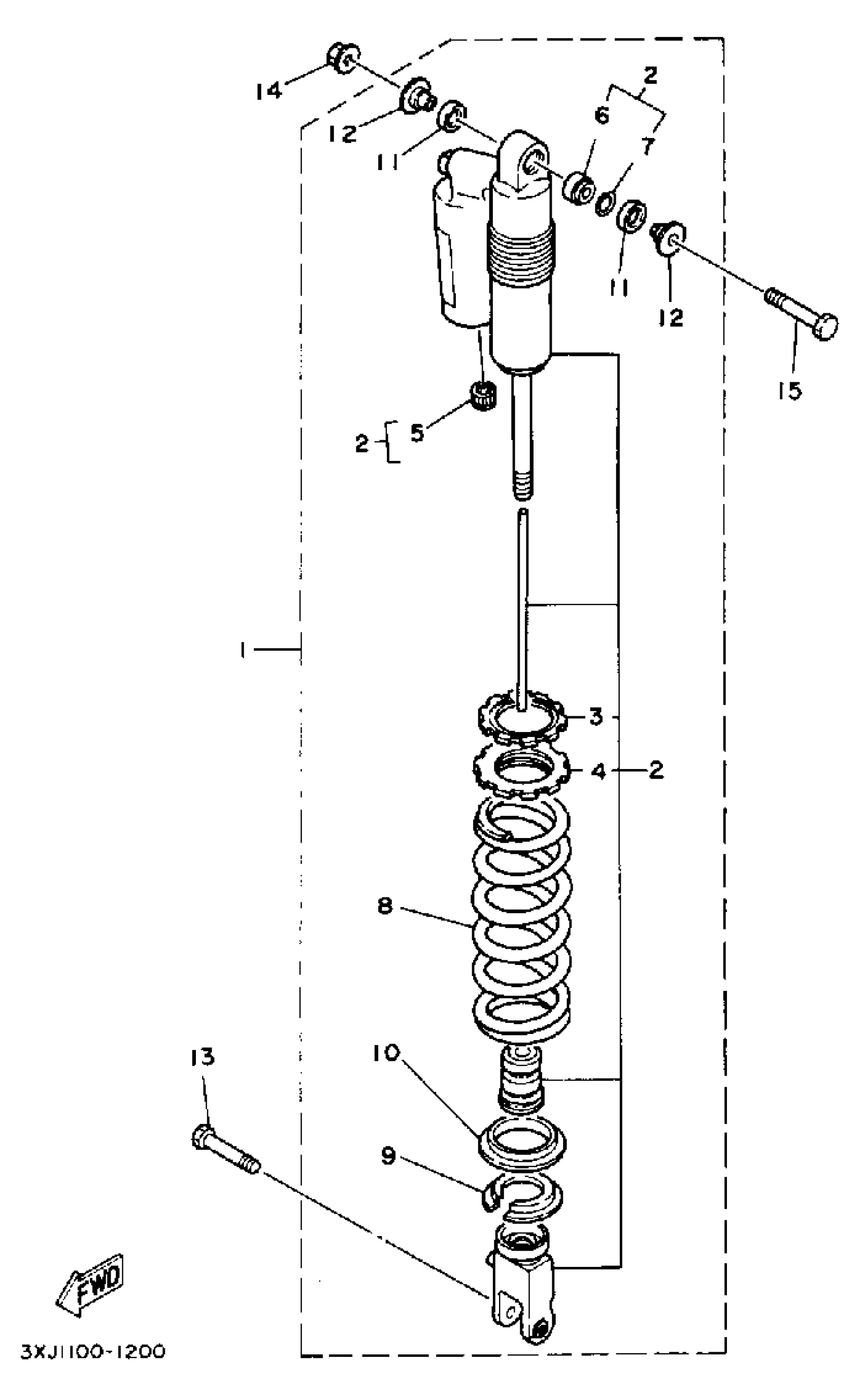

Yamaha WR250ZD (WR250Z) 1992 REAR SHOCKS Diagram

#

Description
Price

1

SHK/ABS ASY,REAR

4DC-22210-10-00

Unavailable

2

. UNAVAILABLE IN PRICE BOOK

4D-C2220-10-00

Unavailable

2

DAMPER SUB ASSEMBLY

(4DC-22201-10-00)

Unavailable

3

GUIDE, SPRING 3

3SP-22234-00-00

$40.48

4

SEAT, SPRING UPPER

3SP-22213-00-00

$41.32

5

.. CAP, AIR VALVE

24M-23184-00-00

Unavailable

6

.. BUSH, REAR SHOCK ABSORBER

3JD-22216-00-00

Unavailable

7

.. RING, STOP

43M-22274-00-00

Unavailable

8

SPRING (K=4.8)

3XJ-22212-11-00

Unavailable

9

GUIDE, SPRING 1

3JD-22214-00-00

$14.88

10

. GUIDE, SPRING 2

3JD-22224-00-00

Unavailable

11

SEAL, DUST

3JD-22475-00-00

$20.42

12

. COLLAR, DISTANCE

3XJ-22253-00-00

Unavailable

13

BOLT, WASHER BASED(3XJ)

90105-10614-00

$8.88

14

NUT, SELF-LOCKING(JN5)

95607-10200-00

$3.17

15

BOLT 1

3SP-22241-00-00

Unavailable
