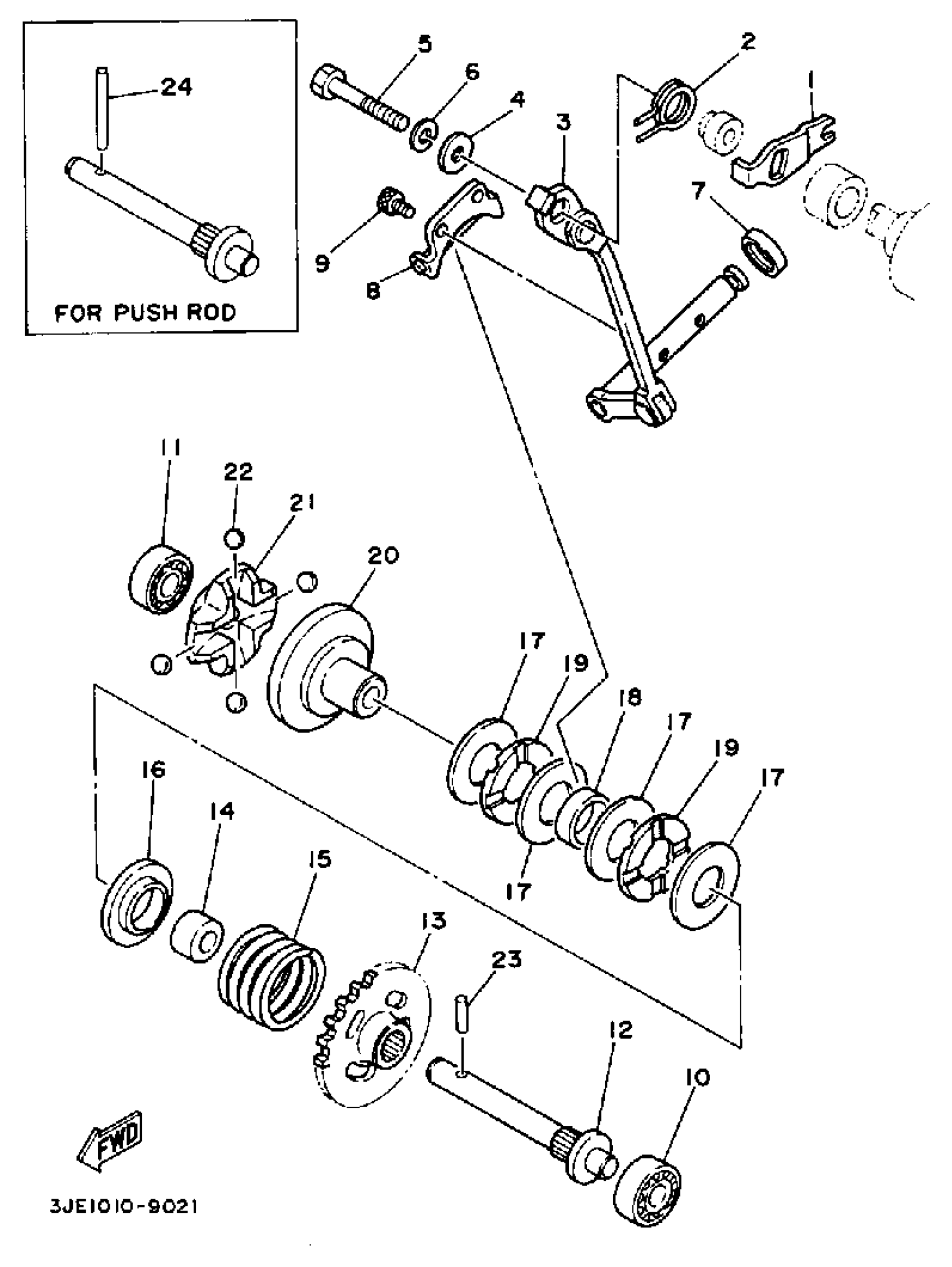

Yamaha WR250ZD (WR250Z) 1992 GOVERNOR Diagram

#

Description
Price

1

LEVER

3JE-11931-01-00

$20.57

2

SPRING, TORSION(3JE)

90508-14783-00

$7.93

3

PUSH ROD ASSEMBLY

3SP-11990-00-00

Unavailable

4

WASHER, PLATE(39X)

90201-057H5-00

$2.86

5

BOLT(4MX)

97017-05030-00

$6.58

6

YBS67-5 WASHER, SPRING

92990-05100-00

$1.49

7

OIL SEAL (8X12X3-371)

93104-08040-00

$11.65

8

FORK, GOVERNOR

3JE-11922-01-00

$36.04

9

BOLT, SOCKET

91317-04006-00

$6.59

10

BEARING

93300-60801-00

$19.91

11

BEARING

93300-60801-00

$19.91

12

SHAFT, GOVERNOR

5X4-11921-02-00

$49.12

13

GEAR, GOVERNOR

24X-11953-01-00

Unavailable

14

SPACER (5X4)

90560-08213-00

$12.00

15

SPRING, COMPRESSION

90501-240F4-00

Unavailable

16

PLATE

5X4-11952-00-00

Unavailable

17

WASHER, PLATE (5G3)

90201-154E9-00

Unavailable

18

COLLAR (5X4)

90387-152F2-00

Unavailable

19

BEARING, THRUST (713)

93340-21505-00

Unavailable

20

RETAINER, WEIGHT

5X5-11912-01-00

Unavailable

21

RETAINER

5X5-11911-01-00

Unavailable

22

BALL (5X4)

93521-64032-00

Unavailable

23

PIN, DOWEL (5X4)

93603-14179-00

Unavailable

24

PIN, DOWEL

93604-29184-00

Unavailable
