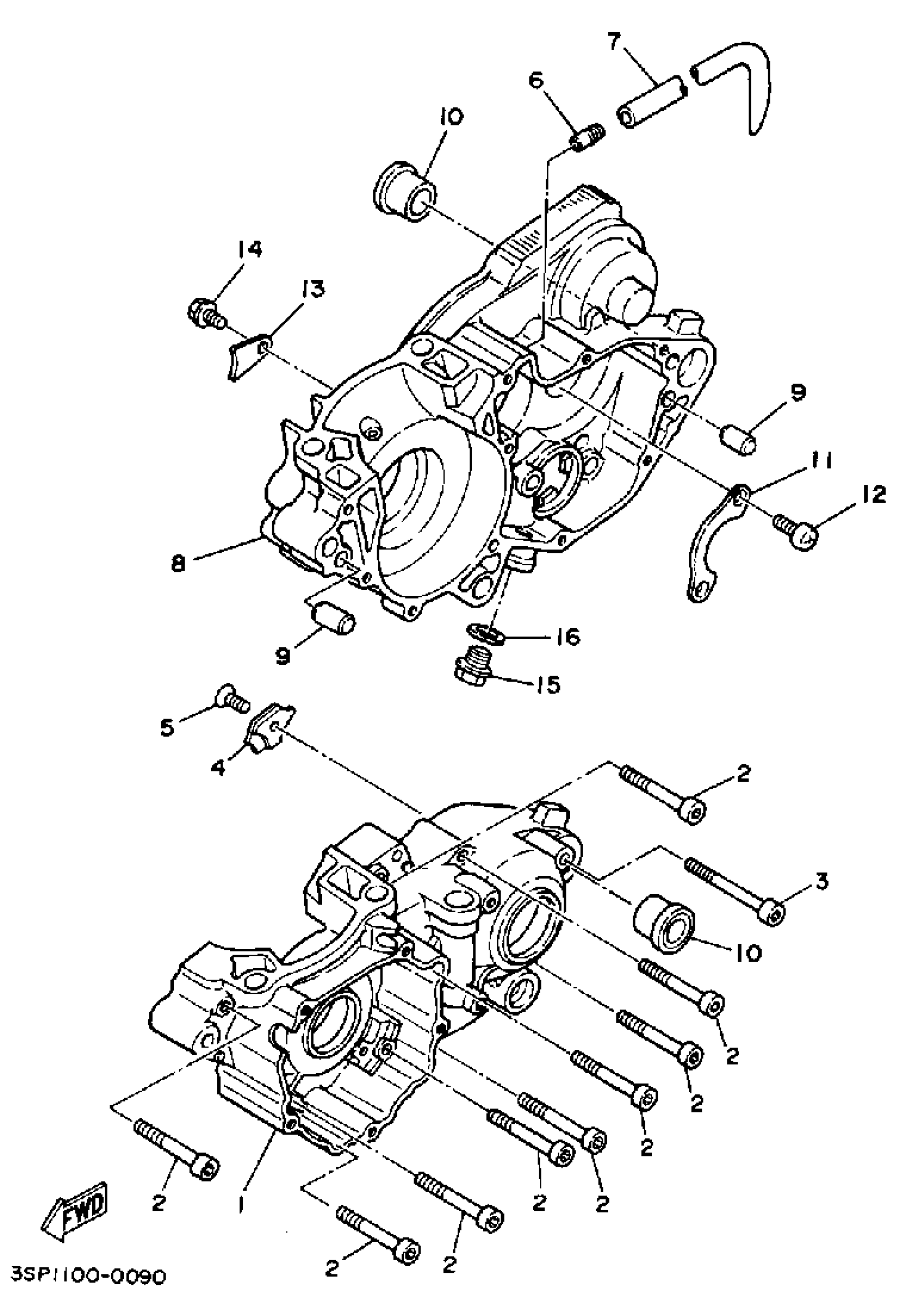

Yamaha WR250ZD (WR250Z) 1992 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE 1

2VM-15111-06-00

Unavailable

2

BOLT,SOCKET

91317-06050-00

$3.20

3

BOLT, SOCKET

91317-06070-00

$3.30

4

PLATE, BEARING COVER

3SP-15381-00-00

Unavailable

5

SCREW, FLAT

98707-06012-00

$5.88

6

CONNECTOR, SUCTION PIPE

353-13115-01-00

$5.01

7

HOSE (L1500)

90445-084J0-00

$20.99

8

CRANKCASE 2

2VM-15121-03-00

Unavailable

9

PIN, DOWEL

99530-12016-00

$3.93

10

COLLAR

90387-160H4-00

Unavailable

11

PLATE, COVER

4L0-17471-00-00

$17.38

12

SCREW, PAN HEAD(62J)

97885-06012-00

$2.88

13

HOLDER

4V4-15118-00-00

$24.20

14

BOLT, FLANGE

95812-06010-00

$2.60

15

PLUG, STRAIGHT SCREW (22F)

90340-12097-00

$2.77

16

GASKET (3JD1)

90430-12207-00

Unavailable
