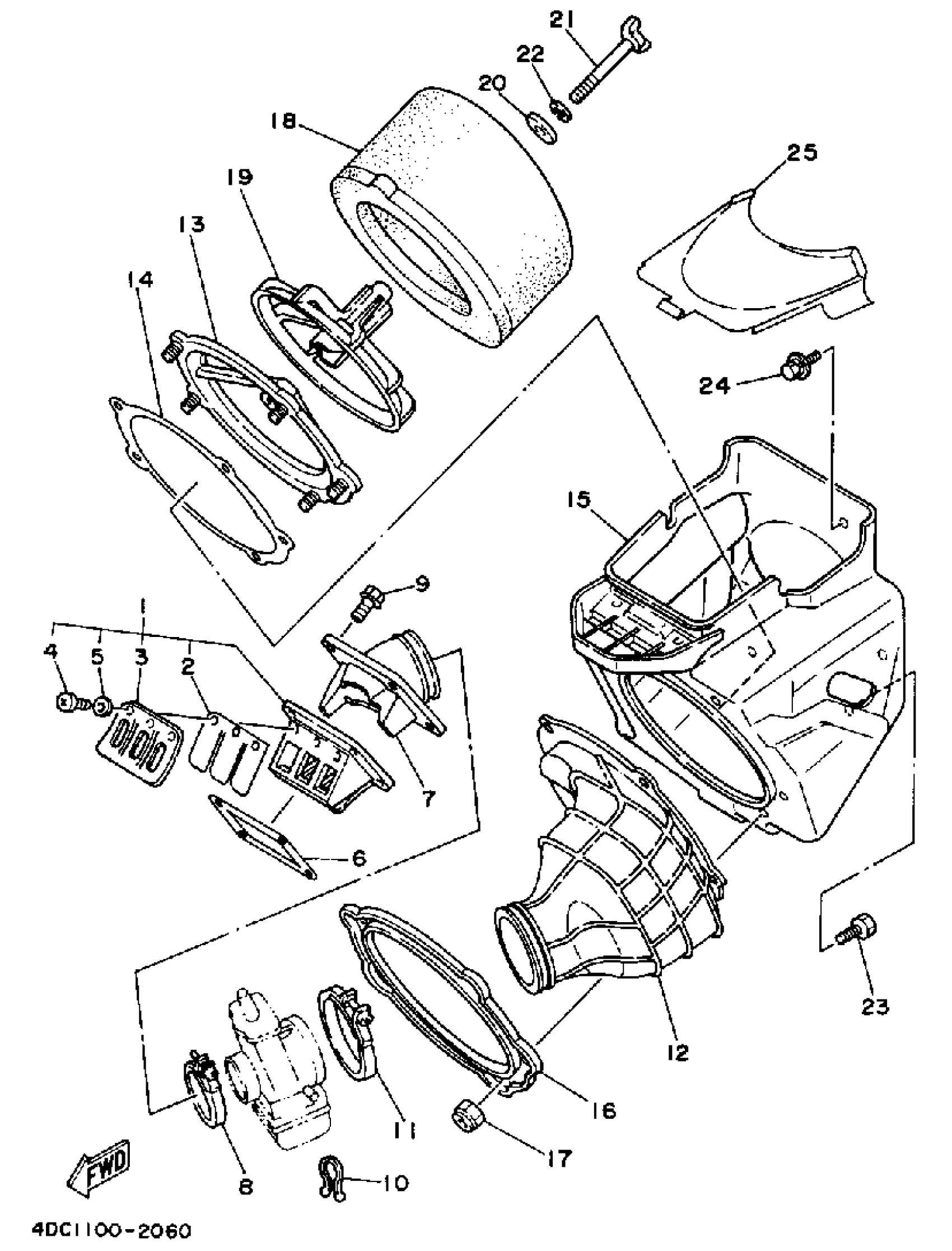

Yamaha WR250ZD (WR250Z) 1992 AIR FILTER Diagram

#

Description
Price

1

REED VALVE ASY

4DC-13610-00-00

Unavailable

2

REED, VALVE

3SP-13613-01-00

$25.64

3

STOPPER, REED VALVE

8DJ-13616-00-00

$15.30

4

SCREW, PAN HEAD (J10)

98580-03008-00

$2.30

5

WASHER, SPRING

92990-03100-00

$5.87

6

GASKET, VALVE SEAT

2K7-13621-10-00

$13.08

7

JOINT, CARBURETOR

4DC-13565-00-00

Unavailable

8

CLAMP, HOSE

90460-51109-00

Unavailable

9

BOLT, FLANGE(3DM)

95024-06020-00

$4.27

10

CLAMP (3Y2)

90464-16039-00

$8.23

11

CLAMP, HOSE (29L)

90460-68230-00

$11.95

12

JOINT, AIR CLNR 1

4AA-14453-00-00

Unavailable

13

HOLDER,GUIDE

3JD-14459-01-00

Unavailable

14

SEAL

3JD-14462-00-00

$31.44

15

AIR CLEANER CASE COMP. (3XJ-W1441-00)

3XJ-W1441-01-00

Unavailable

16

PLATE

5MV-14477-00-00

Unavailable

17

NUT, U

95617-05100-00

Unavailable

18

ELEMENT, AIR CLEANER

3JD-14451-01-00

Unavailable

19

GUIDE

3JD-14458-01-00

Unavailable

20

WASHER (4H7)

90209-06096-00

Unavailable

21

BOLT, WING

90122-06005-00

Unavailable

22

WASHER, SPRING

92995-06100-00

$2.83

23

BOLT, FLANGE(2UJ)

95024-06010-00

Unavailable

24

BOLT, WITH WASHER(3JD)

90119-06185-00

Unavailable

25

COVER, CASE

3XJ-1441A-00-00

Unavailable
