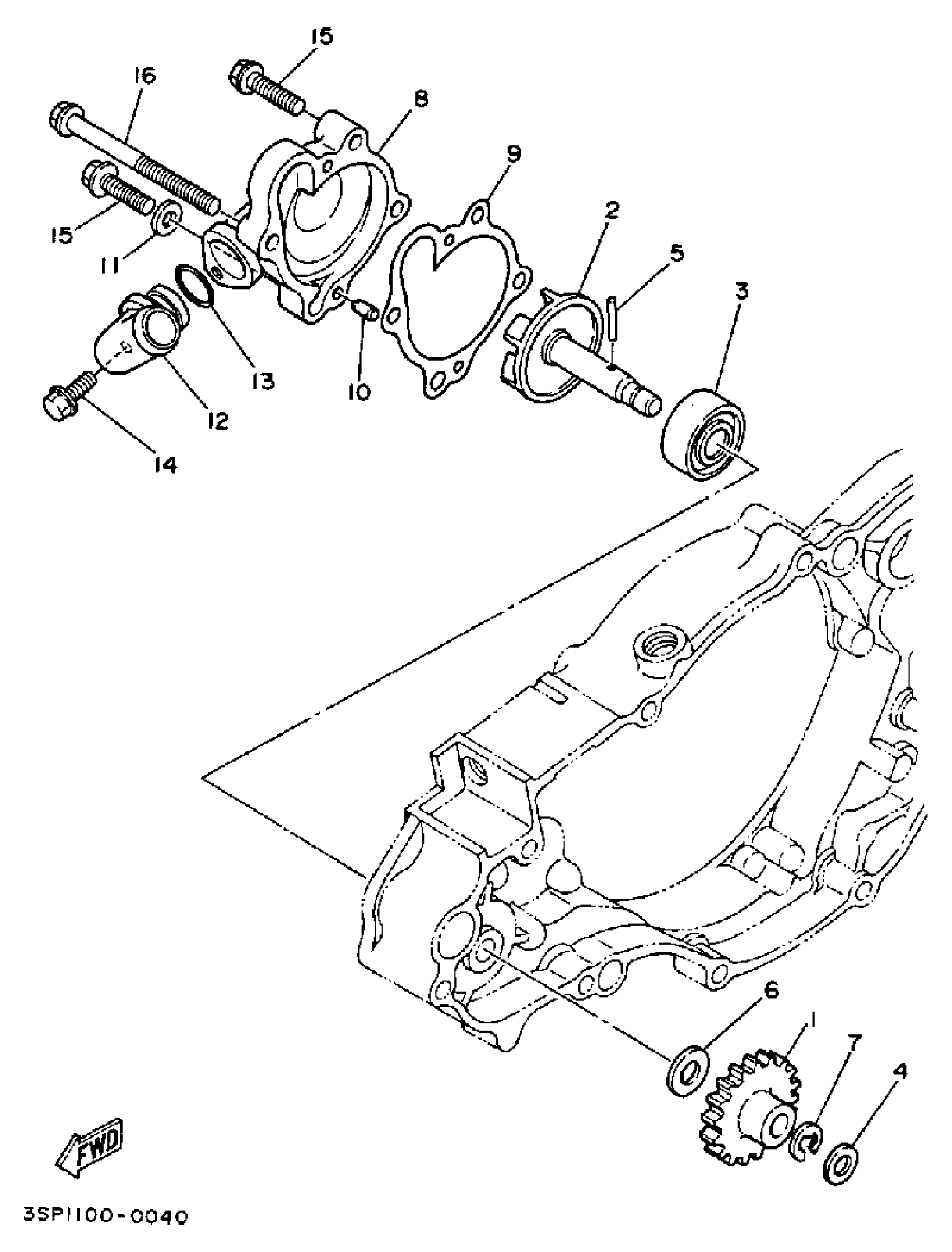

Yamaha WR250ZB (WR250Z) 1991 WATER PUMP Diagram

#

Description
Price

1

GEAR,IMPELLER SHAF

4SR-12459-00-00

Unavailable

2

IMPELLER SHAFT ASSEMBLY

2VM-12450-00-00

Unavailable

3

OIL SEAL

93103-10011-00

$46.99

4

WASHER PLATE (3L6)

90201-08759-00

$3.23

5

PIN,DOWEL (137)

93603-22028-00

$3.76

6

WASHER, PLATE (3L7)

90201-08784-00

$3.23

7

CIRCLIP(53L)

99001-06600-00

$1.01

8

COVER, HOUSING

3SP-12422-00-00

Unavailable

9

GASKET, HOUSING COVER 2

2VM-12428-11-00

$27.99

10

PIN,DOWEL (603)

93604-10011-00

$8.49

11

GASKET (4V2)

90430-06166-00

$3.76

12

JOINT 1

10V-12469-01-00

Unavailable

13

. O-RING

93210-16275-00

Unavailable

14

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

15

BOLT, FLANGE(4KG)

95024-06025-00

$2.28

16

BOLT, SMALL FLANGE

95027-06080-00

Unavailable
