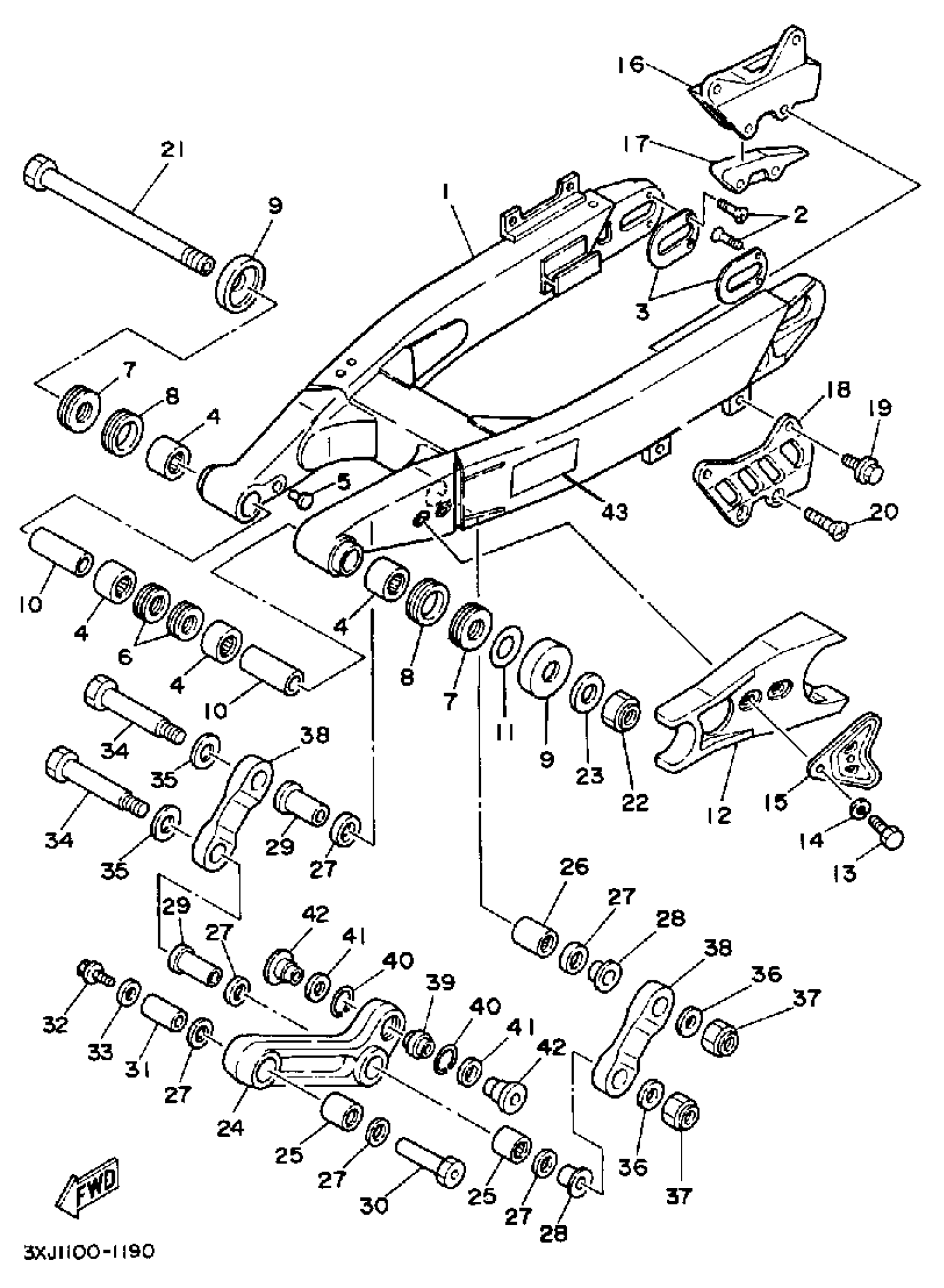

Yamaha WR250ZB (WR250Z) 1991 SWING ARM Diagram

#

Description
Price

1

REAR ARM COMP.

3XJ-22110-01-00

Unavailable

2

SCREW, FLAT

98707-04010-00

$8.49

3

PATCH A

3XJ-22355-00-00

Unavailable

4

BEARING, CYLINDRICAL(2VM)

93317-22262-00

$38.99

4

BEARING, CYLINDRICAL

93317-22263-00

Unavailable

5

PLUG (31M)

90338-10150-00

$8.49

6

OIL SEAL (23X)

93106-22019-00

$11.49

7

BEARING, THRUST (3R7)

93342-22208-00

$33.99

8

OIL SEAL (35X41.5X8-483)

93108-35004-00

$15.99

9

COVER, THRUST2

3R4-22129-00-00

$32.99

10

BUSH, SOLID(1LV)

90380-16158-00

$31.99

11

SHIM,REAR ARM

240-22127-00-00

$6.99

12

SEAL, GUARD

3JD-22151-00-00

$83.99

13

BOLT, FLANGE(3DM)

95024-06020-00

$5.60

14

WASHER, SPRING

92995-06100-00

Unavailable

15

WASHER, PLATE

3JD-22156-00-00

Unavailable

16

SUPPORT, CHAIN

3JD-22199-00-00

Unavailable

17

PROTECTOR, CHAIN

3JD-22147-00-00

Unavailable

18

COVER, THRUST 1

3JD-22128-00-00

Unavailable

19

BOLT, FLANGE

95817-06020-00

Unavailable

20

SCREW, FLAT

98707-06035-00

Unavailable

22

NUT, SELF-LOCKING

90185-16002-00

Unavailable

23

WASHER, PLATE(33Y)

90201-164H4-00

Unavailable

24

ARM, RELAY

3XJ-2217A-00-00

Unavailable

25

BEARING, CYLINDRICAL(2HJ)

93315-22046-00

Unavailable

26

BEARING, CYLINDRICAL(2HJ)

93315-22046-00

Unavailable

27

OIL SEAL

93109-20076-00

Unavailable

28

COLLAR(1LV)

90387-164N2-00

Unavailable

29

COLLAR

90387-164N3-00

Unavailable

30

NUT

90179-10544-00

Unavailable

31

COLLAR

90387-166X1-00

Unavailable

32

BOLT, FLANGE(3HP)

95817-10016-00

Unavailable

33

WASHER, PLATE (17K)

90201-106F2-00

Unavailable

34

BOLT

90109-142F4-00

Unavailable

35

WASHER, PLATE(33Y)

90201-164H4-00

Unavailable

36

WASHER PLATE (3L6)

90201-14740-00

Unavailable

37

NUT, SELF-LOCKING (1J7)

90185-14070-00

Unavailable

38

ROD, CONNECTING 1

3XJ-2217F-00-00

Unavailable

39

BEARING(3XP)

93399-99935-00

Unavailable

40

CIRCLIP (23X)

93440-30113-00

Unavailable

41

SEAL, DUST

3XJ-22475-00-00

Unavailable

42

COLLAR(3XJ)

90387-103X9-00

Unavailable

43

EMBLEM, REAR ARM

3XJ-2218A-00-00

Unavailable
