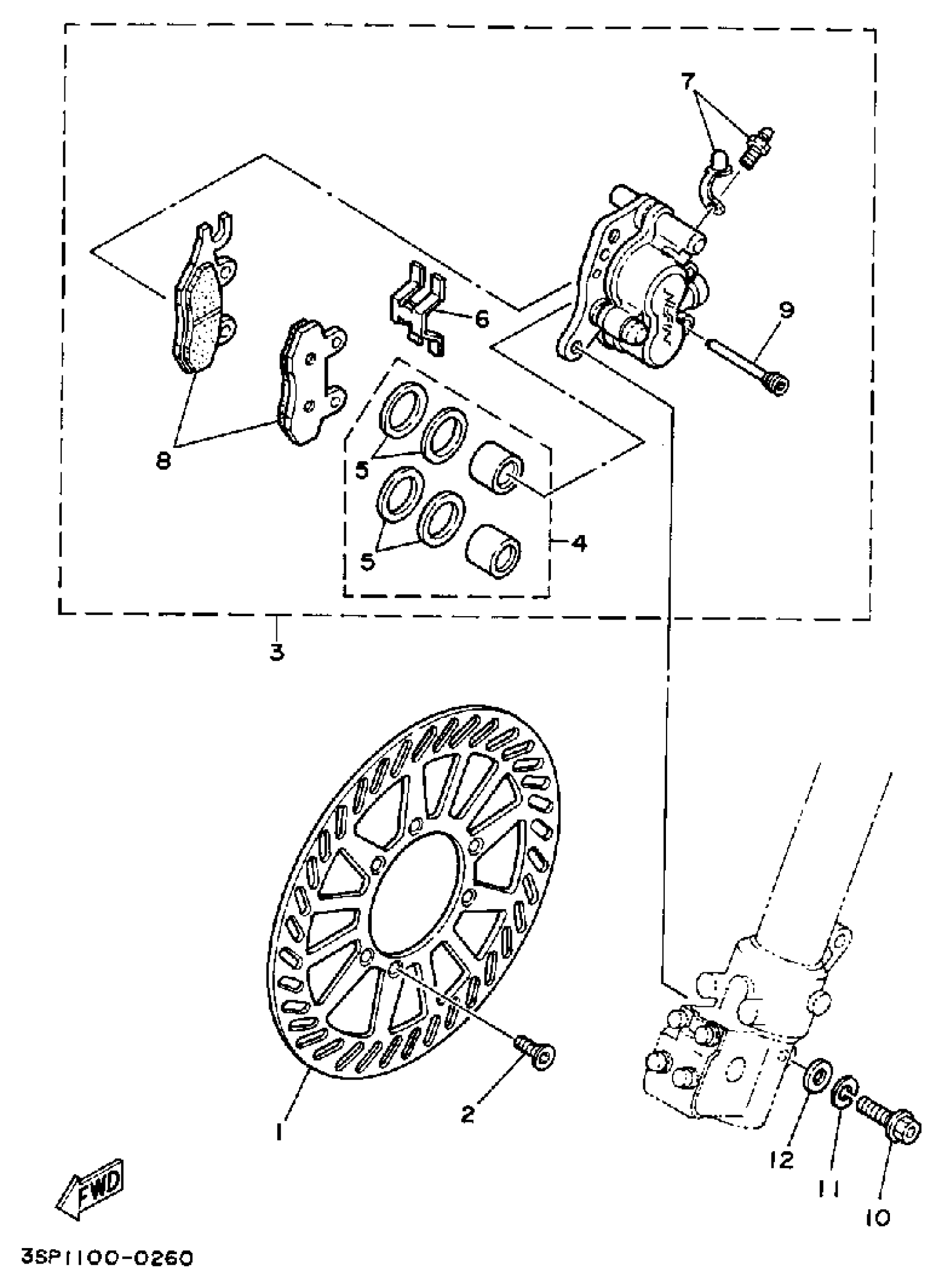

Yamaha WR250ZB (WR250Z) 1991 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC, BRAKE

3SP-2582T-00-00

Unavailable

2

SCREW, COUNTERSUNK

90151-06080-00

$1.21

3

CALIPER ASSY LEFT

3SP-2580T-01-00

Unavailable

4

. PISTON ASSEMBLY, CALIPER

3JD-W0057-00-00

Unavailable

5

CALIPER SEAL KIT

3JD-25803-00-00

$17.39

6

SUPPORT, PAD

3JD-25919-00-00

$23.08

7

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

8

BRAKE PAD KIT

3SP-W0045-00-00

Unavailable

9

PIN, PAD

3GD-25933-00-00

$21.38

10

BOLT

97014-08040-00

$4.90

11

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

12

.. WASHER, PLATE

92990-08600-00

$2.17
