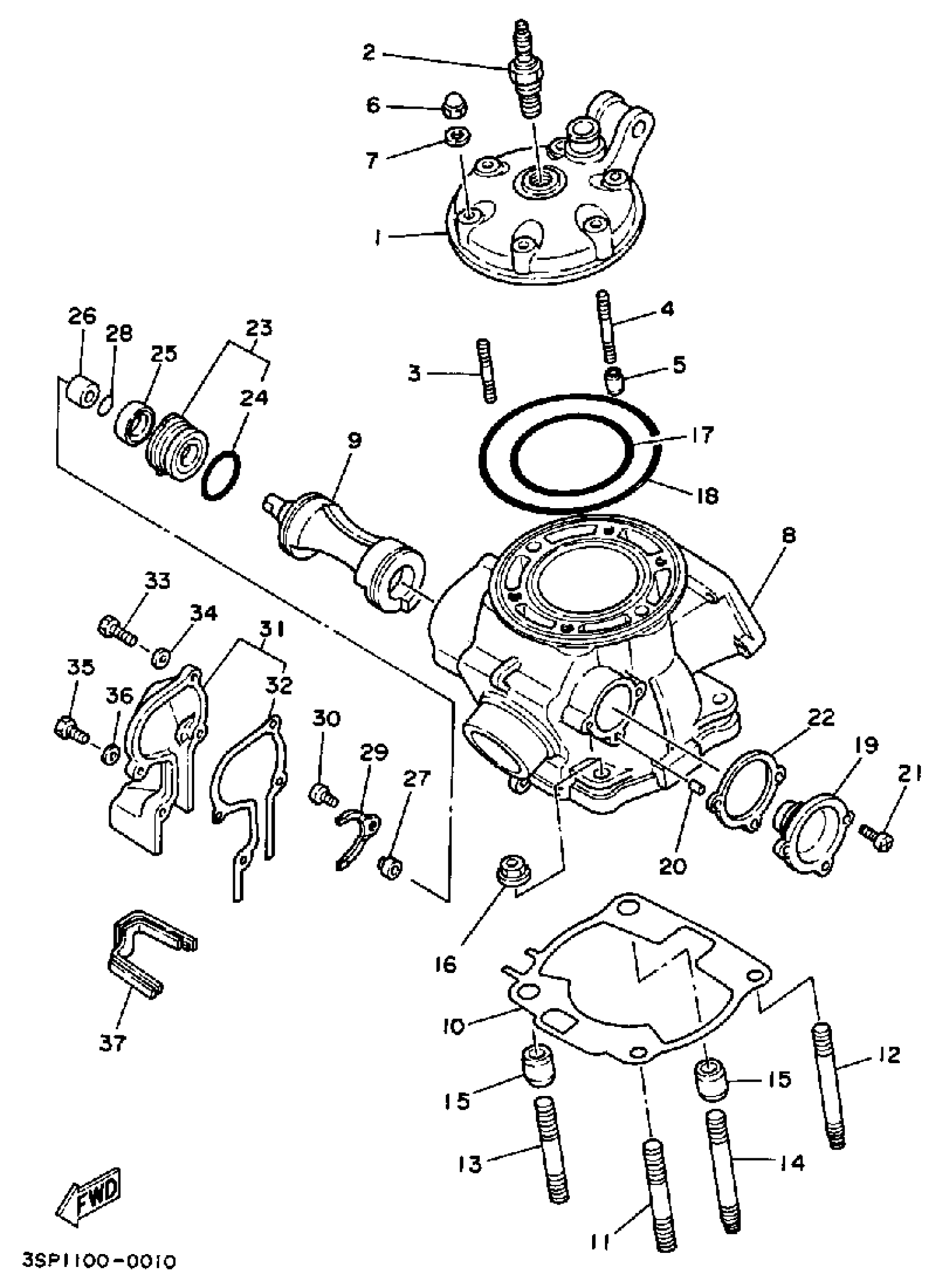

Yamaha WR250ZB (WR250Z) 1991 CYLINDER HEAD - CYLINDER Diagram

#

Description
Price

1

HEAD, CYLINDER 1

3XK-11111-00-00

Unavailable

2

B8EG NGK SPLUG 4PK

B8E-G0000-00-00

Unavailable

3

BOLT, STUD (5V6)

90116-08394-00

$11.49

4

BOLT, STUD (5X4)

90116-08392-00

$4.51

5

PIN, DOWEL(3VD)

99530-10114-00

$2.55

6

NUT, CROWN (4G0)

90176-08026-00

$14.99

7

WASHER, PLATE 3411117500

90201-08087-00

$3.71

8

CYLINDER 1

3XK-11311-00-00

Unavailable

9

VALVE 1

3XK-1131A-00-00

Unavailable

10

GASKET, CYLINDER

2VM-11351-10-00

$27.99

11

BOLT, STUD (3R4)

90116-10314-00

$4.46

12

BOLT, STUD

90116-10547-00

Unavailable

13

BOLT, STUD (3R4)

90116-10314-00

$4.46

14

BOLT, STUD

90116-10547-00

Unavailable

15

PIN, DOWEL

99530-14016-00

$3.80

16

NUT, FLANGE(3BM)

95704-10500-00

Unavailable

17

O-RING (2H7)

93210-77363-00

Unavailable

18

O-RING(2VM)

93211-11770-00

Unavailable

19

HOLDER 1

3JE-Y113E-00-00

Unavailable

20

PIN, DOWEL (278)

93604-08071-00

Unavailable

21

SCREW,PAN HEAD (646)

98580-05012-00

Unavailable

22

GASKET, HOLDER

3JE-1131N-10-00

Unavailable

23

HOLDER 2 ASSY

5X4-Y113F-10-00

Unavailable

24

O-RING(2HG)

93210-270A8-00

Unavailable

25

OIL SEAL (5X4)

93104-16074-00

Unavailable

26

COLLAR(3JE)

90387-102W0-00

Unavailable

27

BOSS, LEVER

3JE-11937-01-00

Unavailable

28

O-RING (341)

93210-09192-00

Unavailable

29

PLATE, THRUST 1

1LX-11915-00-00

Unavailable

30

GASKET, EXHAUST

98507-05008-00

Unavailable

31

HOUSING 2

3SP-11992-11-00

Unavailable

32

GASKET

3SP-11993-10-00

Unavailable

33

BOLT(3JK)

97027-05020-00

Unavailable

34

WASHER, PLAIN (646)

92990-05600-00

Unavailable

35

BOLT(6A1)

97095-05016-00

Unavailable

36

WASHER, PLAIN (646)

92990-05600-00

Unavailable

37

SEAL, HOUSING

2VM-11995-01-00

Unavailable
