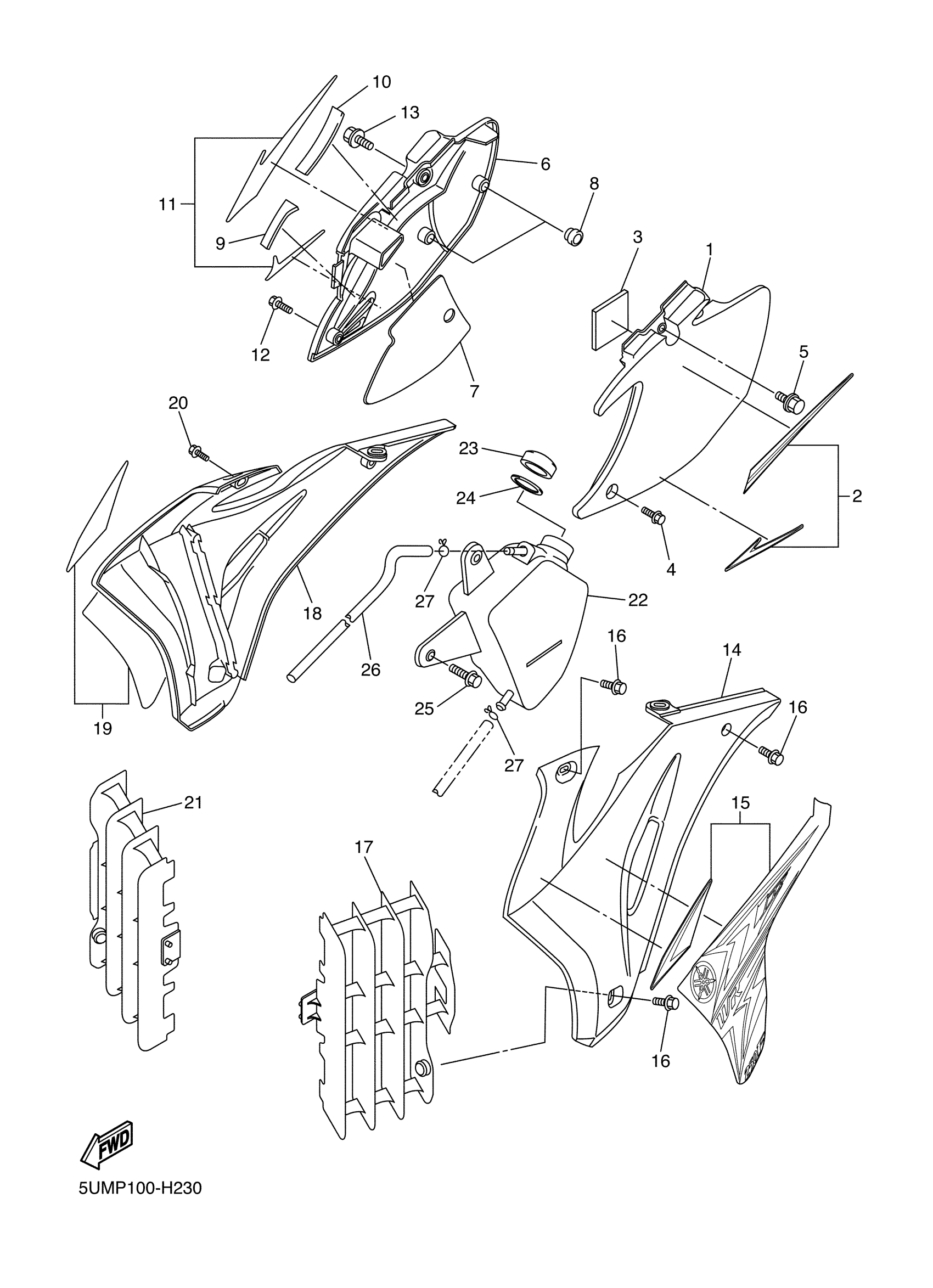

Yamaha WR250FY (WR250F) 5UMN 2009 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

5UM-21711-E0-00

$31.05

2

GRAPHIC SET

5TJ-2167A-10-00

Unavailable

3

DAMPER

5UM-21717-E0-00

$4.70

4

BOLT, FLANGE

90105-06103-00

$4.02

5

BOLT, WITH WASHER

90119-08095-00

$5.81

6

COVER, SIDE 2

5UM-21721-E0-00

Unavailable

7

INSULATOR, SIDE COVER

5UM-2174A-E0-00

Unavailable

8

GROMMET

5XC-21719-90-00

$6.04

9

INSULATOR 3

5UM-2172S-E0-00

$3.32

10

INSULATOR 4

5UM-2173S-E0-00

$6.52

11

GRAPHIC SET 2

5TJ-2167B-10-00

Unavailable

12

BOLT, FLANGE

90105-06103-00

$4.02

13

BOLT, WITH WASHER

90119-08095-00

$5.81

14

SIDE COVER ASSY 3

5UM-21730-E0-00

$32.59

15

GRAPHIC SET 1

5UM-2173L-19-00

Unavailable

16

BOLT, FLANGE

90105-06064-00

Unavailable

17

PANEL 1

2S2-2172A-70-00

Unavailable

18

SIDE COVER ASSY 4 (DEEP PURPLISH BLUE SOLID E)

5UM-21740-E0-00

Unavailable

19

GRAPHIC SET 2

5UM-2174L-10-00

Unavailable

20

BOLT, FLANGE

90105-06064-00

Unavailable

21

PANEL 1

2S2-2172A-80-00

Unavailable

22

TANK ASSY

5UM-21860-E0-00

Unavailable

23

CAP

26H-21875-00-00

Unavailable

24

GASKET

26H-21874-00-00

Unavailable

25

BOLT, WITH WASHER

90119-06146-00

Unavailable

26

HOSE 6

5UM-1244J-E0-00

Unavailable

27

CLIP

90467-090A2-00

Unavailable
