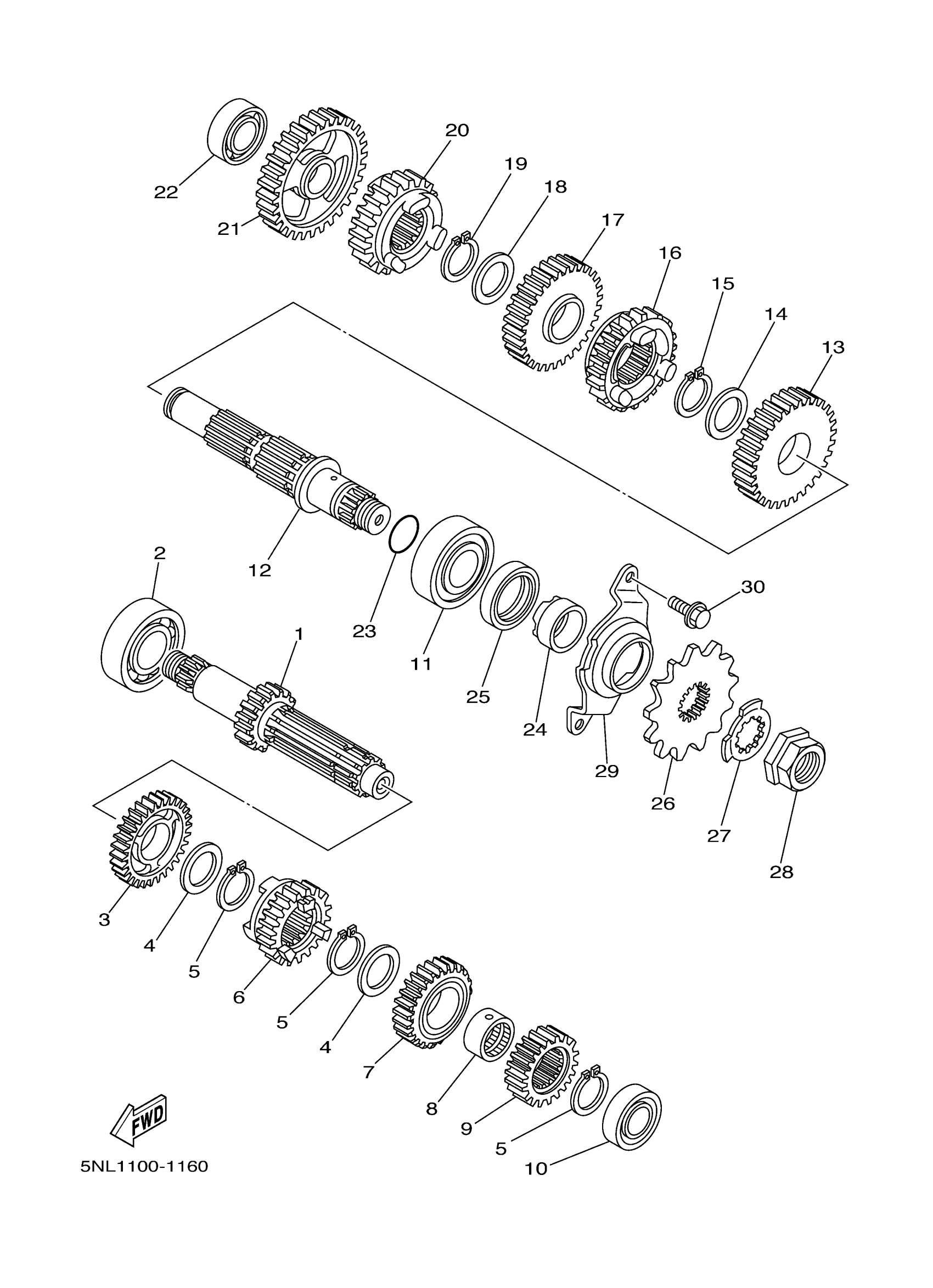

Yamaha WR250FX (WR250FX) 5UMH 2008 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

5UM-17411-00-00

Unavailable

2

BEARING (30X)

93306-20447-00

$41.99

3

GEAR, 5TH PINION

5UM-17151-00-00

Unavailable

4

WASHER

90209-20008-00

$11.49

5

CIRCLIP (537)

93410-22039-00

$8.49

6

GEAR, 3RD PINION

5UM-17131-00-00

Unavailable

7

GEAR, 4TH PINION

5UM-17141-00-00

Unavailable

8

COLLAR

90387-20006-00

$31.99

9

GEAR, 2ND PINION

5NL-17121-00-00

$84.99

10

BEARING(4GA)

93306-00320-00

$36.99

11

BEARING

93306-27209-00

$76.99

12

DRIVE AXLE ASSY

5NL-17402-01-00

$202.99

13

GEAR, 2ND WHEEL

5NL-17221-00-00

Unavailable

14

WASHER

90209-23012-00

$5.60

15

CIRCLIP (30X)

93410-26067-00

$8.49

16

GEAR, 4TH WHEEL

5UM-17241-00-00

Unavailable

17

GEAR, 3RD WHEEL

5UM-17231-00-00

Unavailable

18

WASHER

90209-20008-00

$11.49

19

CIRCLIP (537)

93410-22039-00

$8.49

20

GEAR, 5TH WHEEL

5UM-17251-00-00

Unavailable

21

GEAR, 1ST WHEEL (31T)

5PH-17211-00-00

Unavailable

22

BEARING(7LY)

93306-00317-00

Unavailable

23

O-RING

93210-196A4-00

Unavailable

24

COLLAR

90387-22001-00

Unavailable

25

OIL SEAL

93102-28010-00

Unavailable

26

SPROCKET, DRIVE (13T)

9383B-13218-00

Unavailable

27

WASHER, LOCK

90215-20003-00

Unavailable

28

NUT

90179-18001-00

Unavailable

29

PLATE, COVER

5NL-17471-10-00

Unavailable

30

BOLT, FLANGE

95022-06012-00

Unavailable
