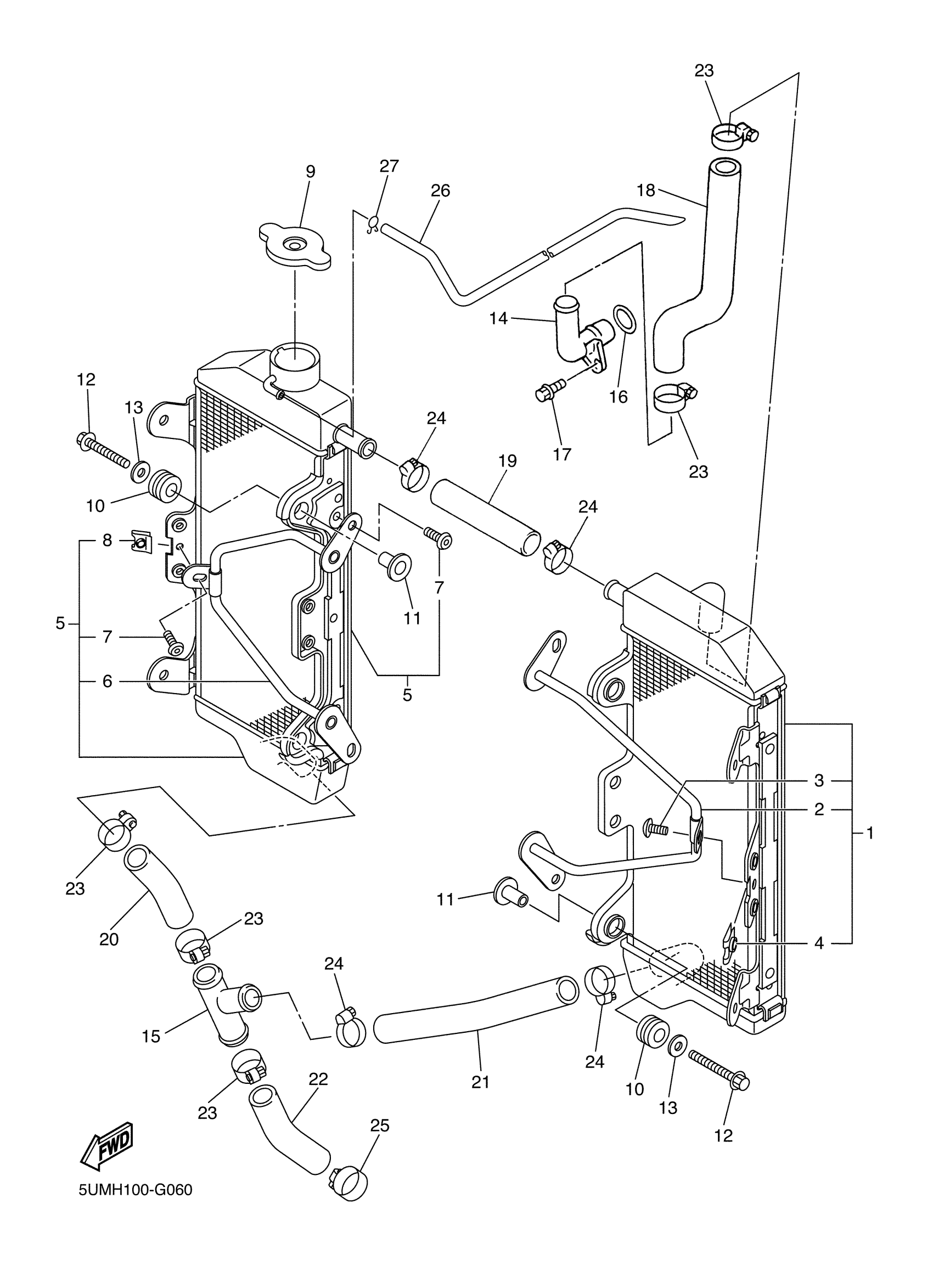

Yamaha WR250FX (WR250FX) 5UMH 2008 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

5UM-1240A-E0-00

Unavailable

2

STAY, RADIATOR

2S2-12464-70-00

Unavailable

3

BOLT, BUTTON HEAD

92012-06010-00

$4.30

4

NUT, SPRING

90183-060A6-00

$5.49

5

RADIATOR ASSY

5UM-12461-E0-00

Unavailable

6

STAY, RADIATOR

2S2-12464-70-00

Unavailable

7

BOLT, BUTTON HEAD

92012-06010-00

$4.30

8

NUT, SPRING

90183-060A6-00

$5.49

9

CAP, RADIATOR

4FL-12462-00-00

$62.99

10

GROMMET(3RB)

90480-15528-00

$8.49

11

COLLAR

90387-06065-00

$12.49

12

BOLT, FLANGE

90105-06111-00

$8.49

13

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

14

PIPE 1

5XC-12481-90-00

$48.99

15

PIPE 2

5XC-12482-90-00

$35.99

16

O-RING (22U)

93210-15566-00

Unavailable

17

BOLT,SOCKET

91317-06012-00

Unavailable

18

HOSE 1

5XC-12576-90-00

Unavailable

19

PIPE 2

1C3-12482-00-00

Unavailable

20

HOSE 3

5XC-12578-90-00

Unavailable

21

HOSE 4

5XC-12579-91-00

Unavailable

22

HOSE 5

5XC-1244H-90-00

Unavailable

23

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

24

HOSE CLAMP ASSY

90450-18M09-00

Unavailable

25

HOSE CLAMP ASSY

90450-32003-00

Unavailable

26

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

Unavailable

27

CLIP

90467-090A2-00

Unavailable
