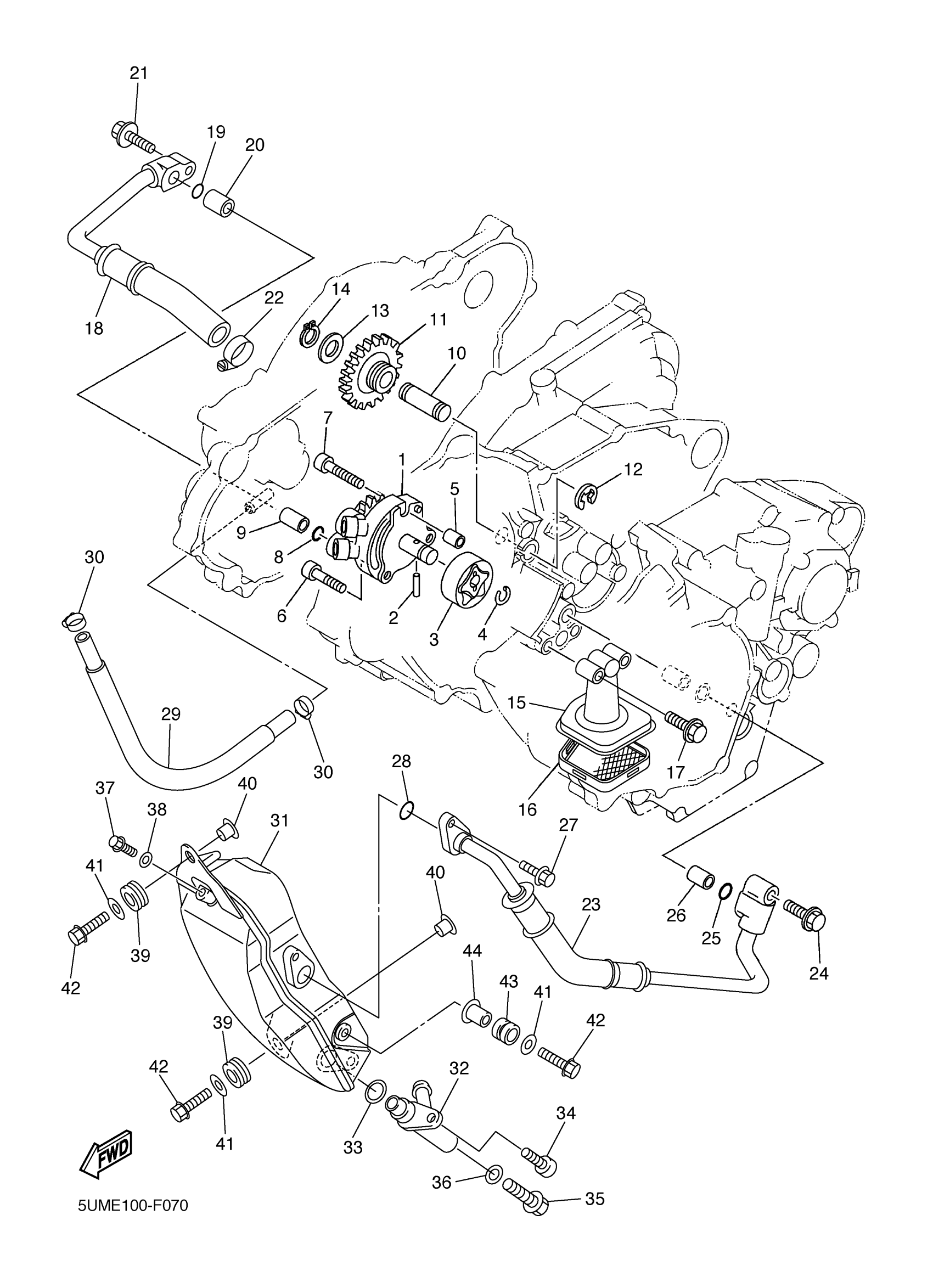

Yamaha WR250FX (WR250FX) 5UMH 2008 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

5SG-13300-01-00

$167.99

2

PIN, DOWEL(1HX)

93603-16219-00

$8.49

3

ROTOR ASSY 2

5NL-13320-00-00

$47.99

4

CIRCLIP(1WG)

93440-10153-00

$2.39

5

PIN, DOWEL

99530-08012-00

Unavailable

6

BOLT,SOCKET

91317-06025-00

$5.60

7

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$5.60

8

O-RING (371)

93210-10197-00

$7.49

9

PIN, DOWEL(3VD)

99530-10114-00

$2.55

10

SHAFT, IDLE GEAR

5BE-13342-00-00

$22.99

11

GEAR, OIL PUMP IDLE

5NL-13341-00-00

Unavailable

12

CIRCLIP(2R6)

99001-08600-00

$8.49

13

WASHER PLATE 164185720000

90201-12166-00

$9.49

14

CIRCLIP(10Y)

99009-12400-00

$3.59

15

HOUSING, STRAINER

5XC-13412-00-00

Unavailable

16

STRAINER, OIL

5NL-13411-00-00

Unavailable

17

BOLT, FLANGE

95022-06025-00

Unavailable

18

HOSE, OIL 1

5XC-13464-20-00

Unavailable

19

O-RING (371)

93210-10197-00

$7.49

20

PIN, DOWEL(3VD)

99530-10114-00

$2.55

21

BOLT, FLANGE

95022-06025-00

Unavailable

22

HOSE CLAMP ASSY

90450-18M09-00

Unavailable

23

HOSE, OIL 2

5XC-13465-10-00

Unavailable

24

BOLT, FLANGE

95022-06025-00

Unavailable

25

O-RING (371)

93210-10197-00

$7.49

26

PIN, DOWEL(3VD)

99530-10114-00

$2.55

27

BOLT, FLANGE

95022-06016-00

Unavailable

28

O-RING (1J7)

93210-09350-00

Unavailable

29

HOSE (L330)

90445-14010-00

Unavailable

30

HOSE CLAMP ASSY(62T)

90450-14M05-00

Unavailable

31

TANK, OIL

5XC-21751-90-00

Unavailable

32

PIPE, OIL 1

5XC-13416-90-00

Unavailable

33

O-RING (2H9)

93210-14369-00

Unavailable

34

BOLT(3MA)

91312-06016-00

Unavailable

35

BOLT, FLANGE

90105-08151-00

Unavailable

36

WASHER, PLATE (4L0)

90201-082A6-00

Unavailable

37

BOLT, FLANGE

90105-06128-00

Unavailable

38

WASHER, PLATE (1L9)

90201-06630-00

Unavailable

39

GROMMET (4N0)

90480-10289-00

Unavailable

40

COLLAR

90387-06150-00

Unavailable

41

WASHER, PLATE (583 REAR FENDER

90201-06571-00

Unavailable

42

BOLT, FLANGE

90105-06112-00

Unavailable

43

GROMMET(1JK)

90480-14433-00

Unavailable

44

COLLAR

90387-06161-00

Unavailable
