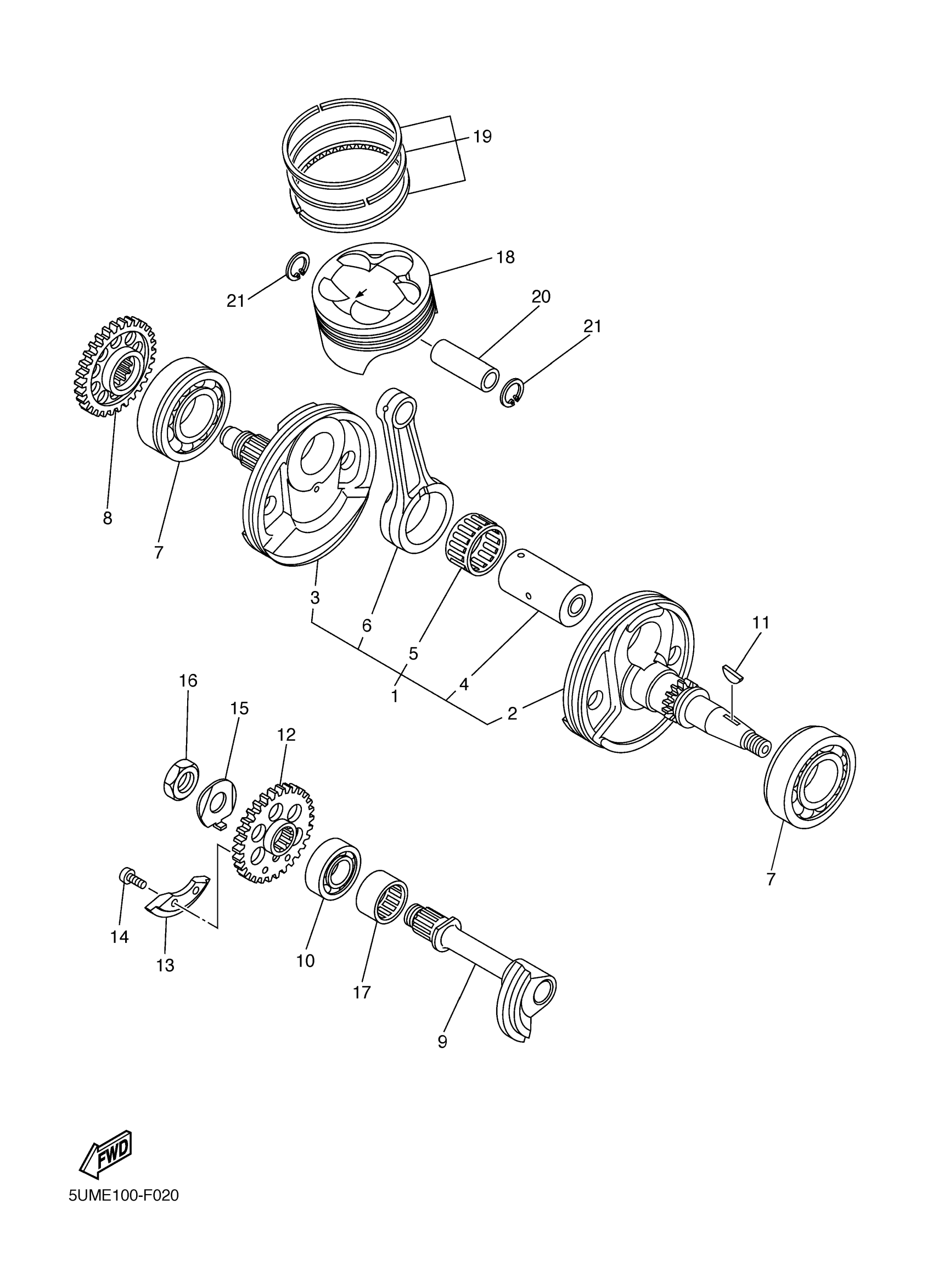

Yamaha WR250FX (WR250FX) 5UMH 2008 CRANKSHAFT PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

5UM-11400-32-00

$612.99

2

CRANK 1

5UM-11412-20-00

Unavailable

3

CRANK 2

5UL-11422-10-00

$177.99

4

PIN, CRANK 1

5XC-11681-01-00

$77.99

5

BEARING

93310-63290-00

$111.99

6

ROD, CONNECTING

17D-11651-90-00

$112.99

7

BEARING

93306-20648-00

$91.99

8

GEAR, DRIVE

5NL-11536-10-00

Unavailable

9

SHAFT 1

5NL-11455-00-00

Unavailable

10

BEARING(37F)

93306-20335-00

$35.99

11

KEY, WOODRUFF

90280-03006-00

$8.49

12

GEAR, BALANCE WT

5NL-11531-00-00

Unavailable

13

WEIGHT 1

5NL-11454-00-00

Unavailable

14

SCREW

90149-06084-00

$8.49

15

WASHER, LOCK (2K6)

90215-14204-00

$9.49

16

NUT, HEXAGON

90170-14171-00

Unavailable

17

BEARING, CYLINDRICAL(1NT)

93311-32261-00

Unavailable

18

PISTON (STD)

5NL-11631-20-00

Unavailable

19

PISTON RING SET (STD)

5NL-11603-00-00

Unavailable

20

PIN, PISTON

5NL-11633-00-00

Unavailable

21

CIRCLIP

93420-16086-00

Unavailable
