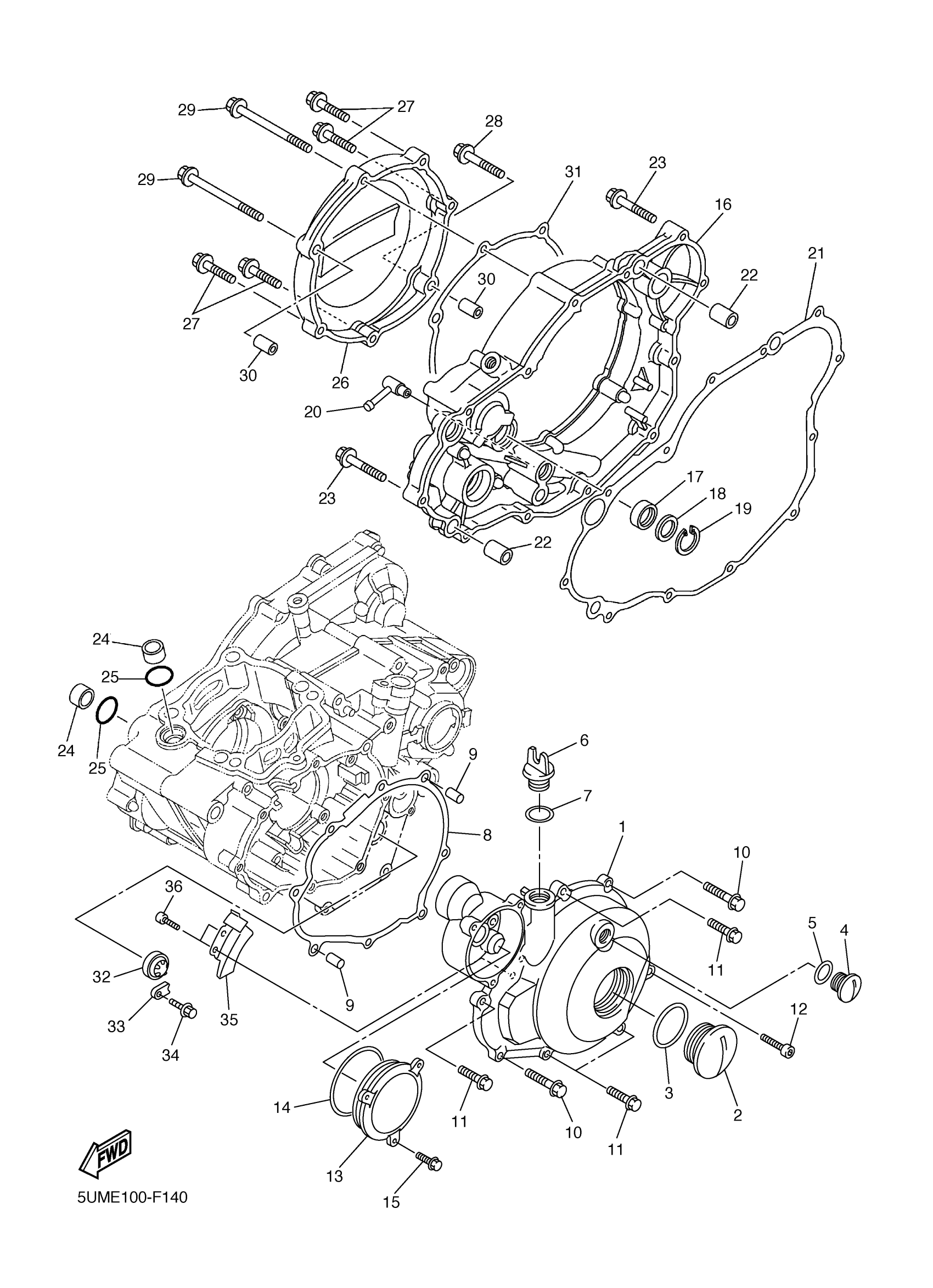

Yamaha WR250FX (WR250FX) 5UMH 2008 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE 1

5UM-15411-20-00

$202.99

2

PLUG, STRAIGHT SCREW

90340-27004-00

Unavailable

3

O-RING(1KT)

93210-27778-00

$8.49

4

PLUG, STRAIGHT SCREW

90340-14015-00

$17.99

5

O-RING (2H9)

93210-14369-00

$7.49

6

PLUG, OIL

3Y1-15363-10-00

$18.49

7

O-RING (646)

93210-19123-00

Unavailable

8

GASKET, CRANKCASE COVER 1

5UM-15451-00-00

$15.49

9

PIN, DOWEL(3XW)

91808-16023-00

$8.49

10

BOLT, FLANGE

95022-06040-00

$3.45

11

BOLT, FLANGE

95022-06030-00

$3.72

12

BOLT

91312-06110-00

$5.60

13

COVER ASSY 2

5UM-1549B-20-00

$73.99

14

O-RING (4H7)

93210-60426-00

$10.49

15

BOLT, FLANGE

95022-06016-00

$3.62

16

COVER, CRANKCASE 3

5XC-15431-01-00

Unavailable

17

OIL SEAL(4GY)

93101-14164-00

Unavailable

18

WASHER (566)

90201-15701-00

Unavailable

19

CIRCLIP

99009-22500-00

Unavailable

20

PIPE, BREATHER

5XC-15373-00-00

Unavailable

21

GASKET, CRANKCASE COVER 3

5NL-15462-00-00

Unavailable

22

PIN, DOWEL(J38)

91812-16001-00

Unavailable

23

BOLT, FLANGE

95022-06035-00

Unavailable

24

PIPE, WATER

5NL-12564-00-00

Unavailable

25

O-RING (M124)

93210-16772-00

Unavailable

26

COVER, GENERATOR

5NL-15415-30-00

Unavailable

27

BOLT, FLANGE

95022-06025-00

Unavailable

28

BOLT, FLANGE

95022-06035-00

Unavailable

29

BOLT, FLANGE

90105-06098-00

Unavailable

30

PIN, DOWEL(3XW)

91808-16023-00

$8.49

31

GASKET

5NL-15453-10-00

Unavailable

32

GAUGE, LEVEL

3Y1-15361-00-00

Unavailable

33

HOLDER

5XC-15118-00-00

Unavailable

34

BOLT, FLANGE

95022-06012-00

Unavailable

35

CLAMP 1

5UM-81528-00-00

Unavailable

36

BOLT(47X)

91312-05012-00

Unavailable
