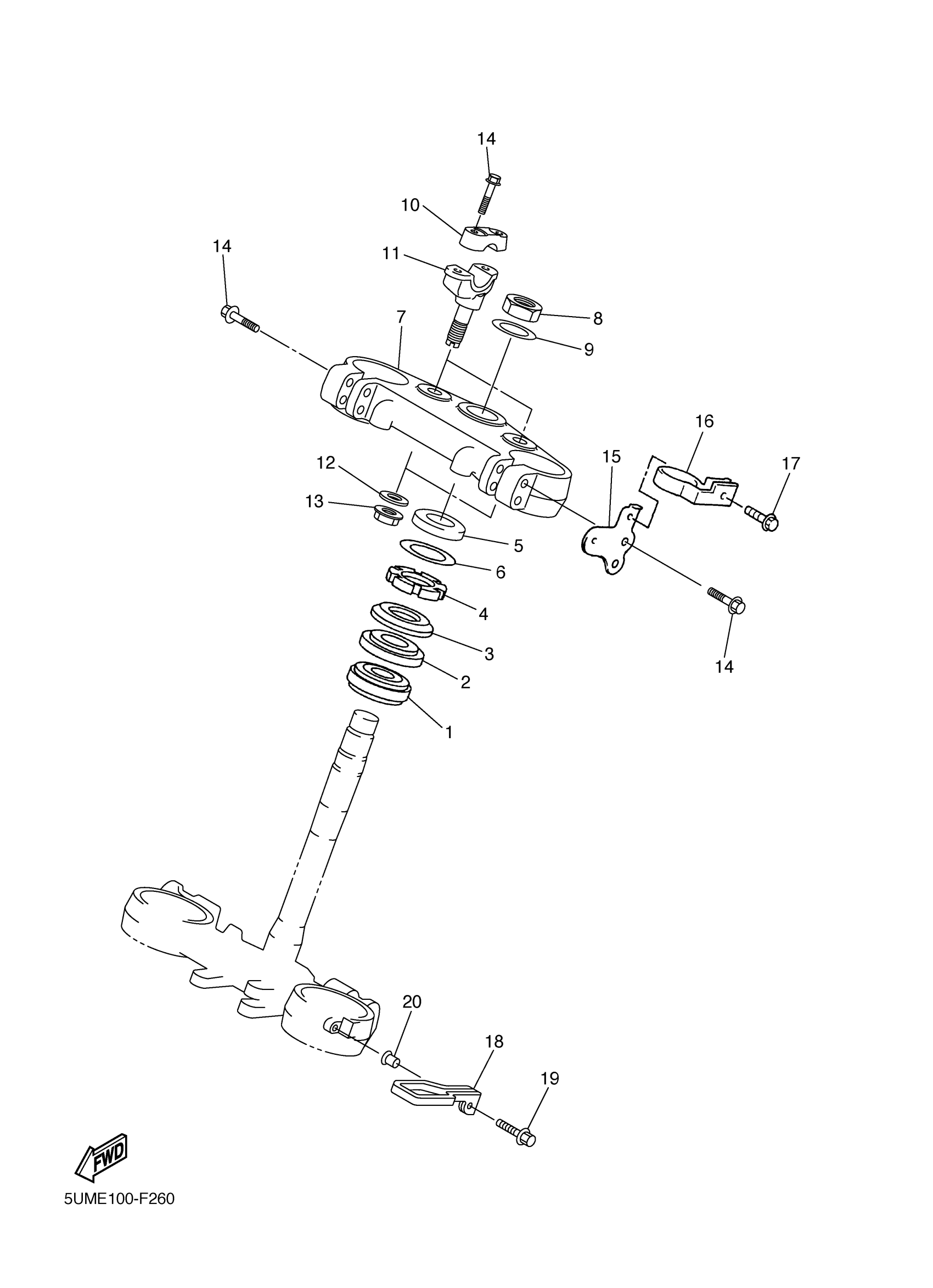

Yamaha WR250FW (WR250F) 5UME 2007 STEERING Diagram

#

Description
Price

1

BEARING(4SR)

93332-00081-00

$58.99

2

BEARING(4EW)

93332-00078-00

$64.99

3

COVER, BALL RACE 2

4EW-23416-00-00

$34.99

4

NUT

90179-28013-00

$35.99

5

COLLAR

5UM-23113-E0-00

Unavailable

6

WASHER, PLATE(1YW)

90201-286K9-00

$7.49

7

CROWN, HANDLE

5UM-23435-E1-00

Unavailable

8

NUT

90170-24003-00

$25.99

9

WASHER, PLATE

90201-24016-00

$8.49

10

HOLDER, HANDLE UPPER

5XC-23441-90-00

$32.99

11

HOLDER, HANDLE LOWER

5UM-23442-E0-00

Unavailable

12

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

13

NUT, S/L FLANGE

95602-10200-00

$4.82

14

BOLT, FLANGE

90105-08154-00

$7.49

15

STAY, HEAD LIGHT 1

5UM-2831V-E0-00

$11.99

16

GUIDE, CABLE

5TJ-2331E-80-00

Unavailable

17

BOLT, FLANGE

90105-05016-00

Unavailable

18

GUIDE, CABLE

5TJ-23389-80-00

Unavailable

19

BOLT, FLANGE

90105-06107-00

Unavailable

20

COLLAR

90387-06104-00

Unavailable
