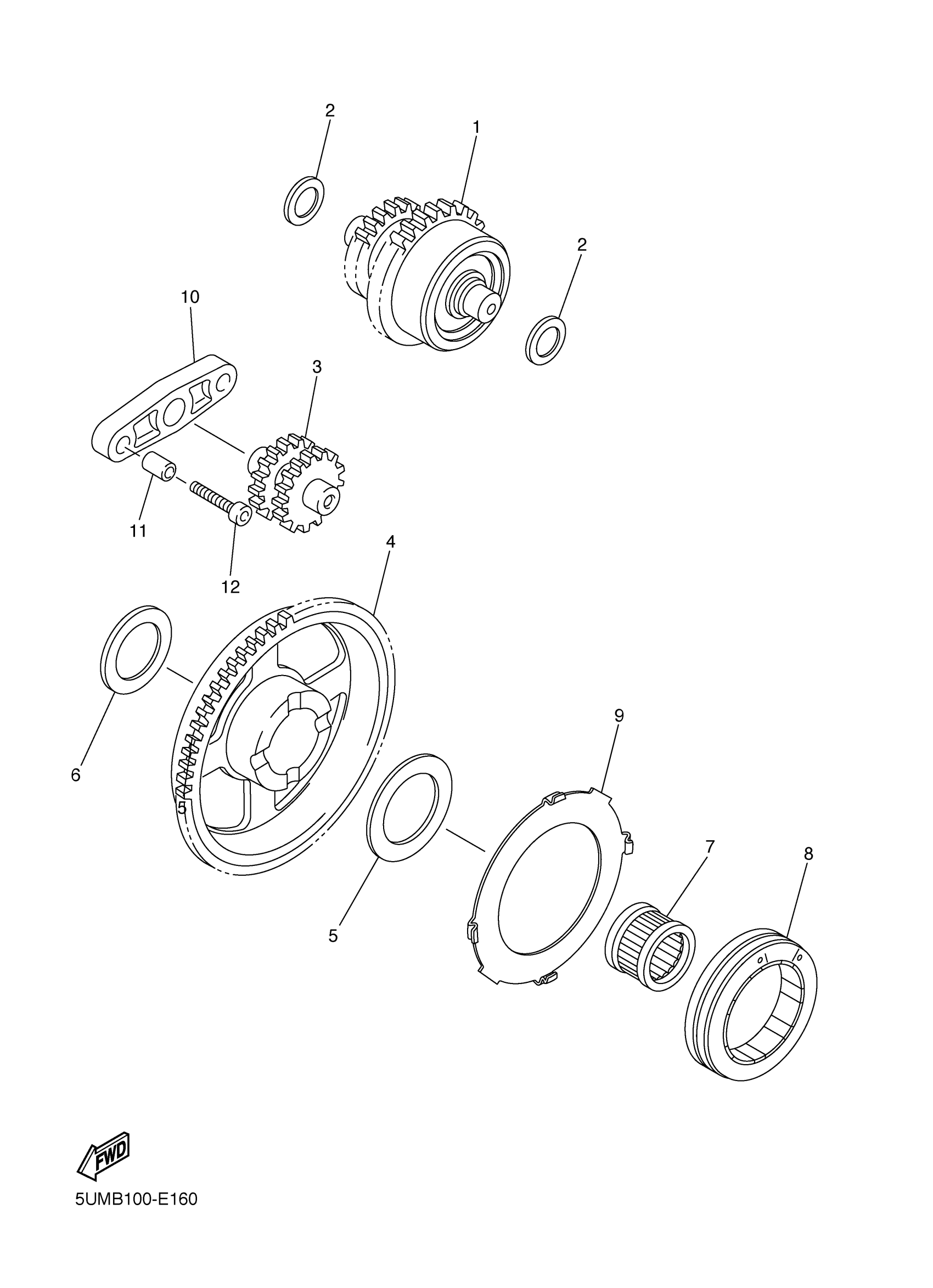

Yamaha WR250FW (WR250F) 5UME 2007 STARTER CLUTCH Diagram

#

Description
Price

1

DAMPER ASSY

5UM-15560-10-00

Unavailable

2

WASHER PLATE (3L6)

90201-08759-00

$2.34

3

GEAR, IDLER 2

5UM-15517-00-00

Unavailable

4

GEAR 3

5UM-15515-20-00

$178.98

5

WASHER, PLATE

90201-20021-00

$10.52

6

WASHER, PLATE (3Y1)

90201-20792-00

$7.15

7

BEARING

93310-42057-00

Unavailable

8

STARTER CLUTCH ASSY

5UM-15570-00-00

$102.25

9

PLATE, STARTER CLUTCH ASSY

5VY-15586-00-00

Unavailable

10

PLATE, IDLE GEAR

5UM-15532-00-00

Unavailable

11

PIN, DOWEL

99530-08012-00

$4.89

12

BOLT,SOCKET

91317-06025-00

$1.91
