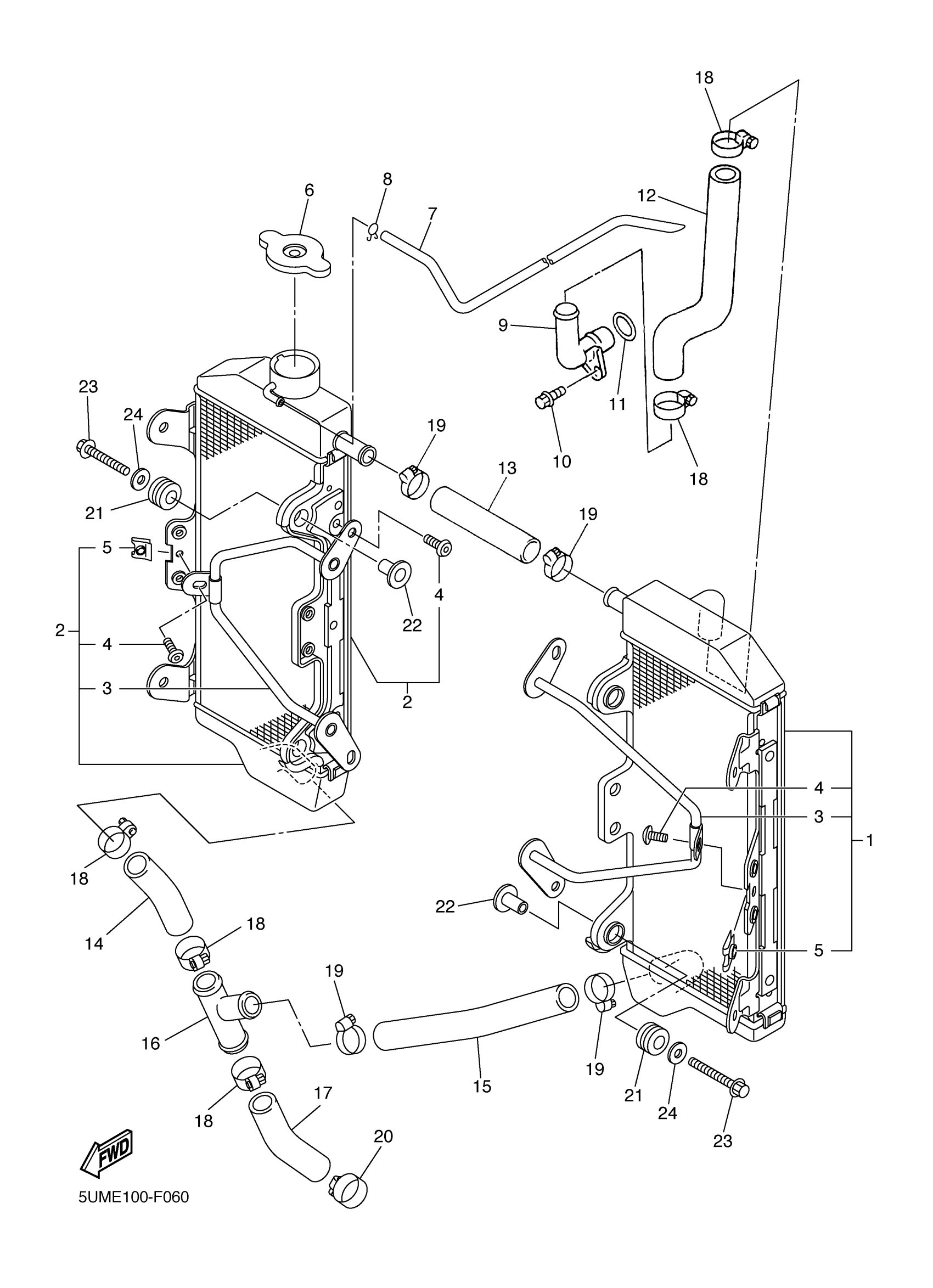

Yamaha WR250FW (WR250F) 5UME 2007 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

5UM-1240A-E0-00

Unavailable

2

RADIATOR ASSY

5UM-12461-E0-00

Unavailable

3

STAY, RADIATOR

2S2-12464-70-00

Unavailable

4

BOLT, BUTTON HEAD

92012-06010-00

$2.28

5

NUT, SPRING

90183-060A6-00

$3.90

6

CAP, RADIATOR

4FL-12462-00-00

$53.09

7

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

$21.88

8

CLIP

90467-090A2-00

$2.47

9

PIPE 1

5XC-12481-90-00

$39.19

10

BOLT,SOCKET

91317-06012-00

$5.75

11

O-RING (22U)

93210-15566-00

$5.39

12

HOSE 1

5XC-12576-90-00

Unavailable

13

PIPE 2

1C3-12482-00-00

$6.80

14

HOSE 3

5XC-12578-90-00

Unavailable

15

HOSE 4

5XC-12579-91-00

Unavailable

16

PIPE 2

5XC-12482-90-00

Unavailable

17

HOSE 5

5XC-1244H-90-00

Unavailable

18

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

19

HOSE CLAMP ASSY

90450-18M09-00

$9.82

20

HOSE CLAMP ASSY

90450-32003-00

Unavailable

21

GROMMET(3RB)

90480-15528-00

Unavailable

22

COLLAR

90387-06065-00

Unavailable

23

BOLT, FLANGE

90105-06111-00

Unavailable

24

WASHER, PLATE (583 REAR FENDER

90201-06571-00

Unavailable
