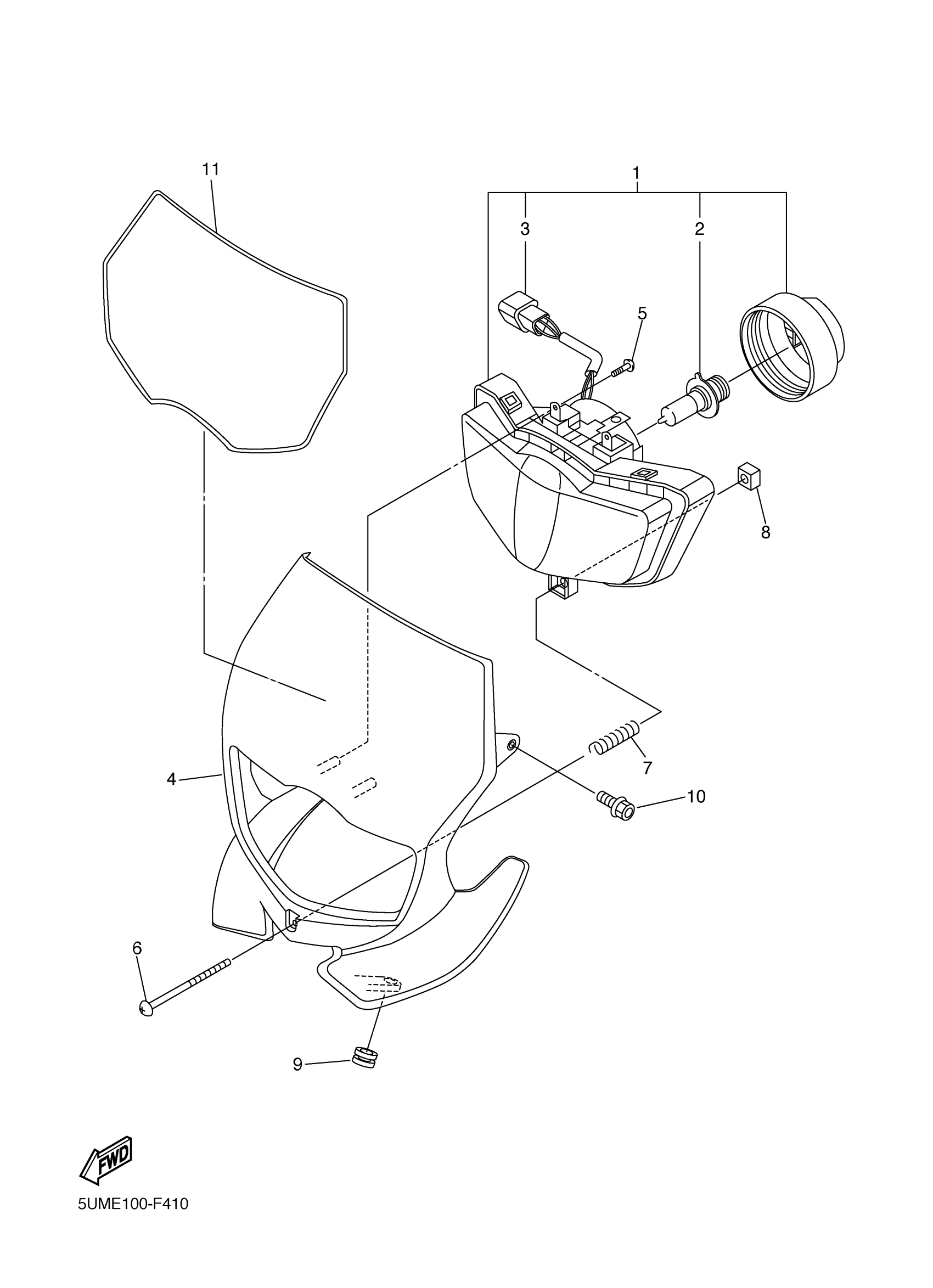

Yamaha WR250FW (WR250F) 5UME 2007 HEADLIGHT Diagram

#

Description
Price

1

HEADLIGHT UNIT ASSY

5UM-84310-E1-00

$265.32

2

BULB, HEADLIGHT

5VM-84314-00-00

$39.93

3

SOCKET CORD ASSY 1

5UM-84340-E0-00

Unavailable

4

BODY ASSY

5UM-84330-E0-00

$40.00

5

SCREW, PAN HEAD TAPPING (AK5)

97780-50116-00

$1.36

6

SCREW, PAN HEAD

90157-04005-00

$2.39

7

SPRING, COMPRESSION

90501-120A3-00

$1.90

8

NUT, ADJUSTING

5BF-84334-00-00

$6.67

9

GROMMET

90480-12020-00

$6.75

10

BOLT, FLANGE

90105-06064-00

Unavailable

11

GRAPHIC 1

5TJ-2339E-00-00

Unavailable
