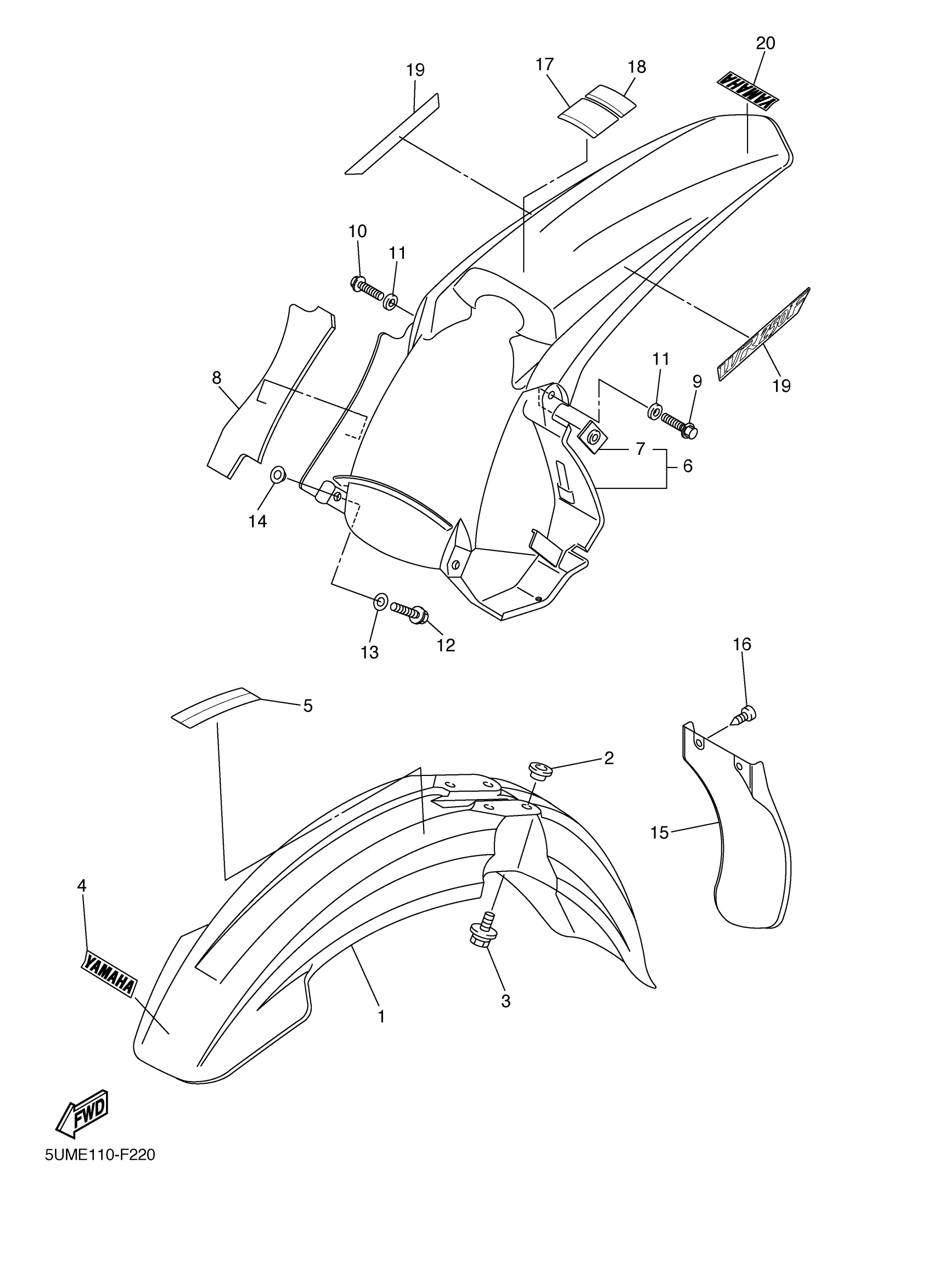

Yamaha WR250FW (WR250F) 5UME 2007 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

1C3-21511-51-00

$32.99

2

COLLAR

90387-06090-00

$8.49

3

BOLT, WITH WASHER

90119-06147-00

$1.13

4

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

5

LABEL, CAUTION

3FB-2415E-02-00

$4.84

6

REAR FENDER COMP.

5UM-21610-E0-00

$37.99

7

NUT, REAR FENDER

5XE-21635-10-00

$13.49

8

INSULATOR, SIDE COVER 2

5UM-2174T-E0-00

Unavailable

9

BOLT, FLANGE

90105-06127-00

$8.49

10

BOLT, FLANGE

90105-06100-00

$7.49

11

WASHER, PLATE

90201-06032-00

$8.49

12

BOLT, FLANGE

90105-06106-00

$3.76

13

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

14

COLLAR

90387-06009-00

$10.49

15

GUARD, FLAP

5TA-21642-00-00

$39.99

16

SCREW, TAPPING

97702-60016-00

Unavailable

17

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

18

LABEL 5

3XJ-2151H-A1-00

Unavailable

19

EMBLEM 1

5UM-2163G-20-00

Unavailable

20

EMBLEM, YAMAHA

5UM-2153E-01-00

Unavailable
