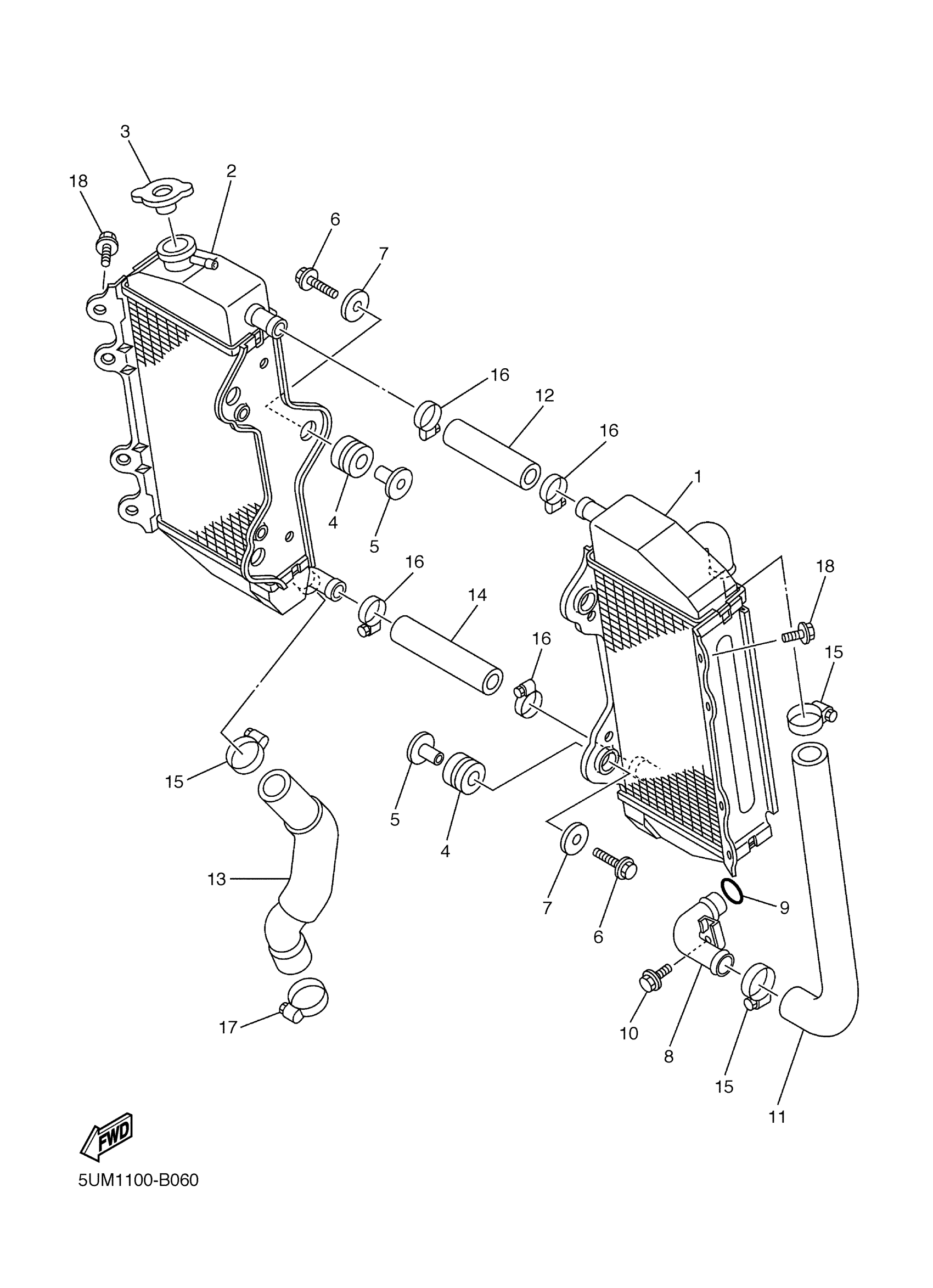

Yamaha WR250FV (WR250F) 5UMB 2006 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

5NL-1240A-10-00

$443.53

2

RADIATOR ASSY

5NL-12461-10-00

Unavailable

3

CAP, RADIATOR

4FL-12462-00-00

$53.09

4

GROMMET(3RB)

90480-15528-00

$6.22

5

COLLAR

90387-06065-00

$8.92

6

BOLT, SMALL FLANGE

95027-06025-00

$2.95

7

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$5.98

8

PIPE 1

5NL-12481-10-00

Unavailable

9

O-RING (22U)

93210-15566-00

$5.39

10

BOLT,SOCKET

91317-06012-00

$5.75

11

HOSE 1

5SG-12576-00-00

Unavailable

12

HOSE 2

5SG-12577-00-00

Unavailable

13

HOSE 3

5SG-12578-00-00

$32.52

14

HOSE 4

5SG-12579-00-00

$6.24

15

HOSE CLAMP ASSY(64X)

90450-22M14-00

$12.87

16

HOSE CLAMP ASSY

90450-18M09-00

$9.82

17

HOSE CLAMP ASSY

90450-32003-00

Unavailable

18

BOLT, FLANGE

95812-06010-00

Unavailable
