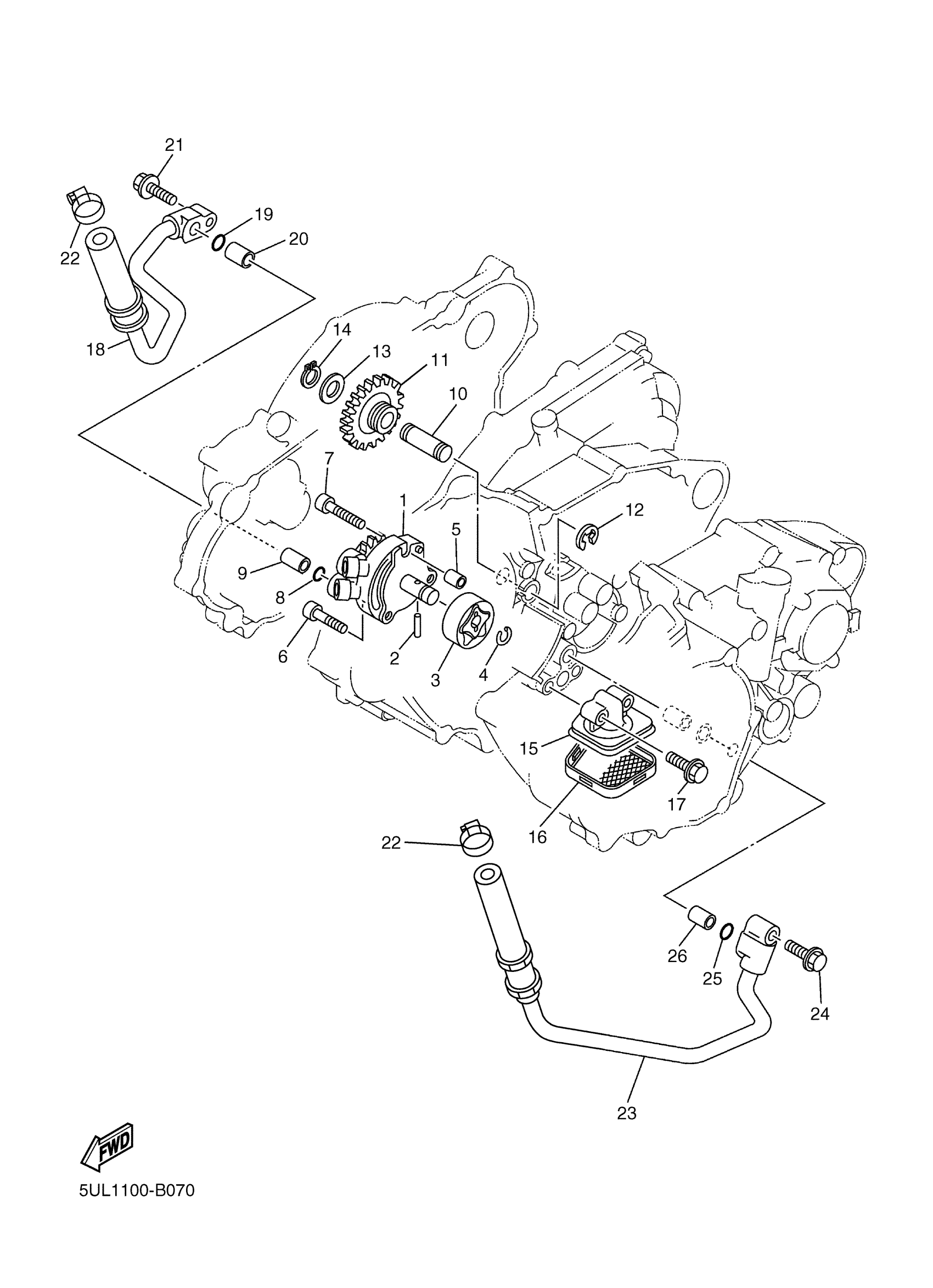

Yamaha WR250FV (WR250F) 5UMB 2006 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

5SG-13300-01-00

$138.31

2

PIN, DOWEL(1HX)

93603-16219-00

$4.89

3

ROTOR ASSY 2

5NL-13320-00-00

$38.52

4

CIRCLIP(1WG)

93440-10153-00

$1.95

5

PIN, DOWEL

99530-08012-00

$4.89

6

BOLT,SOCKET

91317-06025-00

$1.91

7

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

$3.56

8

O-RING (371)

93210-10197-00

$5.47

9

PIN, DOWEL(3VD)

99530-10114-00

$2.13

10

SHAFT, IDLE GEAR

5BE-13342-00-00

$18.52

11

GEAR, OIL PUMP IDLE

5NL-13341-00-00

Unavailable

12

CIRCLIP(2R6)

99001-08600-00

$5.75

13

WASHER PLATE 164185720000

90201-12166-00

$5.86

14

CIRCLIP(10Y)

99009-12400-00

$2.87

15

HOUSING, STRAINER

5NL-13412-00-00

Unavailable

16

STRAINER, OIL

5NL-13411-00-00

Unavailable

17

BOLT, FLANGE

95022-06025-00

Unavailable

18

HOSE, OIL 1

5XC-13464-00-00

Unavailable

19

O-RING (371)

93210-10197-00

$5.47

20

PIN, DOWEL(3VD)

99530-10114-00

$2.13

21

BOLT, FLANGE

95022-06025-00

Unavailable

22

HOSE CLAMP ASSY

90450-18M09-00

$9.82

23

HOSE, OIL 2

5XC-13465-00-00

Unavailable

24

BOLT, FLANGE

95022-06025-00

Unavailable

25

O-RING (371)

93210-10197-00

$5.47

26

PIN, DOWEL(3VD)

99530-10114-00

$2.13
