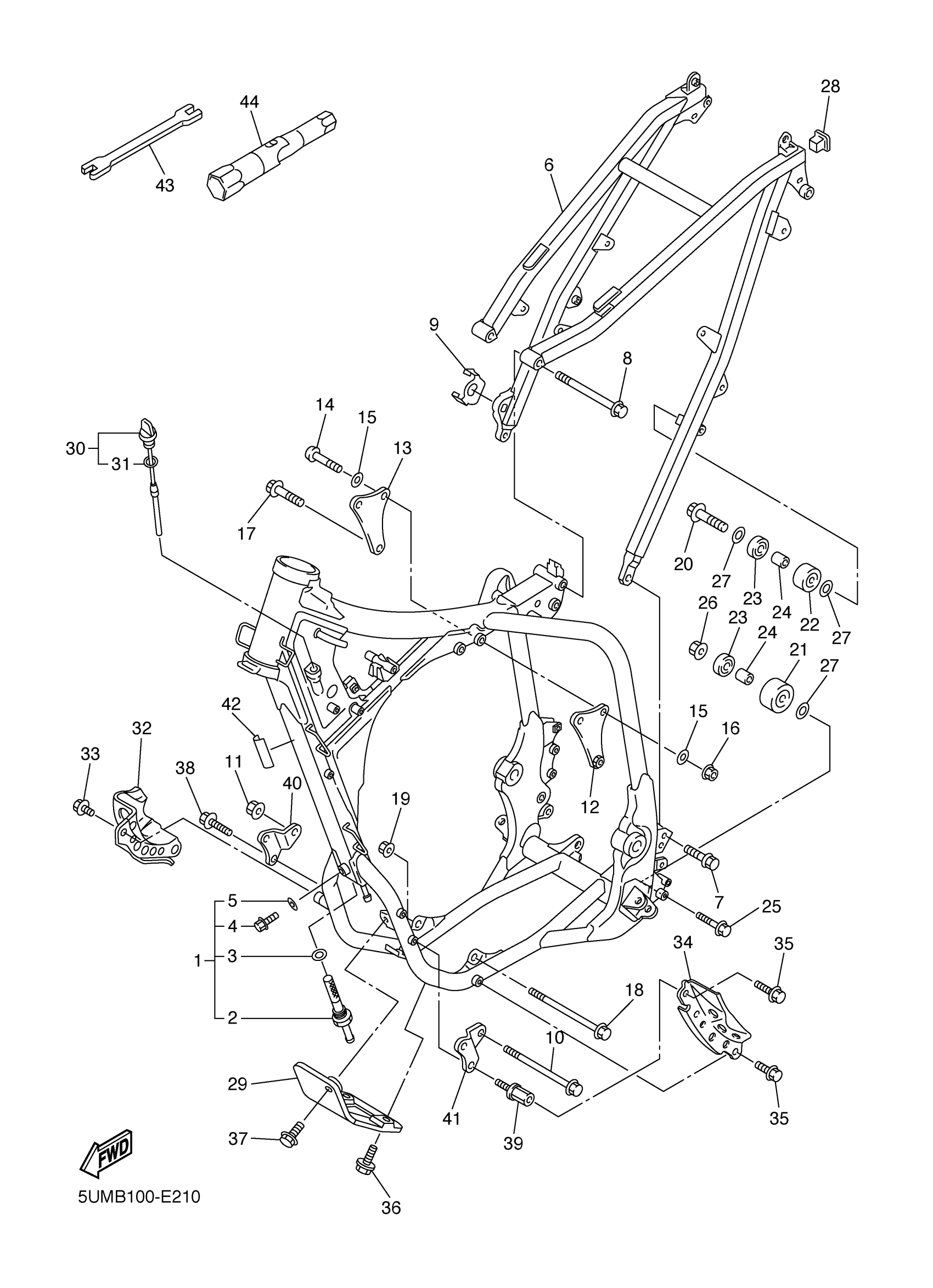

Yamaha WR250FV (WR250F) 5UMB 2006 FRAME Diagram
#
1
FRONT FRAME COMP.
5UM-21101-C0-00
Unavailable
2
NET, FILTER
5TA-21756-00-00
Unavailable
6
REAR FRAME COMP.
5TJ-21190-80-00
Unavailable
9
PLATE, PATCH
5XD-21455-60-00
Unavailable
10
BOLT, FLANGE
90105-10072-00
Unavailable
12
BRACKET, REAR UPPER 1
5NL-21425-00-00
Unavailable
13
BRACKET, REAR UPPER 1
5NL-21425-10-00
Unavailable
16
NUT(4KM)
90179-08674-00
Unavailable
17
BOLT, FLANGE(8AB)
95817-10050-00
Unavailable
18
BOLT, WASHER BASED(3RB)
90105-10733-00
Unavailable
20
BOLT, FLANGE(4MY)
95027-08040-00
Unavailable
21
TENSIONER
3JD-22178-20-00
Unavailable
22
TENSIONER
4EW-22178-01-00
Unavailable
23
BEARING (3X3)
93300-60804-00
Unavailable
24
COLLAR(1NL)
90387-086N4-00
Unavailable
25
BOLT, FLANGE
95024-08065-00
Unavailable
26
NUT, FLANGE(JN5)
95707-08500-00
Unavailable
28
PLUG(8Y1)
90338-18176-00
Unavailable
29
PROTECTOR, ENGINE
5NL-21471-01-00
Unavailable
30
PLUG, OIL LEVEL
5UM-15362-00-00
Unavailable
31
. O-RING
93210-08001-00
Unavailable
32
GUARD, ENGINE 1
5NL-2147A-00-00
Unavailable
33
BOLT, FLANGE(2UJ)
95024-08012-00
Unavailable
34
GUARD, ENGINE 1
5UM-2147A-00-00
Unavailable
35
BOLT, FLANGE(2UJ)
95024-08012-00
Unavailable
36
BOLT, FLANGE(4MY)
95027-06012-00
Unavailable
37
BOLT, WITH WASHER
90119-06001-00
Unavailable
38
BOLT, FLANGE
95814-08016-00
Unavailable
39
BOLT, ENGINE MOUNTING 1
5UM-21481-C0-00
Unavailable
40
BRACKET, FRONT LOWER 1
5XC-21417-50-00
Unavailable
41
BRACKET, FRONT LOWER 1
5UL-21417-10-00
Unavailable
42
PLATE, EPA
5UM-2179C-00-00
Unavailable
43
WRENCH, HEXAGON
5ET-28166-10-00
Unavailable
44
BOX, SPARK PLUG
5TA-2814F-00-00
Unavailable
