Description

Price

1

FENDER, FRONT

1C3-21511-51-00

$32.99

2

COLLAR

90387-06090-00

$8.49

3

BOLT, WITH WASHER (30X)

90119-06096-00

$3.98

4

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

5

LABEL, CAUTION

3FB-2415E-02-00

$4.84

6

REAR FENDER COMP.

5TJ-21610-80-00

$53.99

7

NUT, REAR FENDER

5XD-21635-00-00

$27.99

8

BOLT, WITH WASHER(3RB)

90119-06192-00

$8.49

9

COLLAR

90387-06009-00

$10.49

10

BOLT, WITH WASHER(4JX)

90119-06225-00

$9.49

11

GUARD, FLAP

5TA-21642-00-00

$39.99

12

GROMMET(3LN)

90480-01512-00

$3.18

13

GROMMET(3SX)

90480-14532-00

$4.67

14

INSULATOR, SIDE COVER 2

5TA-2174T-00-00

Unavailable

15

SCREW, TRUSS TAP.

97707-60016-00

$1.70

16

WASHER, PLATE

90201-06557-00

Unavailable

17

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

18

LABEL 5

3XJ-2151H-A1-00

Unavailable

19

EMBLEM 1

5UM-2163G-20-00

Unavailable

20

EMBLEM YAMAHA

4ES-2153E-02-00

$14.49

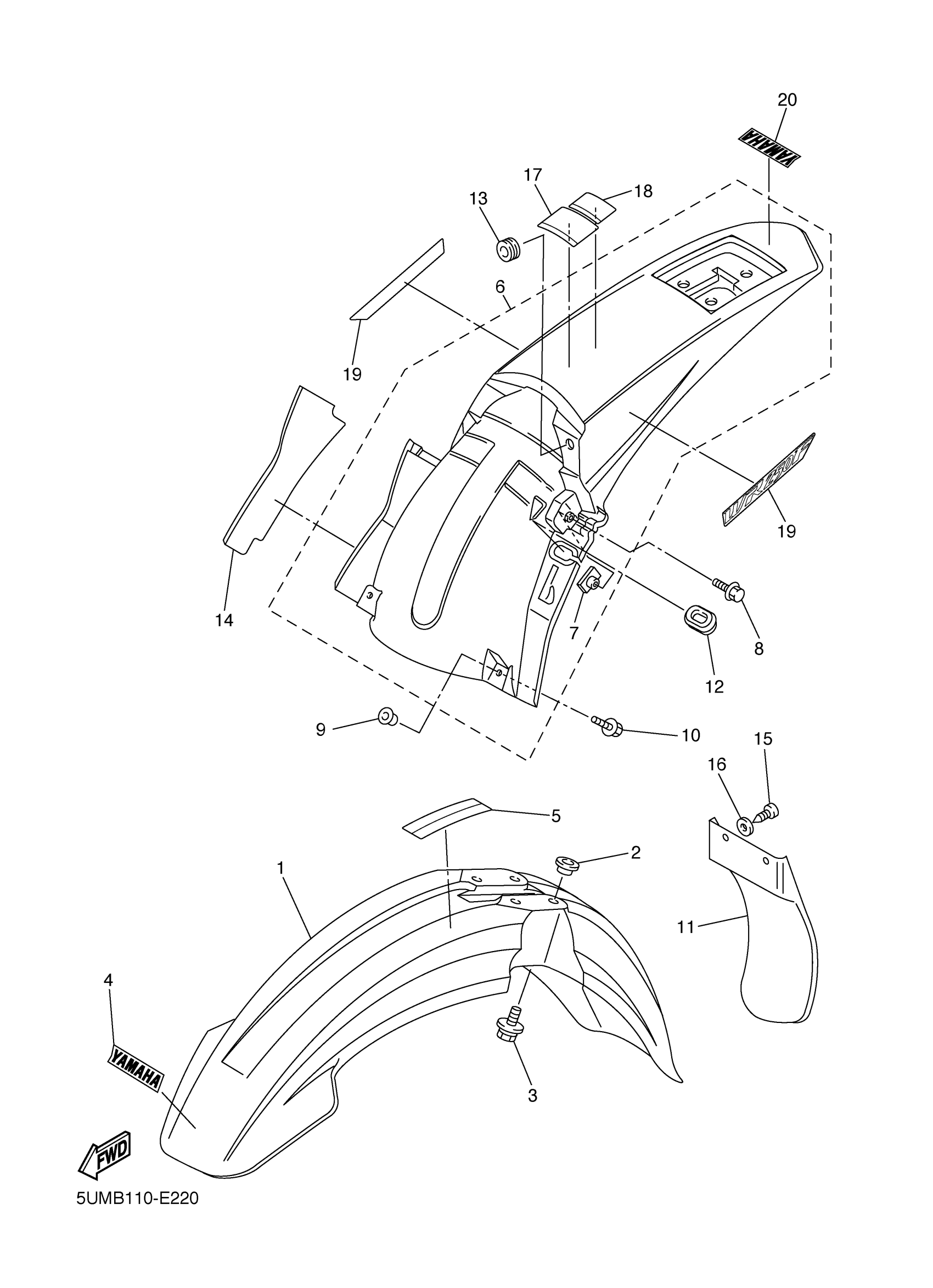

Yamaha WR250FV (WR250F) 5UMB 2006 FENDER Diagram

FENDER, FRONT

COLLAR

BOLT, WITH WASHER (30X)

EMBLEM YAMAHA

LABEL, CAUTION

REAR FENDER COMP.

NUT, REAR FENDER

BOLT, WITH WASHER(3RB)

COLLAR

BOLT, WITH WASHER(4JX)

GUARD, FLAP

GROMMET(3LN)

GROMMET(3SX)

INSULATOR, SIDE COVER 2

SCREW, TRUSS TAP.

WASHER, PLATE

LABEL, CAUTION

LABEL 5

EMBLEM 1

EMBLEM YAMAHA
