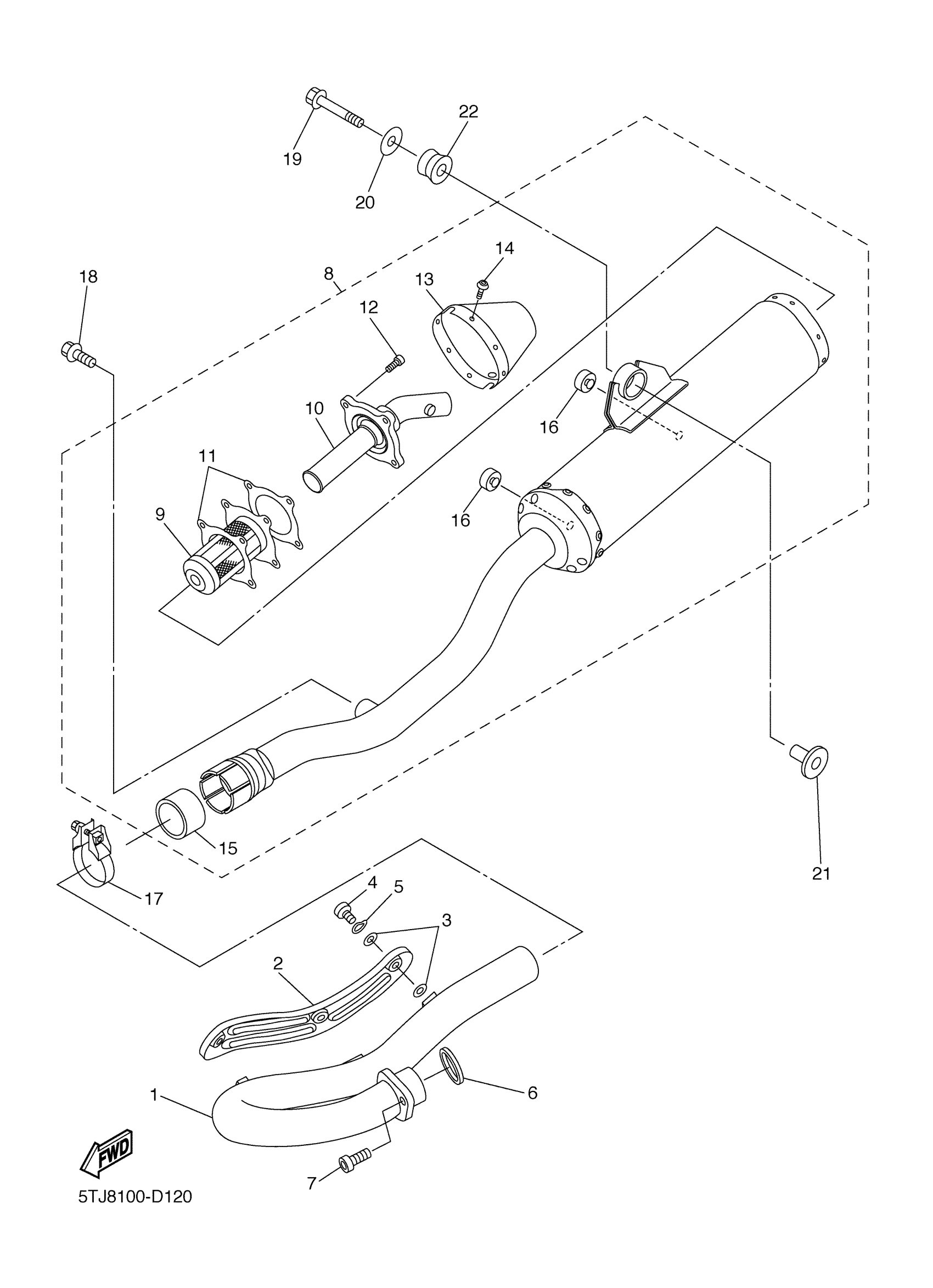

Yamaha WR250FV (WR250F) 5UMB 2006 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

5UM-14611-00-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

5XC-14628-00-00

$92.99

3

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

4

SCREW, BIND(2TV)

98980-06008-00

$3.19

5

WASHER, WAVE(3RW)

90206-06090-00

$8.49

6

GASKET, EXHAUST PIPE

5NL-14613-00-00

$14.49

7

BOLT,SOCKET

91314-08020-00

$8.49

8

MUFFLER ASSY 1

5UM-14710-80-00

Unavailable

9

SPARK ARRESTER ASSY

5TJ-14780-00-00

$96.99

10

PIPE, TAIL

5TJ-14784-00-00

Unavailable

11

GASKET, EXHAUST PIPE

5TJ-14623-00-00

$13.49

12

BOLT

91314-05008-00

Unavailable

13

CAP

5TJ-14799-00-00

$121.99

14

BOLT, BUTTON HEAD

92014-05008-00

$4.08

15

GASKET, MUFFLER

5PH-14714-00-00

$43.99

16

DAMPER, LOCATING 1

22W-24181-00-00

Unavailable

17

BAND, SILENCER

5BE-14788-00-00

Unavailable

18

BOLT, FLANGE

90105-08085-00

Unavailable

19

BOLT, FLANGE

95817-08035-00

Unavailable

20

WASHER, PLATE

90201-08008-00

Unavailable

21

COLLAR

90387-08081-00

Unavailable

22

DAMPER, MUFFLER

5BE-14747-00-00

Unavailable
