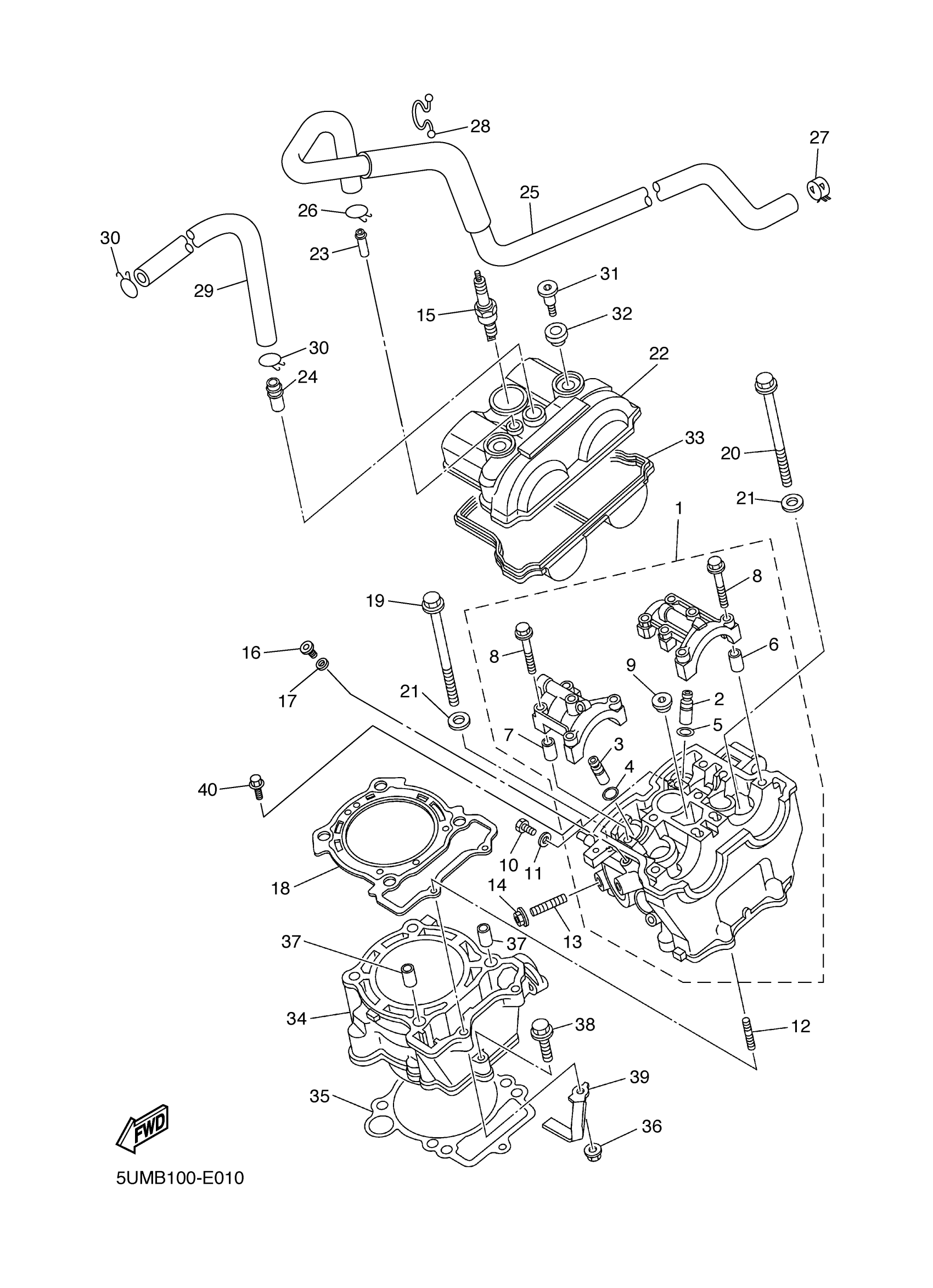

Yamaha WR250FV (WR250F) 5UMB 2006 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

5UM-11101-02-00

Unavailable

2

GUIDE, INTAKE VALVE

5NL-11133-10-00

$44.99

3

GUIDE, EXHAUST VALVE

5NL-11134-10-00

$44.99

4

CIRCLIP(1WG)

93440-10153-00

$2.39

5

CIRCLIP(1HX)

93440-07149-00

$8.49

6

PIN, DOWEL(3XW)

91808-16023-00

$8.49

7

PIN, DOWEL(3XW)

91808-16023-00

$8.49

8

BOLT, WASHER BASED

90105-06027-00

$7.49

9

PLUG, STRAIGHT SCREW(1HX)

90340-12112-00

Unavailable

10

BOLT, FLANGE

95022-06010-00

$5.60

11

GASKET 256113960000

90430-06014-00

Unavailable

12

BOLT, STUD(3MA)

90116-06541-00

$9.49

13

BOLT, STUD

95612-08620-00

$7.49

14

NUT,FLANGE(J10)

95702-08500-00

$1.43

15

CR8E NGK SPLUG 4PK

CR8-E0000-00-00

Unavailable

15

CR9E NGK SPLUG 4PK

CR9-E0000-00-00

Unavailable

16

PLUG, STRAIGHT SCREW(1HX)

90340-12112-00

Unavailable

17

WASHER, PLATE

90201-12790-00

Unavailable

18

GASKET, CYLINDER HEAD 1

5NL-11181-00-00

Unavailable

19

BOLT, FLANGE

90105-09004-00

Unavailable

20

BOLT, WASHER BASED

90105-09002-00

Unavailable

21

WASHER, PLATE(1AA)

90201-096J9-00

Unavailable

22

COVER, CYLINDER HEAD 1

5NL-11191-10-00

Unavailable

23

PIPE, BREATHER 2

5BE-11167-00-00

Unavailable

24

PIPE, BREATHER 2

371-11167-01-00

Unavailable

25

PIPE, BREATHER 1

5TJ-11166-00-00

Unavailable

26

CLIP (371)

90467-14015-00

Unavailable

27

CLIP

90468-08104-00

Unavailable

28

CLAMP

90464-25267-00

Unavailable

29

HOSE (L700)

90445-117F2-00

Unavailable

30

CLIP(1JH)

90467-11106-00

Unavailable

31

BOLT(4BP)

90109-066F0-00

Unavailable

32

RUBBER, MOUNT 1

5EA-1111G-00-00

Unavailable

32

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

33

GASKET, HEAD COVER 1

5NL-11193-00-00

Unavailable

34

CYLINDER 1

5XC-11311-20-00

Unavailable

35

GASKET, CYLINDER

5NL-11351-00-00

Unavailable

36

NUT, FLANGE

95702-06500-00

Unavailable

37

PIN, DOWEL(4XL)

93612-16254-00

Unavailable

38

BOLT, FLANGE

95022-06035-00

Unavailable

39

CLAMP, HOSE 1

5UM-11387-00-00

Unavailable

40

BOLT, FLANGE

95817-06014-00

Unavailable
