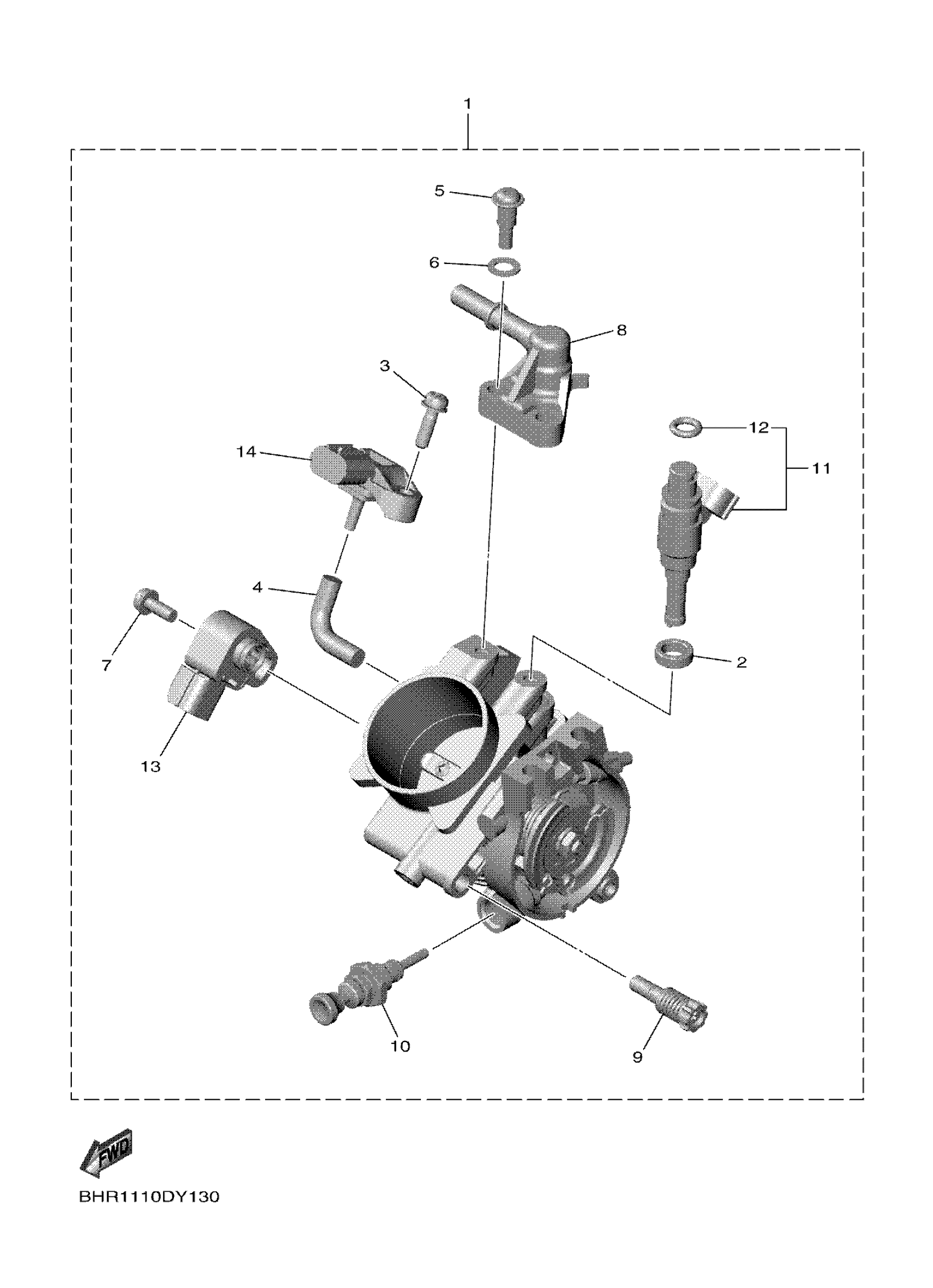

Yamaha WR250FT1 (WR250F) DP23 2026 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

BXB-13750-00-00

Unavailable

2

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

3

SCREW

2C0-14216-00-00

$3.28

4

PIPE 1

BR9-14348-00-00

Unavailable

5

SCREW, ROD

BR9-14486-00-00

$4.56

6

GASKET

363-14198-00-00

$10.99

7

SCREW

8CC-14216-10-00

$7.99

8

PIPE

BHR-13938-00-00

$31.99

9

ADJUST SCREW SET

5VX-14503-00-00

$85.99

10

STARTER SET

BR9-1410A-01-00

Unavailable

11

INJECTOR ASSY

4C8-13761-00-00

$171.99

12

O-RING

5PS-14147-00-00

$13.49

13

THROTTLE SENSOR AS

BR9-85885-01-00

$71.99

14

SENSOR, PRESSURE

1WS-82380-00-00

$193.99
