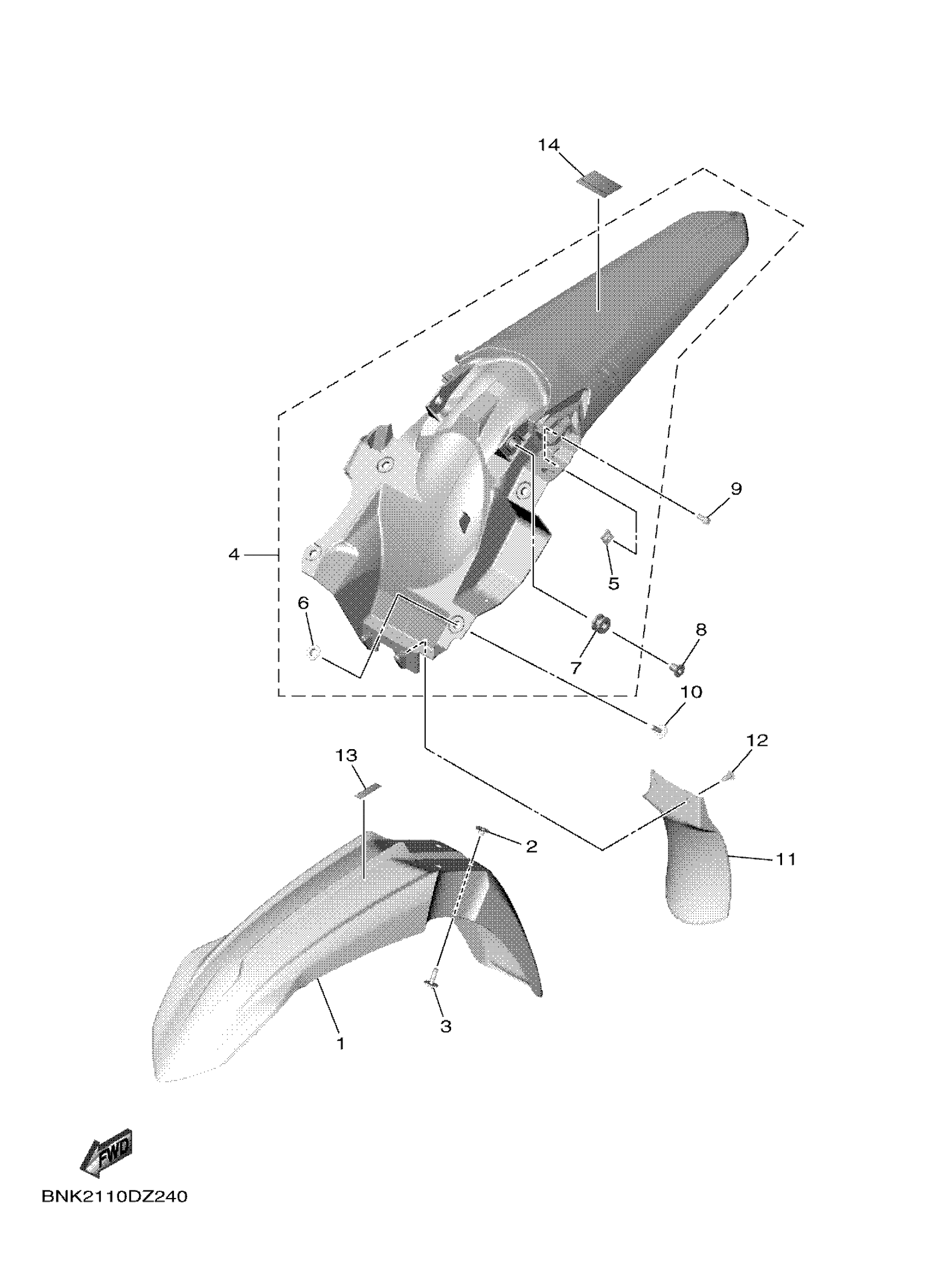

Yamaha WR250FT1 (WR250F) DP23 2026 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

BR9-21511-00-00

$26.67

2

COLLAR

90387-06259-00

$5.76

3

BOLT, WITH WASHER

90119-06268-00

$1.93

4

REAR FENDER COMP.

BNK-21610-00-00

$40.58

5

NUT, REAR FENDER

5XE-21635-10-00

$11.84

6

COLLAR

5BE-21749-00-00

$4.48

7

GROMMET(3SX)

90480-14532-00

$4.07

8

COLLAR

90387-06136-00

$5.30

9

BOLT, FLANGE

90105-06100-00

$5.20

10

BOLT, WITH WASHER

90119-06268-00

$1.93

11

GUARD, FLAP

3D7-21642-00-00

$22.84

12

SCREW, TAPPING

97702-60016-00

$1.15

13

LABEL, CAUTION

3FB-2415E-03-00

$2.80

14

LABEL, CAUTION

5PA-2118K-01-00

Unavailable
