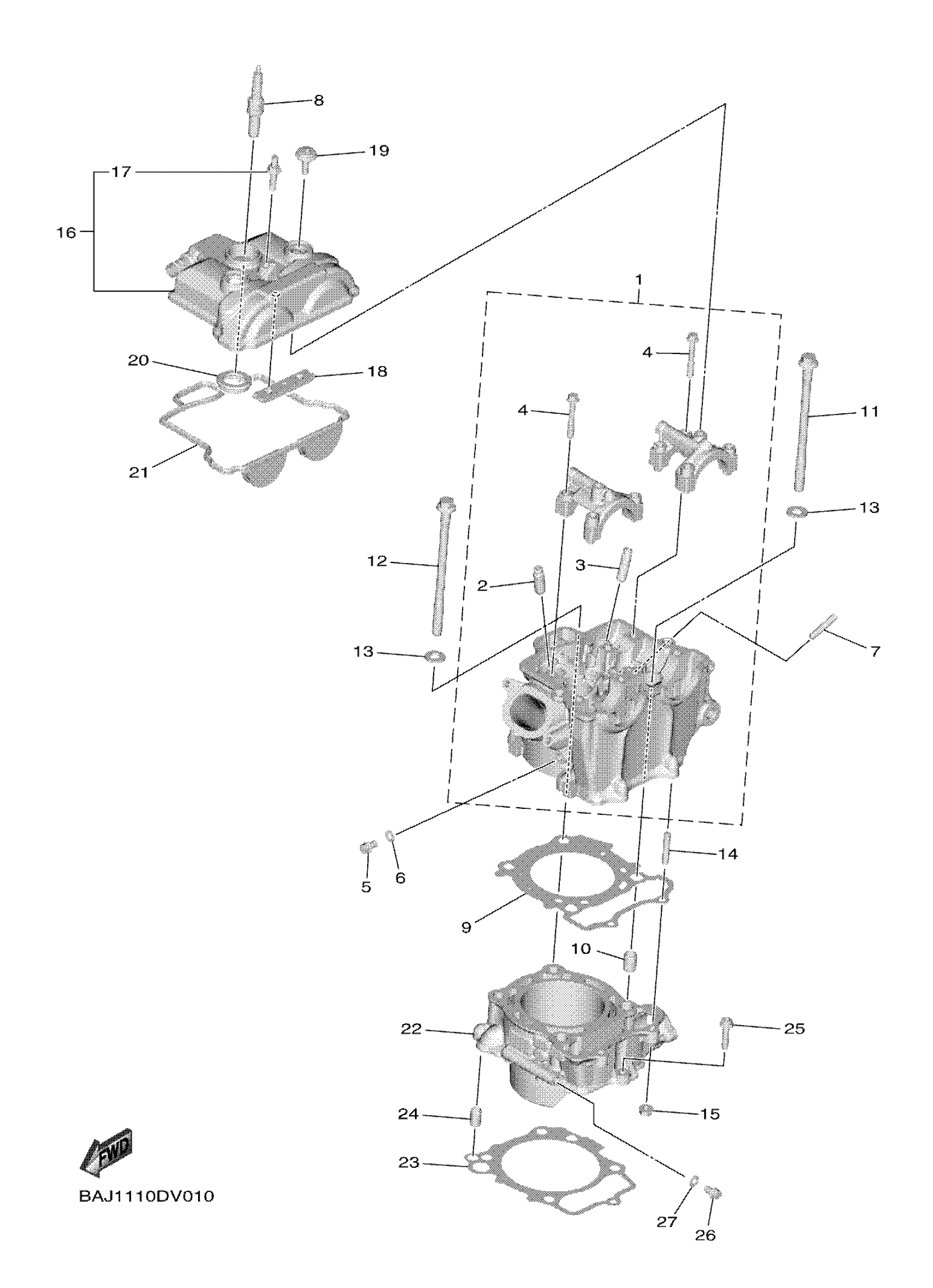

Yamaha WR250FT1 (WR250F) DP23 2026 CYLINDER Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

B7B-11101-19-00

$769.99

2

GUIDE, VALVE 1

B7B-11133-10-00

$226.99

3

GUIDE, VALVE 1

3D7-11133-10-00

$57.99

4

BOLT, WASHER BASED

90105-06027-00

$7.49

5

BOLT, FLANGE DEEP RECESS

95E32-06010-00

$0.91

6

GASKET 256113960000

90430-06014-00

Unavailable

7

BOLT, STUD

90116-06037-00

$3.93

8

PLUG, SPARK

94701-00444-00

$45.99

9

GASKET, CYLINDER HEAD 1

B7B-11181-00-00

$31.99

10

PIN, DOWEL(4XL)

93612-16254-00

$5.60

11

BOLT, FLANGE

90105-09004-00

$13.99

12

BOLT, WASHER BASED

90105-09002-00

$15.99

13

WASHER, PLATE(1AA)

90201-096J9-00

$4.41

14

BOLT, STUD

90116-06037-00

$3.93

15

NUT, FLANGE

95702-06500-00

$2.39

16

COVER, CYLINDER HEAD 1

B7B-11190-00-00

Unavailable

17

BOLT, STUD

90116-06049-00

Unavailable

18

GUIDE, STOPPER 2

5BE-12241-01-00

Unavailable

19

BOLT, COVER HEAD

5UM-1119E-00-00

Unavailable

20

GASKET, HEAD COVER 2

1SM-11194-00-00

Unavailable

21

GASKET, HEAD COVER 1

1SM-11193-00-00

Unavailable

22

CYLINDER 1

B7B-11311-00-00

Unavailable

23

GASKET, CYLINDER

B7B-11351-00-00

Unavailable

24

PIN, DOWEL(2VG)

99530-10116-00

Unavailable

25

BOLT, HEXAGON SOCKET HEAD

90110-06380-00

Unavailable

26

BOLT, FLANGE DEEP RECESS

95E32-06010-00

$0.91

27

GASKET 256113960000

90430-06014-00

Unavailable
