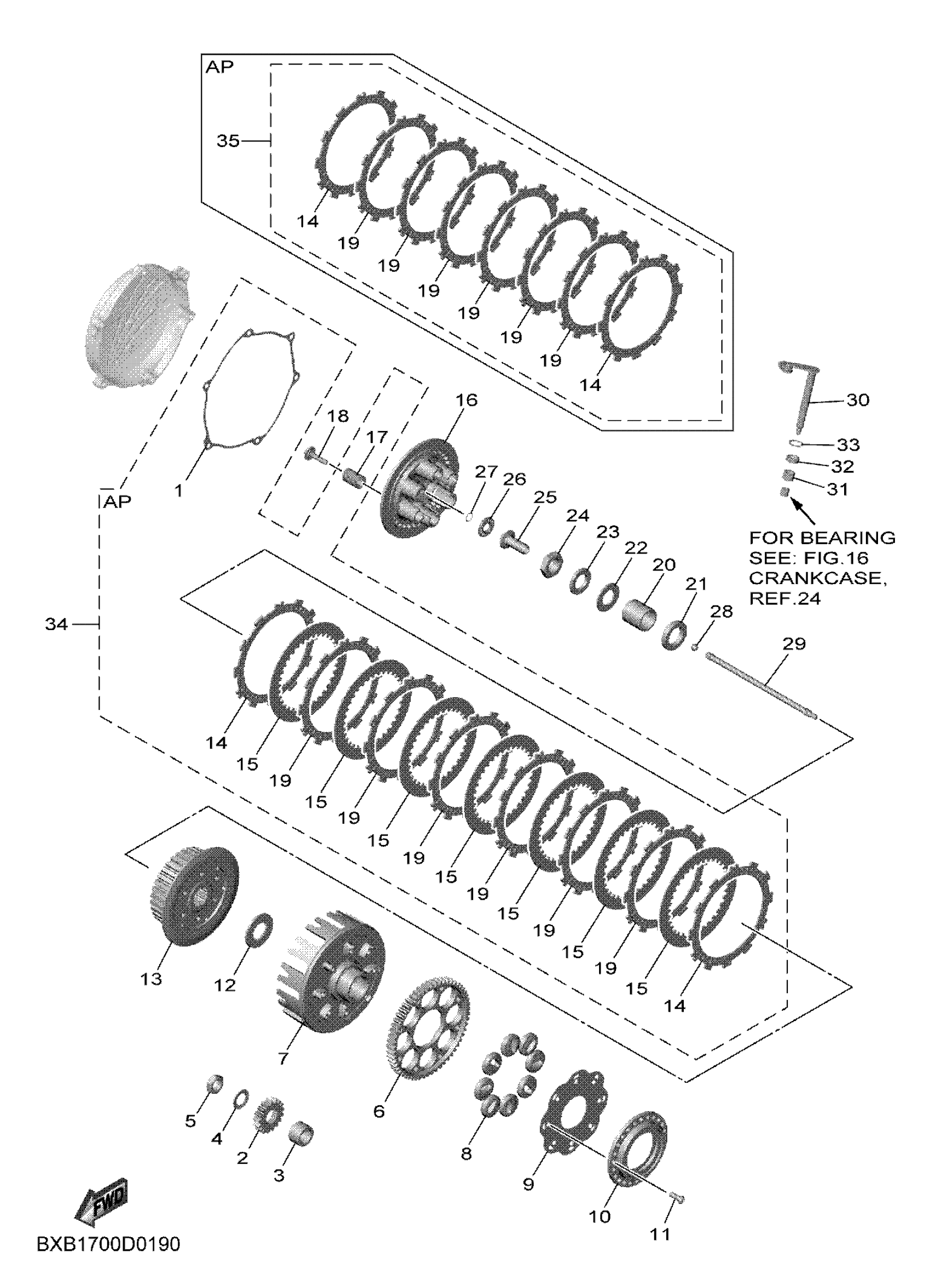

Yamaha WR250FT1 (WR250F) DP23 2026 CLUTCH Diagram

#

Description
Price

1

GASKET

B7B-15453-00-00

$14.99

2

GEAR, PRIMARY DRIVE

B7B-16111-00-00

Unavailable

3

COLLAR

90387-19010-00

Unavailable

4

WASHER (517 CLUTCH)

90208-16019-00

$8.49

5

NUT

90170-16010-00

$12.49

6

GEAR, PRIMARY DRIVEN

B7B-16151-00-00

Unavailable

7

CLUTCH HOUSING ASSY

B7B-16310-10-00

$199.99

8

ABSORBER

5XC-16165-00-00

$9.99

9

PLATE, SIDE

B7B-16158-00-00

Unavailable

10

STARTER CLUTCH ASS

B7B-15570-10-00

$243.99

11

SCREW

90149-06161-00

$7.49

12

PLATE, THRUST 1

5XD-16154-00-00

$15.49

13

BOSS, CLUTCH

B7B-16371-00-00

$129.99

14

PLATE, FRICTION

B7B-16321-00-00

$20.99

15

PLATE, CLUTCH 2

BAJ-16325-00-00

$7.49

16

PLATE, PRESSURE 1

B7B-16351-00-00

Unavailable

17

SPRING, COMPRESSIO

90501-230A9-00

Unavailable

18

SCREW, WITH WASHER

90159-06061-00

Unavailable

19

PLATE, FRICTION

2CR-16321-00-00

Unavailable

20

SPACER 1

B7B-16181-00-00

Unavailable

21

COLLAR

90387-25038-00

Unavailable

22

WASHER, PLATE

90201-20030-00

Unavailable

23

WASHER, CONICAL SPRING

90208-20001-00

Unavailable

24

NUT

90179-20022-00

Unavailable

25

ROD, PUSH 1

BR9-16356-00-00

Unavailable

26

BEARING, THRUST(2FL)

93340-21209-00

Unavailable

27

CIRCLIP (4G0)

93440-10085-00

Unavailable

28

BALL (498)

93511-32027-00

Unavailable

29

ROD, PUSH 2

B7B-16357-00-00

Unavailable

30

PUSH LEVER COMP.

B7B-16381-00-00

Unavailable

31

BEARING

93317-11096-00

Unavailable

32

OIL SEAL

93102-10008-00

Unavailable

33

CIRCLIP

99009-18500-00

Unavailable

34

CLUTCH PLATE KIT

BAJ-W001G-10-00

Unavailable

35

FRICTION PLATE KIT

BAJ-W001M-00-00

Unavailable
