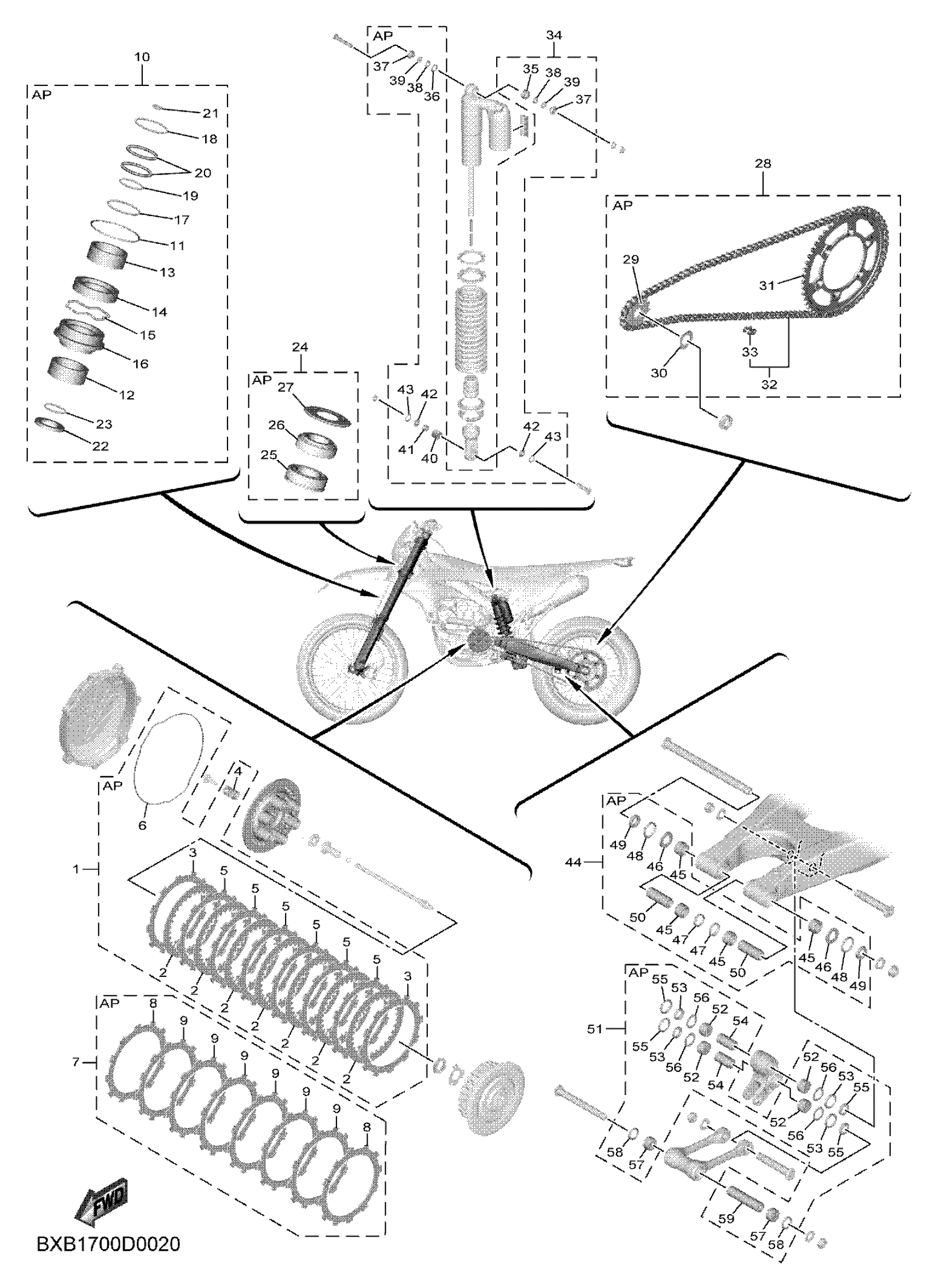

Yamaha WR250FT1 (WR250F) DP23 2026 3 MAINTENANCE PARTS KIT Diagram

#

Description
Price

1

CLUTCH PLATE KIT

BAJ-W001G-10-00

$150.99

2

PLATE, CLUTCH 2

BAJ-16325-00-00

$7.49

3

PLATE, FRICTION

B7B-16321-00-00

$20.99

4

SPRING, COMPRESSIO

90501-230A9-00

$4.41

5

PLATE, FRICTION

2CR-16321-00-00

$28.99

6

GASKET

B7B-15453-00-00

$14.99

7

FRICTION PLATE KIT

BAJ-W001M-00-00

$126.99

8

PLATE, FRICTION

B7B-16321-00-00

$20.99

9

PLATE, FRICTION

2CR-16321-00-00

$28.99

10

FORK SEAL KIT (ONE FORK)

BHR-W003B-00-00

$53.99

11

RING, SNAP

17D-23153-00-00

$4.63

12

PISTON, FRONT FORK

5XE-23171-L0-00

$27.99

13

METAL, SLIDE 1

5XE-23125-L0-00

$25.99

14

OIL SEAL

B29-23145-00-00

$22.99

15

RING, SNAP

5XE-23153-L0-00

$7.99

16

SEAL, DUST

BHR-23144-00-00

Unavailable

17

O-RING

1C3-23147-L1-00

Unavailable

18

O-RING

1C3-23188-L2-00

Unavailable

19

O-RING

1C3-23188-P0-00

Unavailable

20

O-RING

1AE-23147-01-00

Unavailable

21

O-RING

1C3-23188-R1-00

Unavailable

22

GASKET

2HH-23158-L0-00

Unavailable

23

GASKET

276-23114-02-00

Unavailable

24

STEERING BEARING KIT

BNK-W000B-00-00

Unavailable

25

BEARING(4SR)

93332-00081-00

Unavailable

26

BEARING(4EW)

93332-00078-00

Unavailable

27

COVER, BALL RACE 2

17D-23416-50-00

Unavailable

28

CHAIN & SPROCKET KIT

BAK-W001A-00-00

Unavailable

29

SPROCKET, DRIVE (13T)

9383B-13218-00

Unavailable

30

WASHER, LOCK

90215-20003-00

Unavailable

31

SPROCKET, DRIVEN (51T)

BAK-25451-00-00

Unavailable

32

CHAIN

9Y582-50113-00

Unavailable

33

JOINT, CHAIN

94682-50021-00

Unavailable

34

SHOCK BEARING KIT

1SS-W002G-00-00

Unavailable

35

BUSH, SHOCK ABSORBER LOWER

4JX-22226-00-00

Unavailable

36

CIRCLIP

5DH-23183-00-00

Unavailable

37

COLLAR, DISTANCE

1C3-22253-50-00

Unavailable

38

SEAL, DUST

3JE-22475-00-00

Unavailable

39

SEAL, RING

4EW-22474-00-00

Unavailable

40

BEARING

5UN-22176-00-00

Unavailable

41

BUSH

5MV-22184-00-00

Unavailable

42

COLLAR, DISTANCE

1C3-22253-L1-00

Unavailable

43

SEAL, DUST

5NY-22475-00-00

Unavailable

44

SWING ARM PIVOT BEARING KIT

BR9-W002C-00-00

Unavailable

45

BEARING, CYLINDRICAL(2VM)

93317-22262-00

Unavailable

46

BEARING

93342-22217-00

Unavailable

47

OIL SEAL

93106-22002-00

Unavailable

48

OIL SEAL (36F)

93109-28043-00

Unavailable

49

COLLAR

90387-17019-00

Unavailable

50

COLLAR

90387-1714S-00

Unavailable

51

SHOCK LINKAGE BEARING KIT

33D-W002E-00-00

Unavailable

52

BEARING

93315-32166-00

Unavailable

53

OIL SEAL

93109-25001-00

Unavailable

54

COLLAR

90387-16026-00

Unavailable

55

WASHER

90209-16011-00

Unavailable

56

WASHER, PLATE

90201-21014-00

Unavailable

57

BEARING

93315-32166-00

Unavailable

58

OIL SEAL

93109-21001-00

Unavailable

59

COLLAR

90387-14016-00

Unavailable
