Description

Price

1

GEAR, IMPELLER SHAFT

5XC-12459-00-00

$135.99

2

WASHER, PLATE (5F7)

90201-08512-00

$8.49

3

CIRCLIP

93440-07182-00

$3.78

4

IMPELLER, WATER PUMP

5DH-12451-00-00

$91.99

5

WASHER, PLATE (5F7)

90201-08512-00

$8.49

6

OIL SEAL

93109-11073-00

$11.49

7

OIL SEAL (12X22X5-371)

93102-12106-00

$11.49

8

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

9

COVER, HOUSING

5NL-12422-10-00

$112.99

10

O-RING

5NL-12439-00-00

Unavailable

11

PIN,DOWEL (603)

93604-10011-00

$8.49

12

GASKET 256113960000

90430-06014-00

Unavailable

13

BOLT, SMALL FLANGE

95027-06025-00

$4.16

14

BOLT, SMALL FLANGE

95027-06065-00

$3.28

15

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

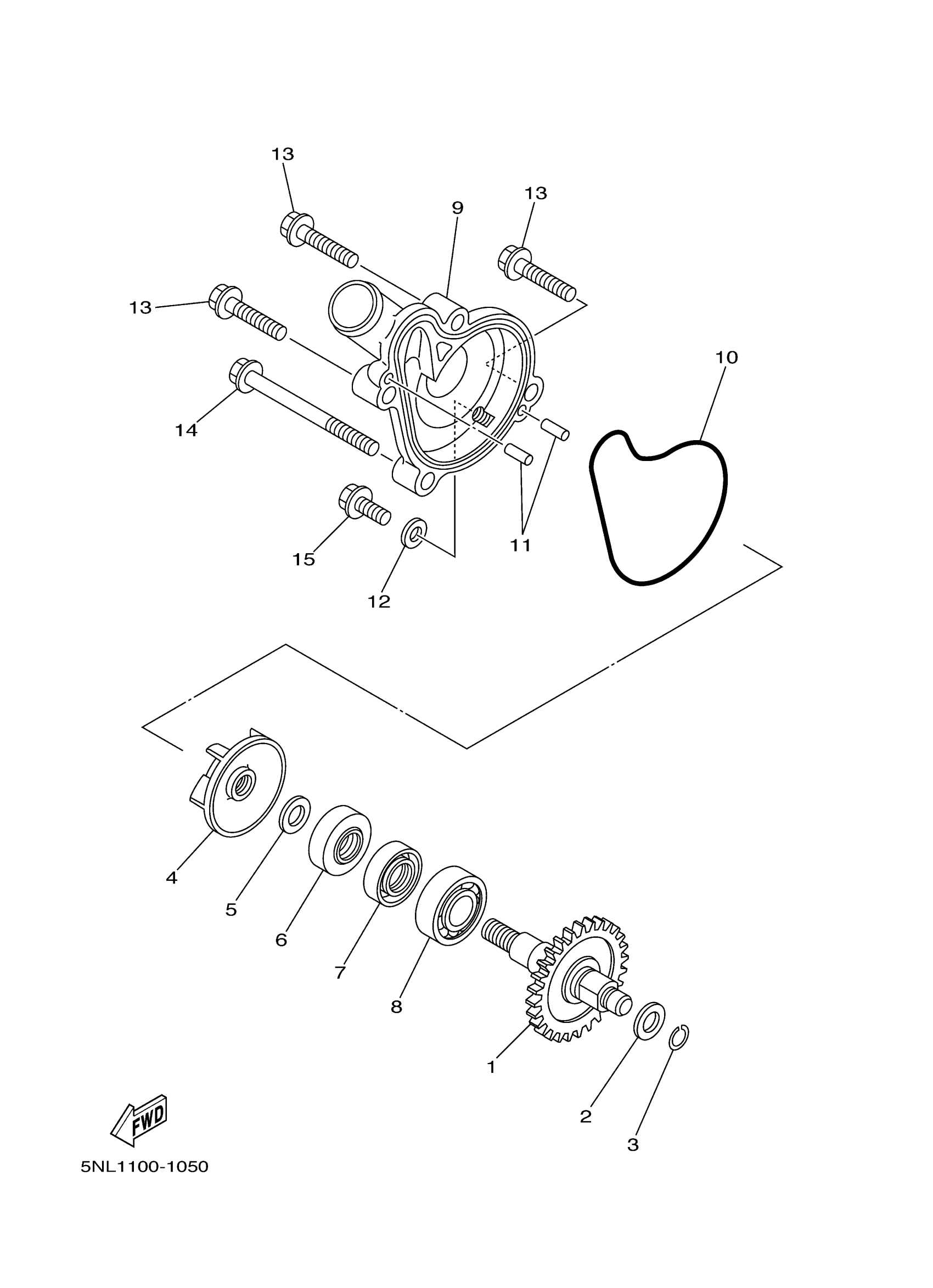

Yamaha WR250FT (WR250F) 5UM8 2005 WATER PUMP Diagram

GEAR, IMPELLER SHAFT

WASHER, PLATE (5F7)

CIRCLIP

IMPELLER, WATER PUMP

WASHER, PLATE (5F7)

OIL SEAL

OIL SEAL (12X22X5-371)

BRG,R-B 6001 28MM 28G KY

COVER, HOUSING

O-RING

PIN,DOWEL (603)

GASKET 256113960000

BOLT, SMALL FLANGE

BOLT, SMALL FLANGE

BOLT, FLANGE(4MY)
