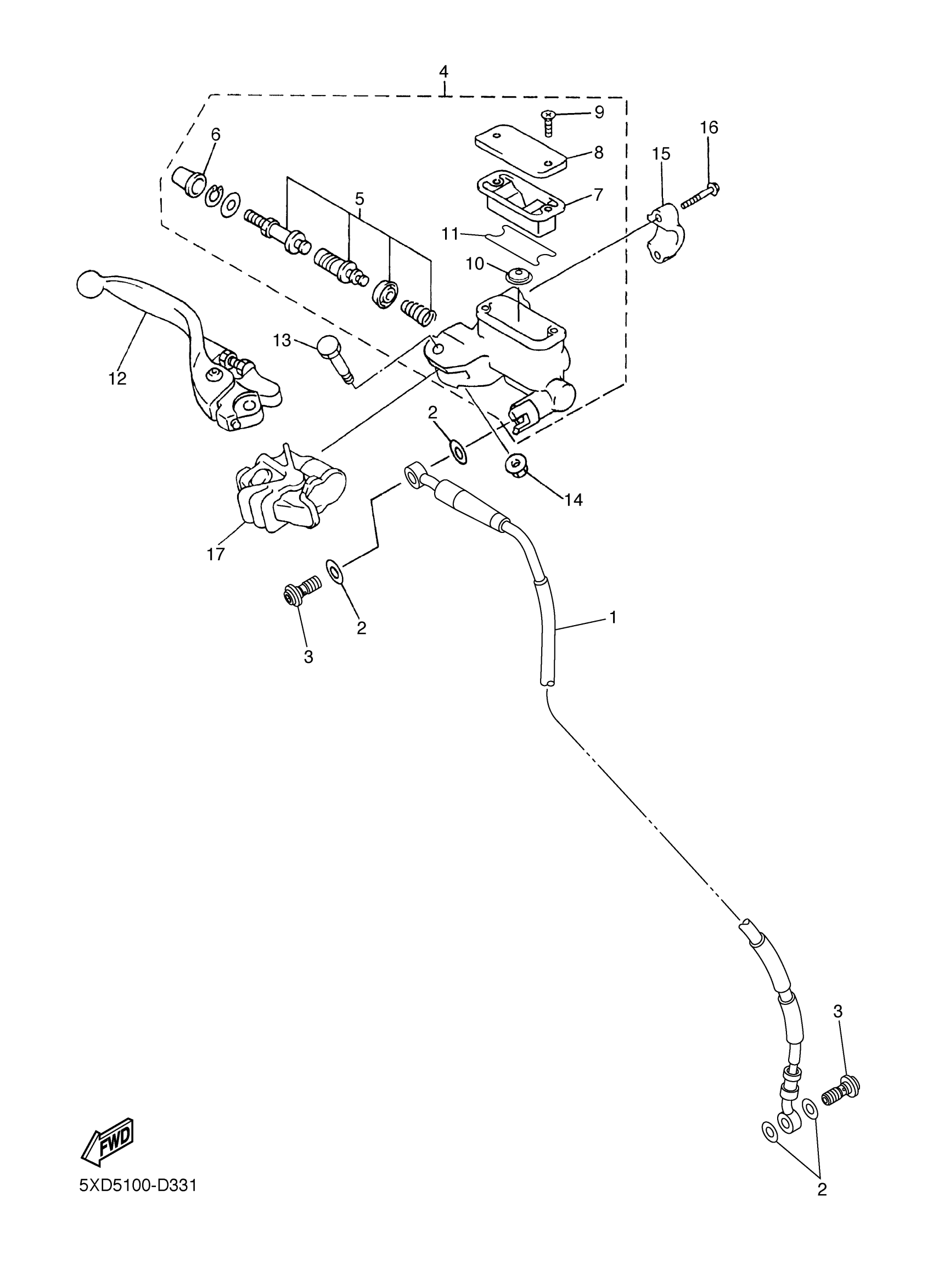

Yamaha WR250FT (WR250F) 5UM8 2005 FRONT MASTER CYLINDER Diagram

HOSE, BRAKE 1

5TJ-25872-80-00

$232.99

WASHER, PLATE(481)

90201-10118-00

Unavailable

BOLT, UNION

90401-10172-00

$5.60

MASTER CYLINDER SUB ASSY

5XE-W2587-01-00

$185.99

CYLINDER KIT, MASTER

5NY-W0041-01-00

$55.99

BOOT, MASTER CYLINDER

5NY-25868-00-00

$8.99

DIAPHRAGM, RESERVOIR

5XE-25854-00-00

$15.49

CAP, RESERVOIR

5MV-25852-01-00

$13.49

SCREW, FLAT

98707-04012-00

$2.18

SEPARATOR ASSY

5CG-25715-00-00

$13.49

FLOAT, RESERVOIR

5XE-25853-00-00

$7.99

LEVER 2

5MV-83922-00-00

$51.99

BOLT, LEVER

5MV-2589F-00-00

$6.99

NUT, FLANGE(7NB)

95780-06500-00

$2.60

BRACKET, MASTER CYLINDER

5MV-25867-00-00

$20.99

BOLT, FITTING

5MV-25833-00-00

Unavailable

COVER, HANDLE LEVER 1

5NY-26372-00-00

Unavailable
