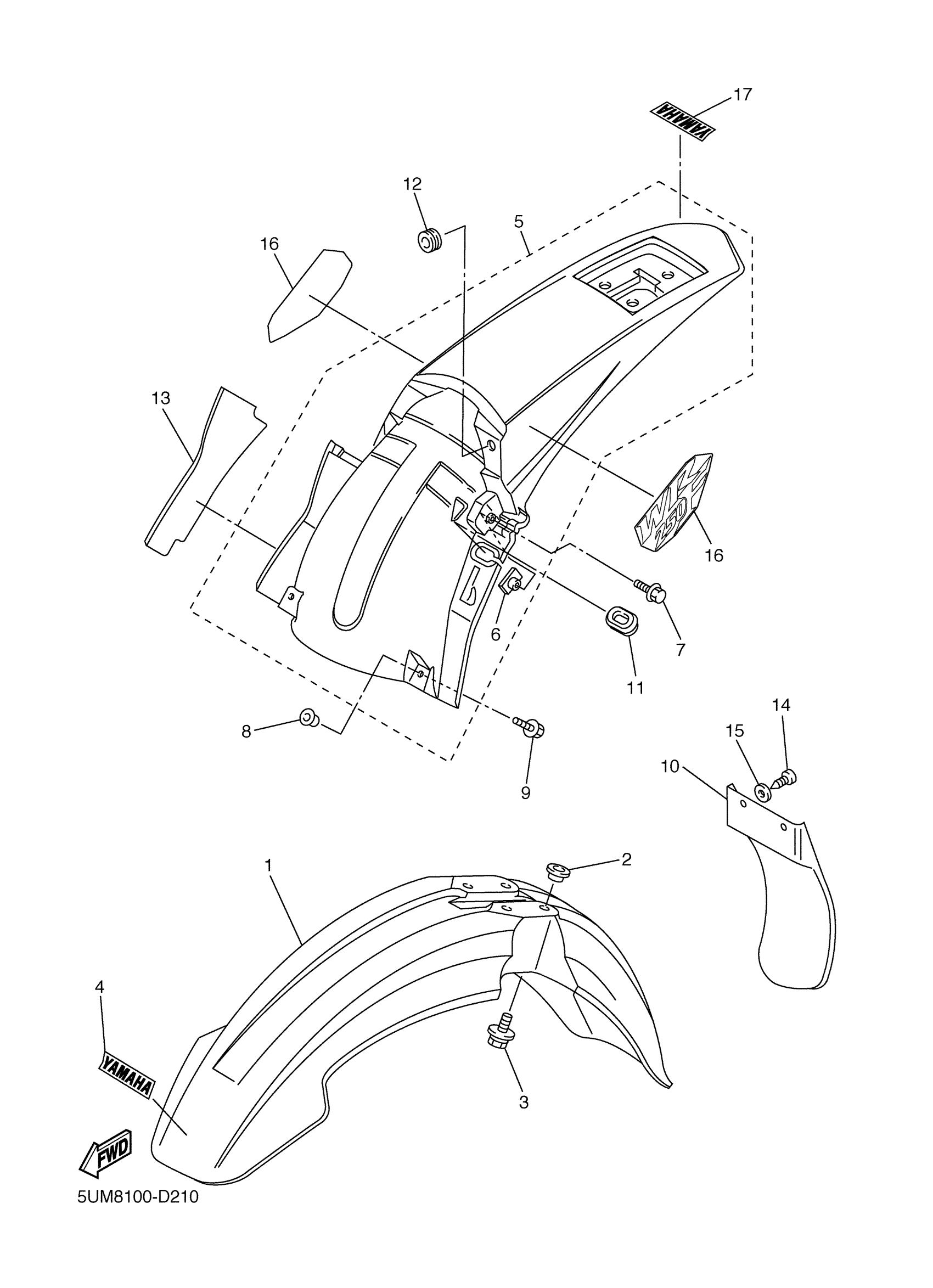

Yamaha WR250FT (WR250F) 5UM8 2005 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

5HD-21511-00-00

$34.08

2

COLLAR

90387-06090-00

$5.93

3

BOLT, WITH WASHER (30X)

90119-06096-00

$2.88

4

EMBLEM YAMAHA

4ES-2153E-02-00

Unavailable

5

REAR FENDER COMP.

5TJ-21610-80-00

$56.99

6

NUT, REAR FENDER

5XD-21635-00-00

$21.80

7

BOLT, WITH WASHER(3RB)

90119-06192-00

$5.76

8

COLLAR

90387-06009-00

$7.37

9

BOLT, WITH WASHER(4JX)

90119-06225-00

$6.15

10

GUARD, FLAP

5TA-21642-00-00

$32.59

11

GROMMET(3LN)

90480-01512-00

$4.02

12

GROMMET(3SX)

90480-14532-00

$4.07

13

INSULATOR, SIDE COVER 2

5TA-2174T-00-00

Unavailable

14

SCREW, TRUSS TAP.

97707-60016-00

$0.98

15

WASHER, PLATE

90201-06557-00

$2.57

16

EMBLEM 1

5UM-2163G-59-00

Unavailable

17

EMBLEM YAMAHA

4ES-2153E-02-00

Unavailable
