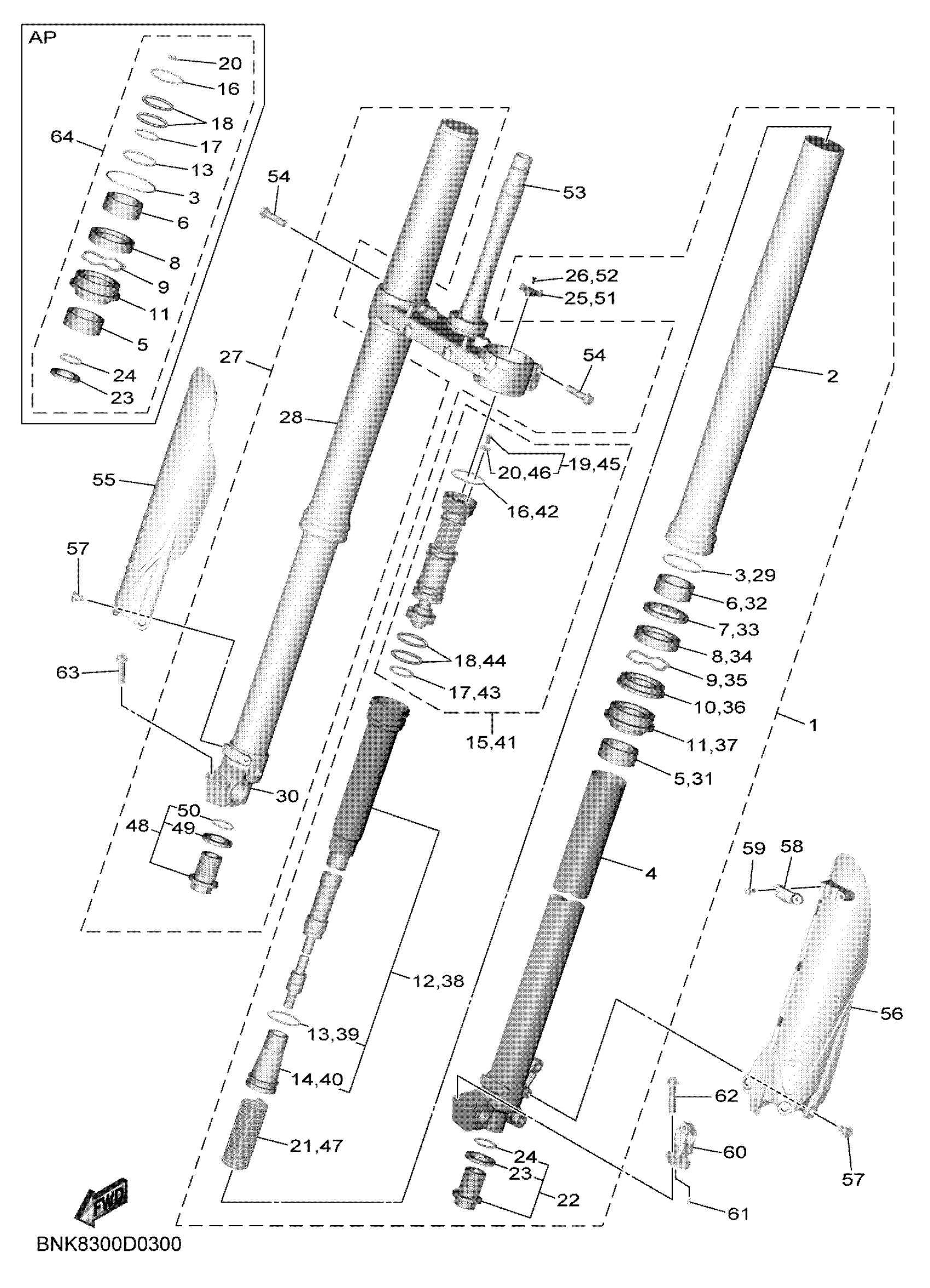

Yamaha WR250FS1 (WR250F) BXB2 2025 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L

BXB-23102-00-00

$1,076.99

2

TUBE, OUTER

33D-23136-00-00

$581.99

3

RING, SNAP

17D-23153-00-00

$4.63

4

INNER TUBE COMP.2

BNK-23120-00-00

$350.99

5

PISTON, FRONT FORK

5XE-23171-L0-00

$27.99

6

METAL, SLIDE 1

5XE-23125-L0-00

$25.99

7

WASHER, OIL SEAL

5XC-23146-10-00

$14.49

8

OIL SEAL

B29-23145-00-00

$22.99

9

RING, SNAP

5XE-23153-L0-00

$7.99

10

SCRAPER

B29-4381D-00-00

$17.99

11

SEAL, DUST

BHR-23144-00-00

$22.99

12

CYLINDER COMP., FR

BXB-23170-00-00

$640.99

13

O-RING

1C3-23147-L1-00

$3.48

14

SEAT, SPRING UPPER

BR9-23142-01-00

$58.99

15

VALVE COMP.

BXB-2316A-00-00

$348.99

16

O-RING

1C3-23188-L2-00

Unavailable

17

O-RING

1C3-23188-P0-00

Unavailable

18

O-RING

1AE-23147-01-00

Unavailable

19

AIR VALVE COMP.

1C3-23190-L1-00

Unavailable

20

O-RING

1C3-23188-R1-00

Unavailable

21

SPRING, FRONT FORK (K=4.6)

BR9-23141-30-00

Unavailable

22

BOLT, CAP

5XC-23111-01-00

Unavailable

23

GASKET

2HH-23158-L0-00

Unavailable

24

GASKET

276-23114-02-00

Unavailable

25

CAP

BHR-2319W-00-00

Unavailable

26

SCREW

1MC-23119-10-00

Unavailable

27

FRONT FORK ASSY (R

BXB-23103-00-00

Unavailable

28

TUBE, OUTER

33D-23136-00-00

$581.99

29

RING, SNAP

17D-23153-00-00

$4.63

30

INNER TUBE COMP.1

BNK-23110-00-00

Unavailable

31

PISTON, FRONT FORK

5XE-23171-L0-00

$27.99

32

METAL, SLIDE 1

5XE-23125-L0-00

$25.99

33

WASHER, OIL SEAL

5XC-23146-10-00

$14.49

34

OIL SEAL

B29-23145-00-00

$22.99

35

RING, SNAP

5XE-23153-L0-00

$7.99

36

SCRAPER

B29-4381D-00-00

$17.99

37

SEAL, DUST

BHR-23144-00-00

$22.99

38

CYLINDER COMP., FR

BXB-23170-00-00

$640.99

39

O-RING

1C3-23147-L1-00

$3.48

40

SEAT, SPRING UPPER

BR9-23142-01-00

$58.99

41

VALVE COMP.

BXB-2316A-00-00

$348.99

42

O-RING

1C3-23188-L2-00

Unavailable

43

O-RING

1C3-23188-P0-00

Unavailable

44

O-RING

1AE-23147-01-00

Unavailable

45

AIR VALVE COMP.

1C3-23190-L1-00

Unavailable

46

O-RING

1C3-23188-R1-00

Unavailable

47

SPRING, FRONT FORK (K=4.6)

BR9-23141-30-00

Unavailable

48

BOLT, CAP

5XC-23111-01-00

Unavailable

49

GASKET

2HH-23158-L0-00

Unavailable

50

GASKET

276-23114-02-00

Unavailable

51

CAP

BHR-2319W-00-00

Unavailable

52

SCREW

1MC-23119-10-00

Unavailable

53

UNDER BRACKET COMP.

B7R-23340-00-00

Unavailable

54

BOLT, FLANGE DEEP RECESS

95E34-08035-00

Unavailable

55

PROTECTOR 2

17D-2315J-J0-00

Unavailable

56

PROTECTOR 1

B7R-2315H-20-00

Unavailable

57

BOLT

90109-06232-00

Unavailable

58

CLAMP

B7R-23466-00-00

Unavailable

59

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

Unavailable

60

BRACKET 1

B7R-83955-00-00

Unavailable

61

PIN, DOWEL

93603-07073-00

Unavailable

62

BOLT, FLANGE DEEP RECESS

95E34-08045-00

Unavailable

63

BOLT, FLANGE DEEP RECESS

95E34-08035-00

Unavailable

64

FORK SEAL KIT (ONE FORK)

BHR-W003B-00-00

Unavailable
