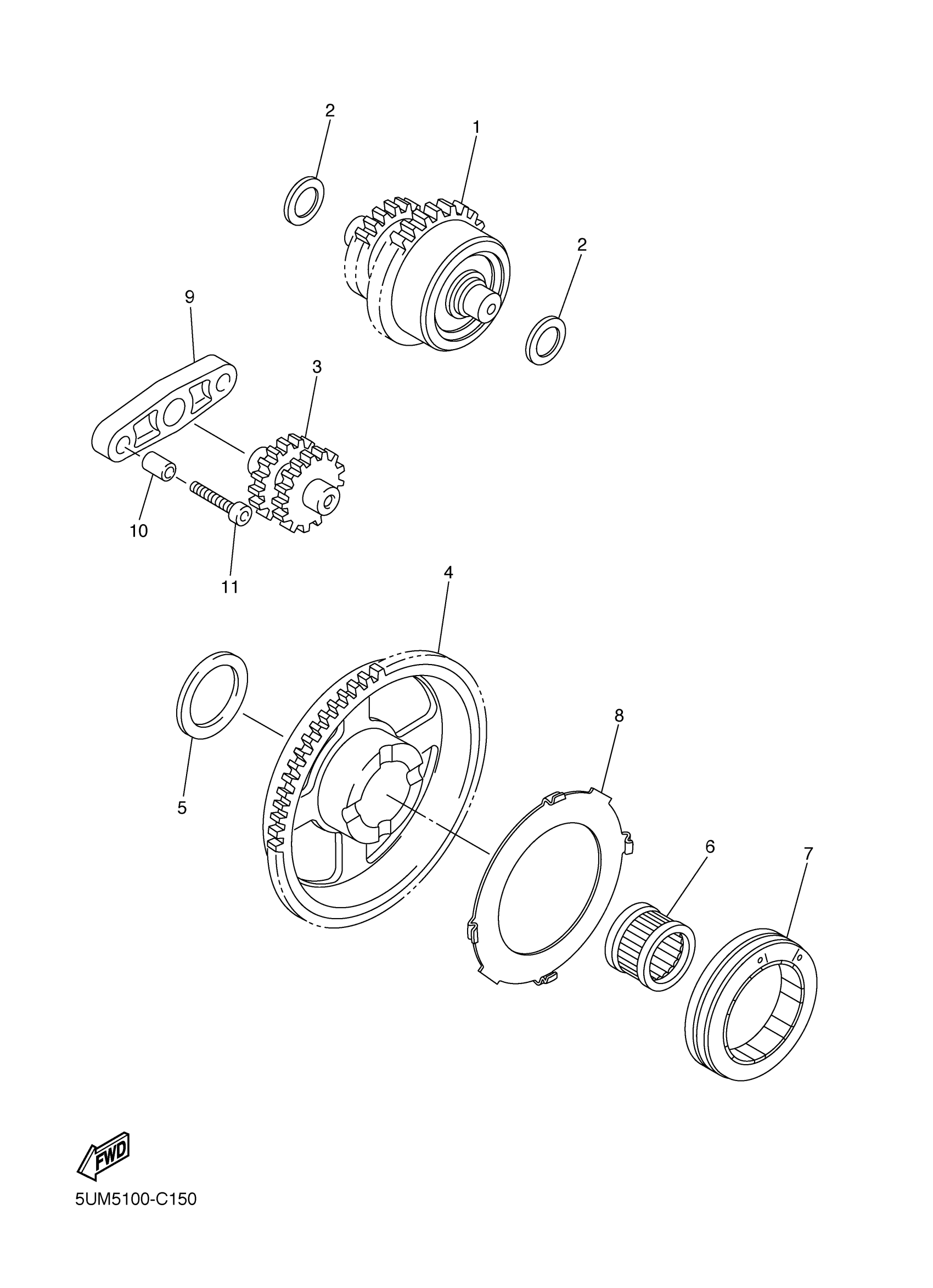

Yamaha WR250FS (WR250F) 5UM5 2004 STARTER CLUTCH Diagram

#

Description

Price

1

DAMPER ASSY

5UM-15560-10-00

Unavailable

2

WASHER PLATE (3L6)

90201-08759-00

$3.23

3

GEAR, IDLER 2

5UM-15517-00-00

Unavailable

4

GEAR 3

5UM-15515-10-00

Unavailable

5

WASHER, PLATE (3Y1)

90201-20792-00

$9.49

6

BEARING

93310-42057-00

Unavailable

7

STARTER CLUTCH ASSY

5UM-15570-00-00

$126.99

8

PLATE, STARTER CLUTCH ASSY

5VY-15586-00-00

Unavailable

9

PLATE, IDLE GEAR

5UM-15532-00-00

Unavailable

10

PIN, DOWEL

99530-08012-00

Unavailable

11

BOLT,SOCKET

91317-06025-00

$5.60
