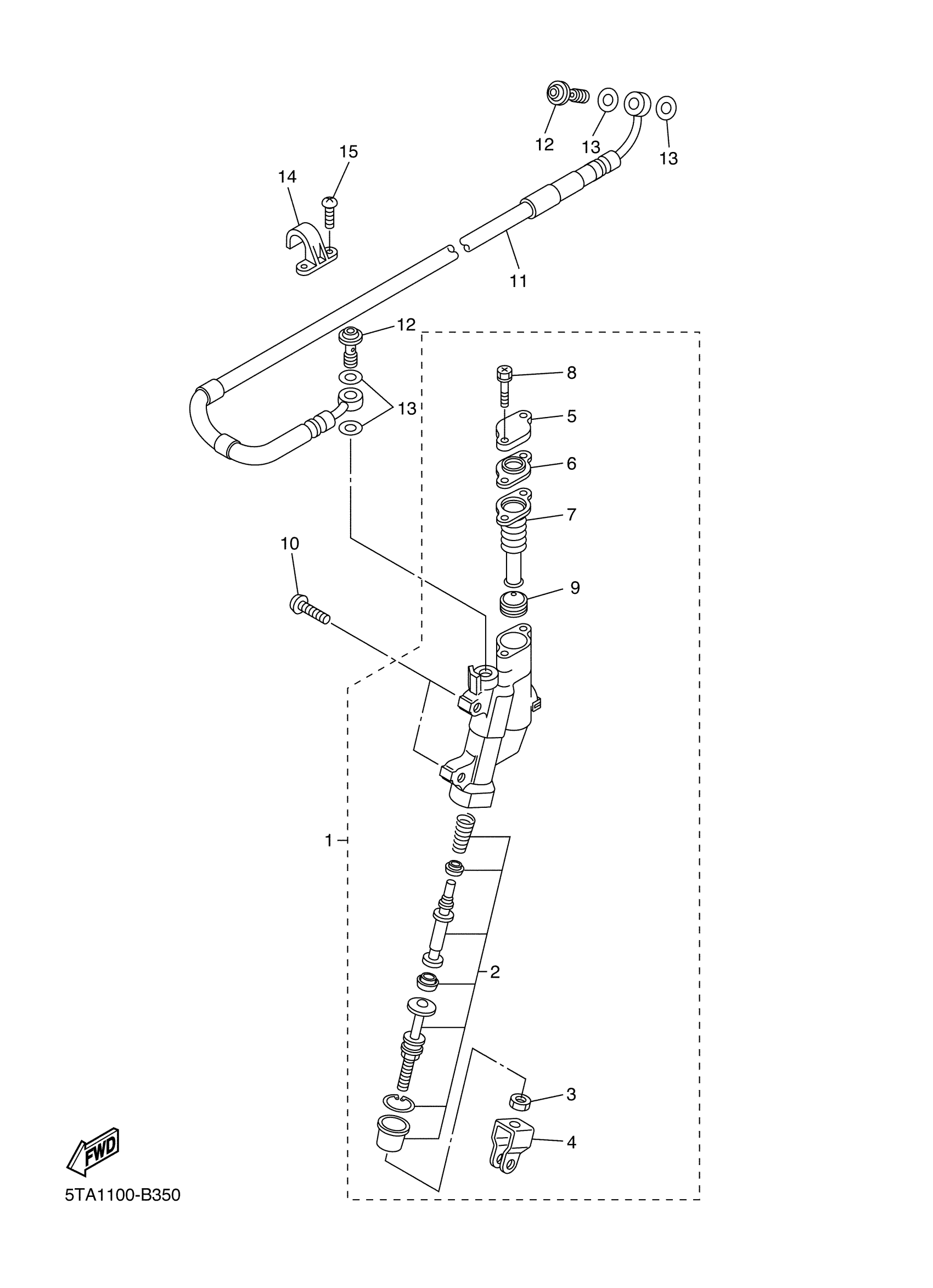

Yamaha WR250FS (WR250F) 5UM5 2004 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDER ASSY.

5UN-2583V-00-00

Unavailable

2

CYLINDER KIT, MASTER

5UN-W0042-50-00

$89.99

3

NUT

5UN-27218-00-00

$4.89

4

JOINT

5UN-27222-00-00

$17.49

5

CAP, RESERVOIR

5UN-25852-50-00

$17.49

6

PLATE, DIAPHRAGM

5UN-2585B-00-00

$7.99

7

DIAPHRAGM, RESERVOIR

5UN-25854-00-00

$14.49

8

BOLT

5UN-27217-00-00

$5.49

9

SEPARATOR ASSY

5CG-25715-00-00

$13.49

10

BOLT

90111-06029-00

$5.60

11

HOSE, BRAKE 2

5UN-25873-00-00

Unavailable

12

BOLT, UNION

90401-10172-00

$5.60

13

WASHER, PLATE(481)

90201-10118-00

Unavailable

14

HOLDER, BRAKE HOSE 2

2VM-25876-00-00

$18.49

15

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25
