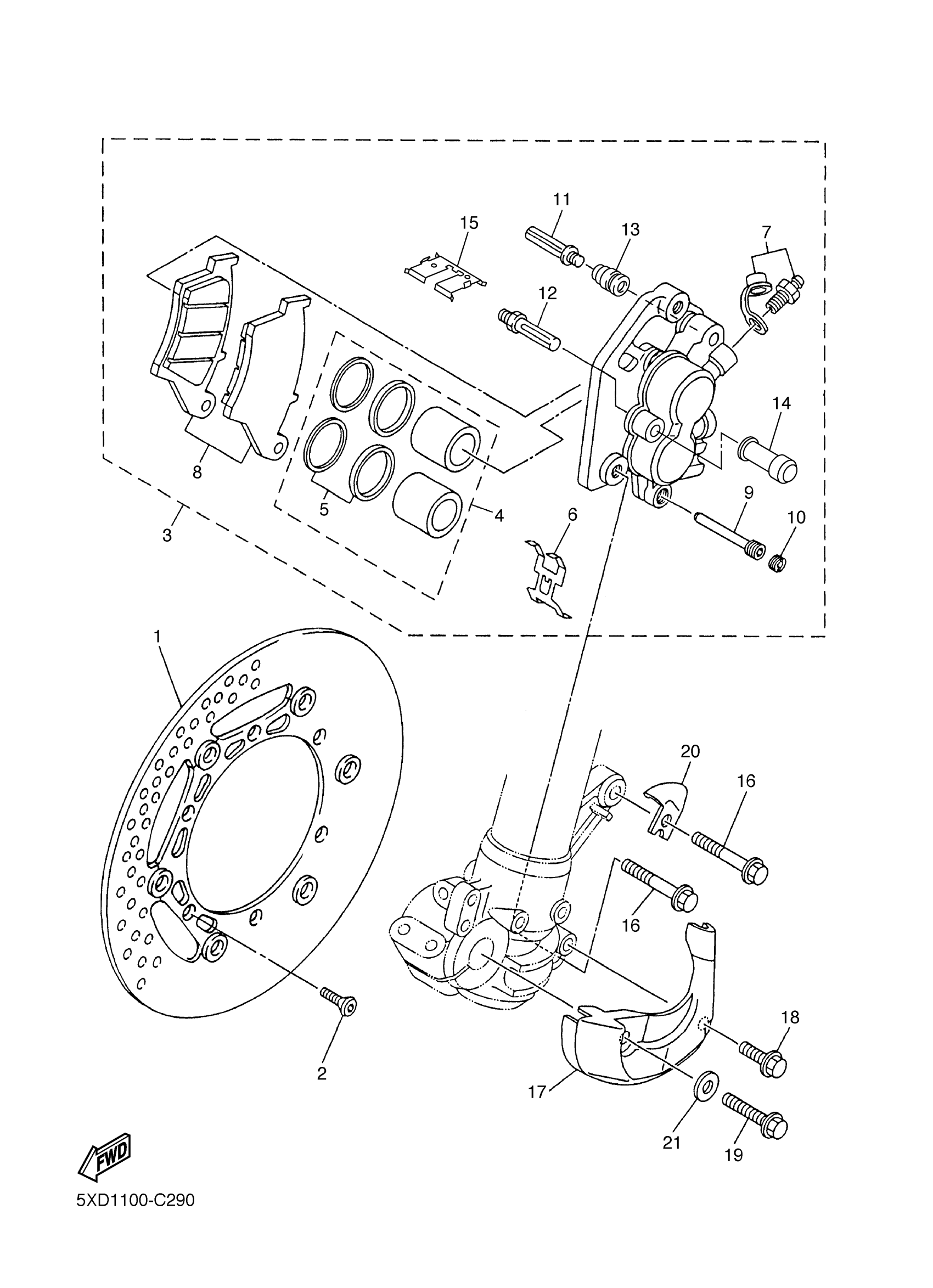

Yamaha WR250FS (WR250F) 5UM5 2004 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISC BRAKE ASSY

5MV-2581T-00-00

$197.65

2

SCREW, COUNTERSUNK

90151-06080-00

$1.21

3

CALIPER ASSY (LEFT)

5UN-2580T-00-00

Unavailable

4

PISTON ASSY, CALIPER

5UN-W0057-00-00

$60.58

5

CALIPER SEAL KIT

3JD-25803-00-00

$17.39

6

SUPPORT, PAD

5DH-25919-00-00

$16.55

7

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

8

BRAKE PAD KIT

5MV-W0045-01-00

$35.12

9

PIN, PAD

5DH-25933-00-00

$16.24

10

PLUG

5DH-25916-00-00

$6.94

11

BOLT

3SP-25926-51-00

$10.74

12

BOLT

3SP-25914-51-00

$3.67

13

BOOT, CALIPER

3JD-25917-00-00

$7.03

14

BOOT 2

1UY-25937-51-00

$11.48

15

RETAINER, CALIPER

5DH-25849-00-00

$9.09

16

BOLT, FLANGE

95817-08035-00

Unavailable

17

COVER, HOSE

5DH-2314E-00-00

Unavailable

18

BOLT, FLANGE

95817-06012-00

Unavailable

19

BOLT, SMALL FLANGE

95027-08020-00

Unavailable

20

HOLDER, BRAKE HOSE 1

5DH-25875-00-00

Unavailable

21

WASHER(6TC)

92907-08200-00

Unavailable
