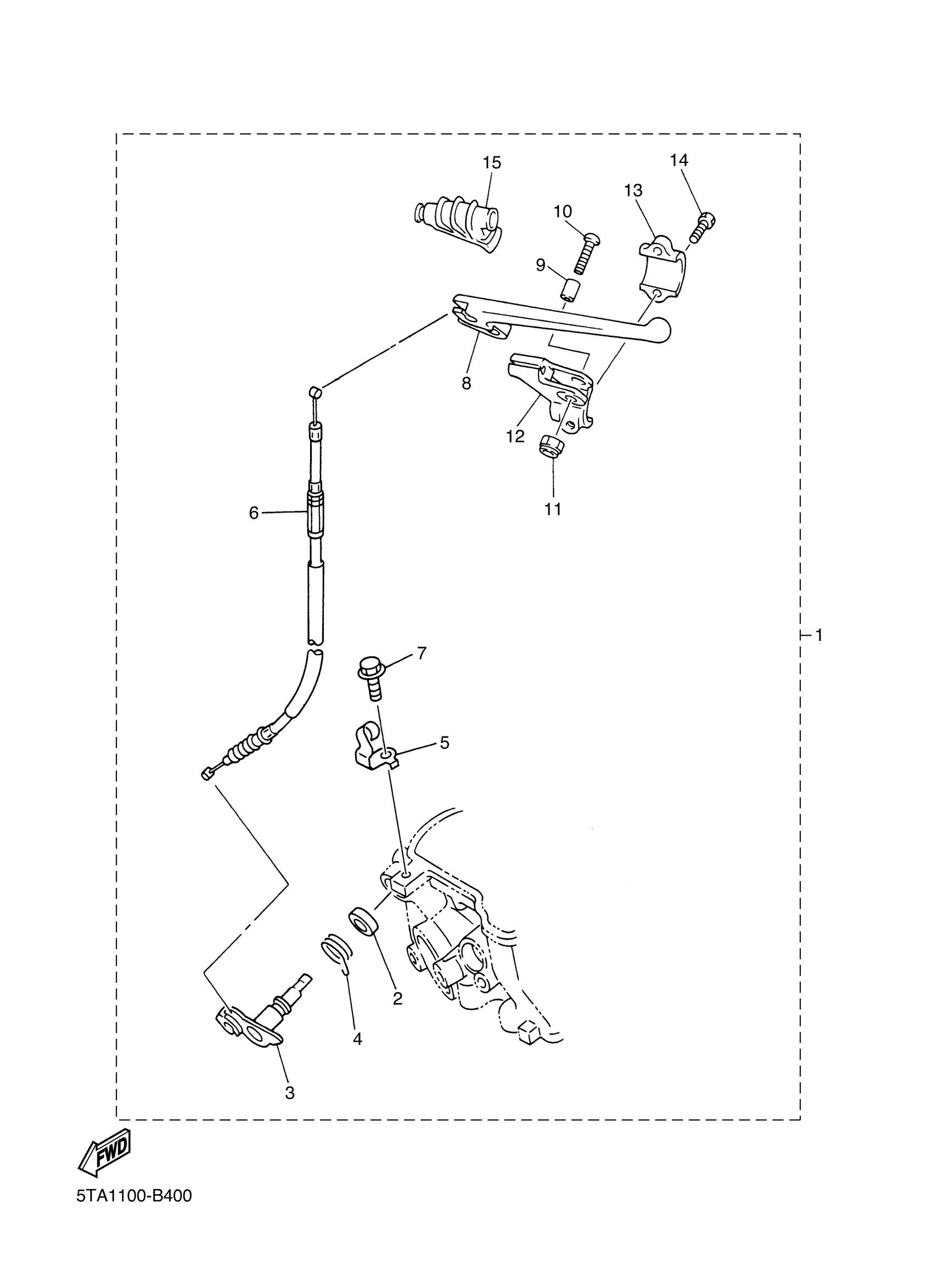

Yamaha WR250FS (WR250F) 5UM5 2004 ALTERNATE DECOMPRESSION KIT Diagram

DECOMPRESSION KIT

5TA-W1228-00-00

Unavailable

OIL SEAL (4G0)

93102-12224-00

$10.49

DECOMPRESSION ASSY

5BE-12280-10-00

Unavailable

SPRING, TORSION

90508-162B2-00

$3.50

. BRACKET, DECOMPRESSION

5NL-12283-00-00

Unavailable

CABLE, DECOMPRESSION

5BE-12292-10-00

Unavailable

BOLT, FLANGE

95817-06014-00

Unavailable

LEVER, DECOMPRESSION

583-83981-00-00

$25.99

COLLAR, LEVER 1

5BE-83913-00-00

$4.84

SCREW, PAN HEAD

98517-05020-00

$4.25

NUT, U

95617-05100-00

$9.49

HOLDER, LEVER UPPER 1

5BE-82912-00-00

$47.99

H0LDER, LEVER L0WER 1

38V-82913-00-00

$23.99

BOLT(4TW)

97017-05016-00

$3.29

COVER, DECOMPRESSION WIRE

583-26352-00-00

$21.99
