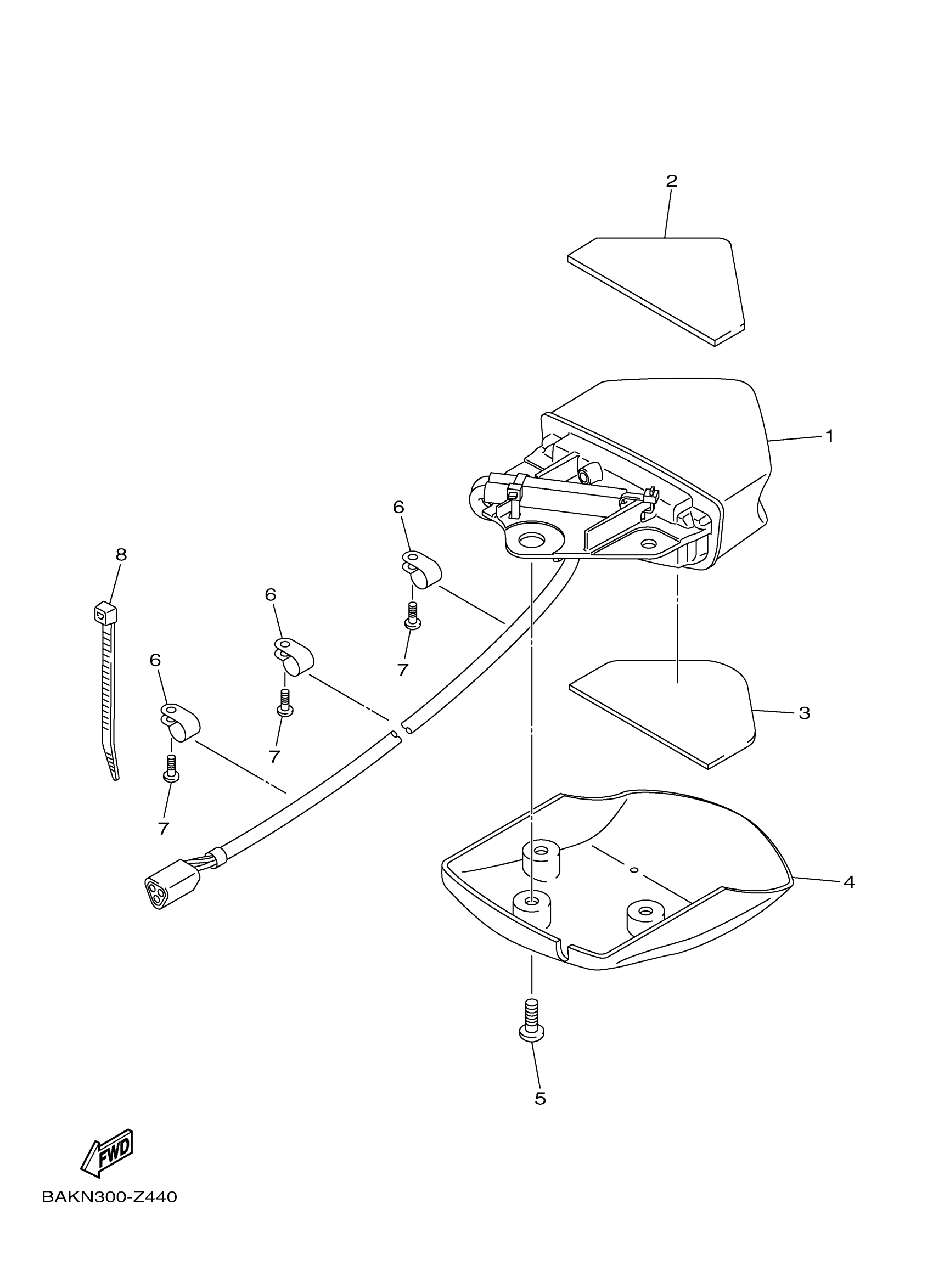

Yamaha WR250FR1 (WR250F) BAKL 2024 TAILLIGHT Diagram

#

Description

Price

1

TAILLIGHT UNIT ASSY

BNK-84710-00-00

$222.82

2

DAMPER, TAIL 1

5UM-84736-E0-00

$3.85

3

DAMPER, TAIL 2

5UM-84737-E0-00

$3.52

4

COVER, TAILLIGHT

B7R-84716-00-00

$15.55

5

SCREW, TAPPING

97702-50016-00

$1.85

6

CLAMP

90464-11M18-00

$4.89

7

SCREW, TAPPING

97702-40010-00

$2.30

8

BAND

1UA-82591-00-00

$3.85
