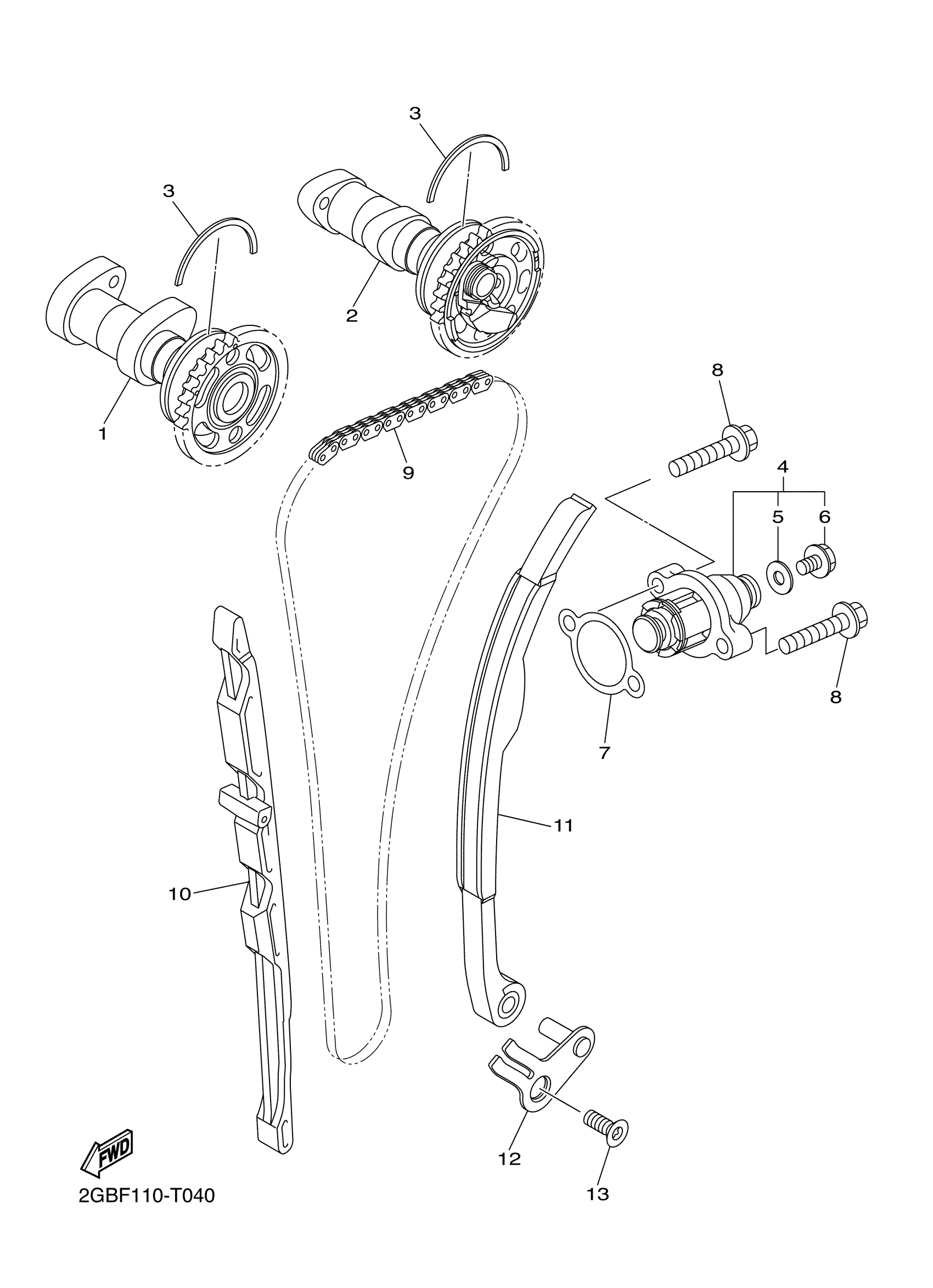

Yamaha WR250FR1 (WR250F) BAKL 2024 CAMSHAFT & CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

B7B-12170-10-00

$240.98

2

CAMSHAFT ASSY 2

B7B-12180-10-00

$246.33

3

CIRCLIP

93440-41178-00

$3.18

4

TENSIONER ASSY, CAM CHAIN

B7B-12210-11-00

$118.55

5

GASKET

5SL-12214-00-00

$5.96

6

BOLT

5EL-12228-00-00

$2.52

7

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

8

BOLT, FLANGE DEEP RECESS

95E32-06025-00

$0.47

9

CHAIN

94591-77114-00

$28.11

10

DAMPER, CHAIN 1

1SM-12251-00-00

$23.26

11

DAMPER, CHAIN 2

B7B-12252-00-00

$147.85

12

PLATE, GUIDE STOPPER 1

1SL-12233-00-00

$25.54

13

SCREW, COUNTERSUNK

90151-06023-00

$6.09
