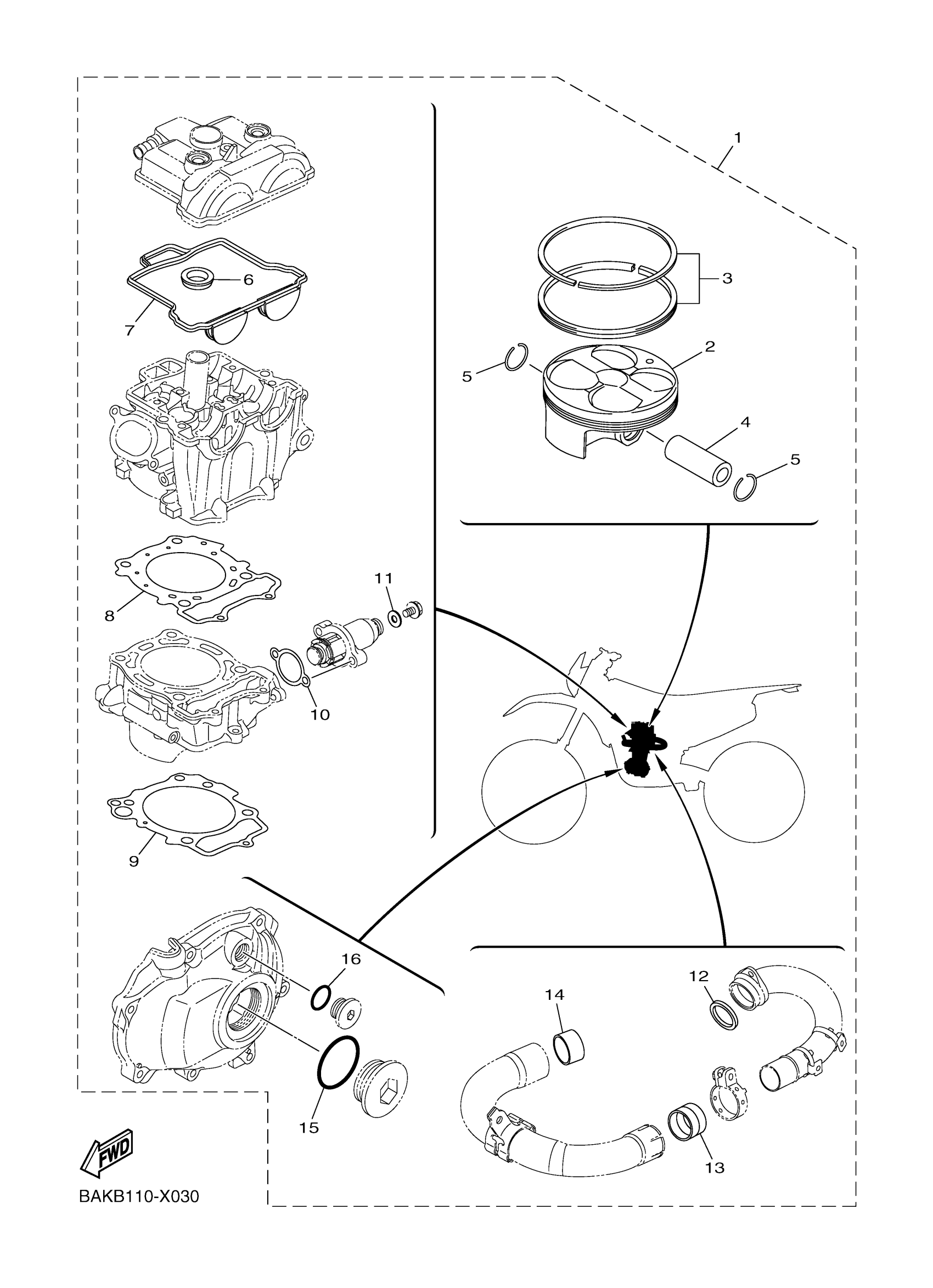

Yamaha WR250FR1 (WR250F) BAKL 2024 4 PISTON REBUILT KIT Diagram

Description

Price

PISTON REBUILT KIT

BAJ-WB033-00-00

$173.38

PISTON (STD)

B7B-11631-00-00

$86.68

PISTON RING SET (STD)

1SM-11603-01-00

$33.34

PIN, PISTON

1SM-11633-30-00

$30.86

CIRCLIP(1AR)

93450-17129-00

$2.72

GASKET, HEAD COVER 2

1SM-11194-00-00

$13.33

GASKET, HEAD COVER 1

1SM-11193-00-00

$25.18

GASKET, CYLINDER HEAD 1

B7B-11181-00-00

$25.93

GASKET, CYLINDER

B7B-11351-00-00

$11.48

GASKET, TENSIONER CASE

4FM-12213-00-00

$7.05

GASKET

5SL-12214-00-00

$5.96

GASKET, EXHAUST PIPE

5NL-14613-00-00

$11.48

GASKET, SILENCER

19D-14755-00-00

$12.91

GASKET, MUFFLER

1SL-14714-00-00

$23.98

O-RING

93210-35804-00

$0.46

O-RING (2H9)

93210-14369-00

Unavailable
