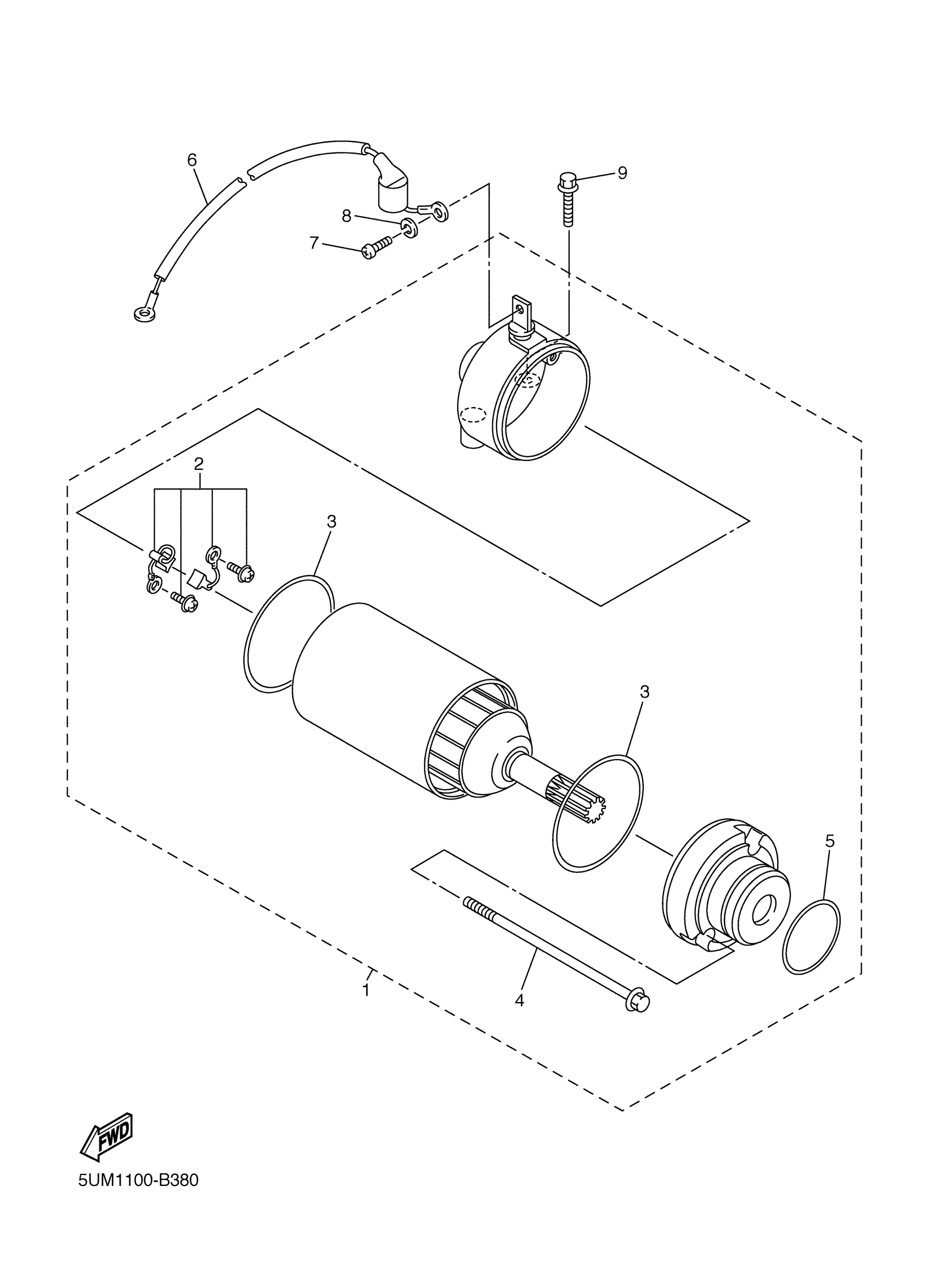

Yamaha WR250FR (WR250F) 5UM1 2003 STARTING MOTOR Diagram

#

Description
Price

1

MOTOR ASSY

5UM-81890-11-00

Unavailable

2

BRUSH SET

5UM-81801-10-00

$19.97

3

GASKET

5UM-81861-00-00

Unavailable

4

BOLT 2

5UM-81828-10-00

Unavailable

5

O-RING(1RL)

93210-25711-00

$5.59

6

CORD COMP.

5UM-8183G-00-00

Unavailable

7

GASKET, EXHAUST

98507-05008-00

$2.52

8

WASHER(3SX)

92907-05100-00

$5.76

9

BOLT,SOCKET

91317-06025-00

$1.91
