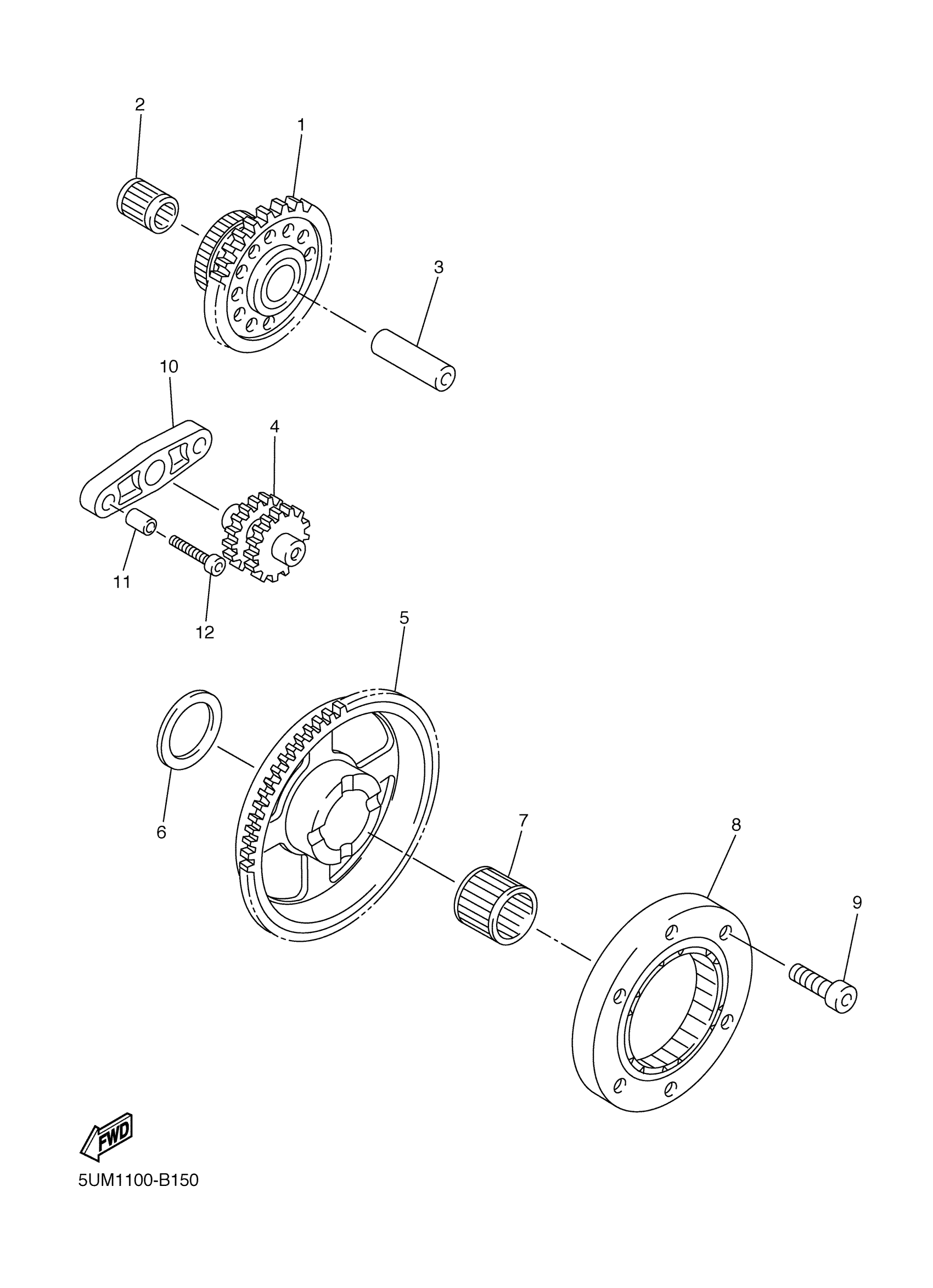

Yamaha WR250FR (WR250F) 5UM1 2003 STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, IDLER 1

5UM-15512-00-00

Unavailable

2

BEARING, CYLINDRICAL(1VJ)

93310-212R6-00

$35.99

3

SHAFT 1

4GY-15521-00-00

$21.99

4

GEAR, IDLER 2

5UM-15517-00-00

Unavailable

5

GEAR 3

5UM-15515-10-00

Unavailable

6

WASHER, PLATE

90201-20014-00

Unavailable

7

BEARING

93310-42038-00

Unavailable

8

STARTER ONE-WAY ASSY

5TJ-15590-00-00

$225.99

9

BOLT,SOCKET

91317-06014-00

$9.49

10

PLATE, IDLE GEAR

5UM-15532-00-00

Unavailable

11

PIN, DOWEL

99530-08012-00

Unavailable

12

BOLT,SOCKET

91317-06025-00

$5.60
